FANUC Series 16i /18i Additional Manual Page 31

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
31/190
• Coordinate system rotation
Note
When both scaling and coordinate system rotation are specified, the coordinate
system is rotated after scaling is applied. In this case, scaling is effective for the
center of rotation.
Example) O0001 ;
G90 G00 X20. Y10. ;
G05 P10000 ;
G01 X50. F500 ;
Y30. ;
X20. ;
Y10. ;
G51 X20. Y10. I3000 J2000;
G01 X50. F500 ;
Y30. ;
X20. ;
Y10. ;
G17 G68 X35. Y20. R3000 ;
G01 X50. F500 ;
Y30. ;
X20. ;
Y10. ;
G69 ;
G50 ;
G05 P0 ;
M30 ;
• Other notes
Please refer to notes in clause 2.15.4.

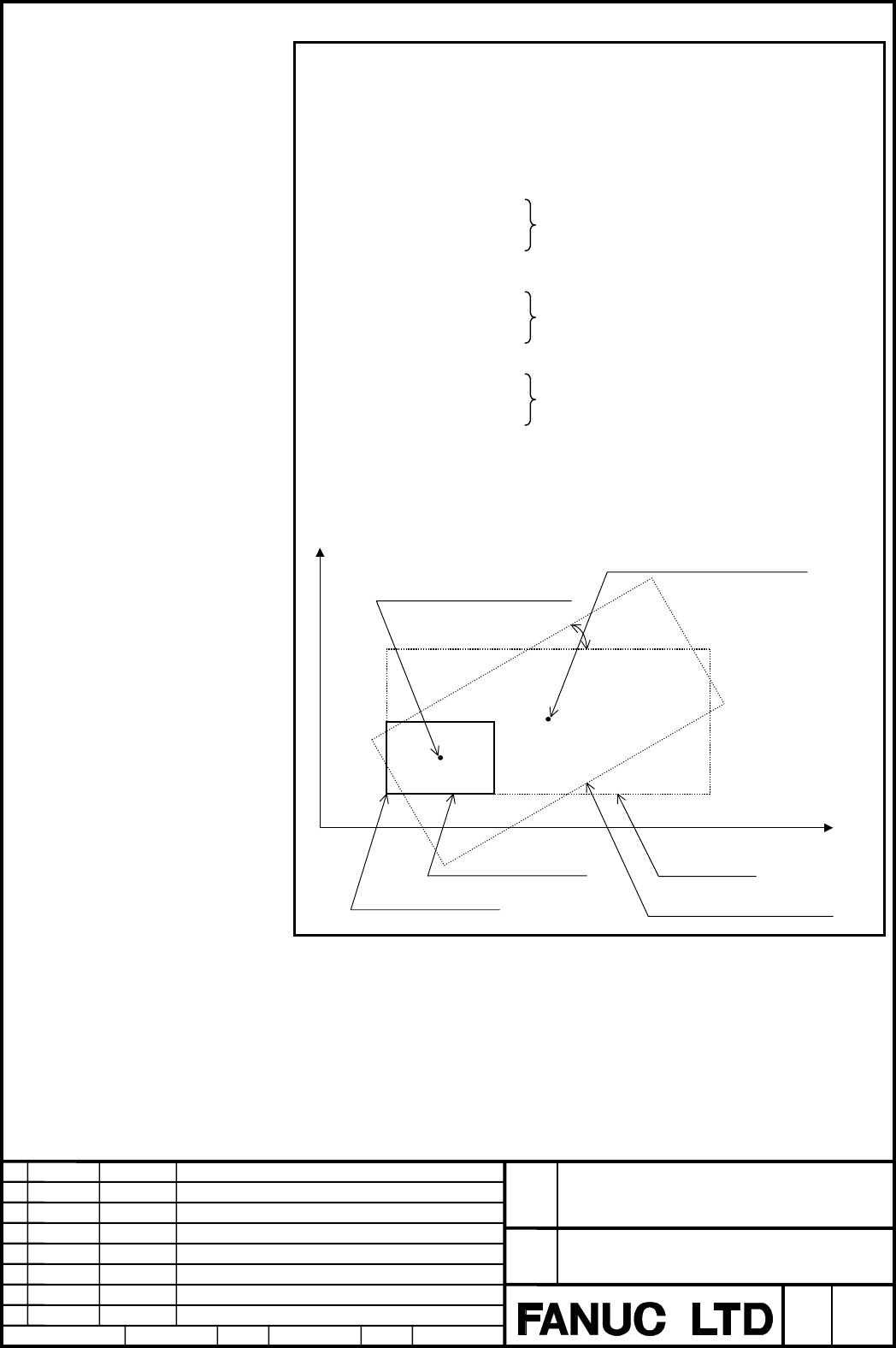

(a)
Y
X
O
Original figure specified in
the program
Center of rotation before scaling
(a)
Center of rotation after scaling
(c)
Figure after the coordinate
system is rotated
Center of scaling
(b)
Scaled figure
30˚
(b)
(c)
