FANUC Series 16i /18i Additional Manual Page 97

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
97/190
4) When, as shown in Fig.2.21.3 (f) the diameter of an arc (R in the figure)
is less than the value set in parameter No. 19535, cutting point
compensation is not applied simultaneously with circular interpolation

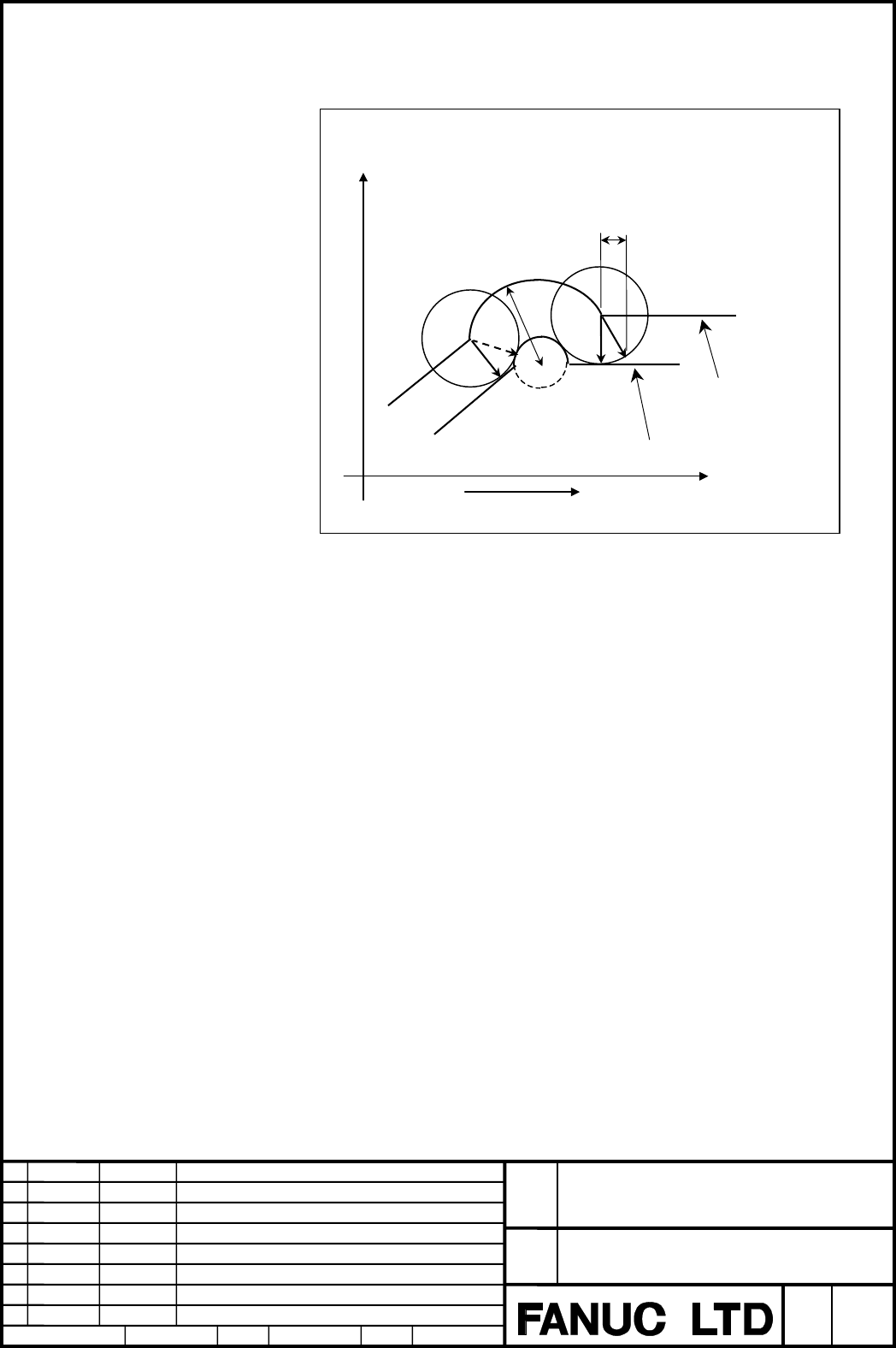

Fig.2.21.3 (f) When the Diameter of an Arc Is Less Than the
Parameter Value
Z-axis
C-axis on the
cylindrical surface
Y-axis
C1
C2
V
Tool center path
Programmed path
V : Cutting point compensation between blocks N2 and N3
C1 : Cutting surface of blocks N1 and N2
C2 : Cutting surface of block N3
C1
N1
N2
N3
L1
S2
S1
R
