FANUC Series 16i /18i Additional Manual Page 46

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
46/190

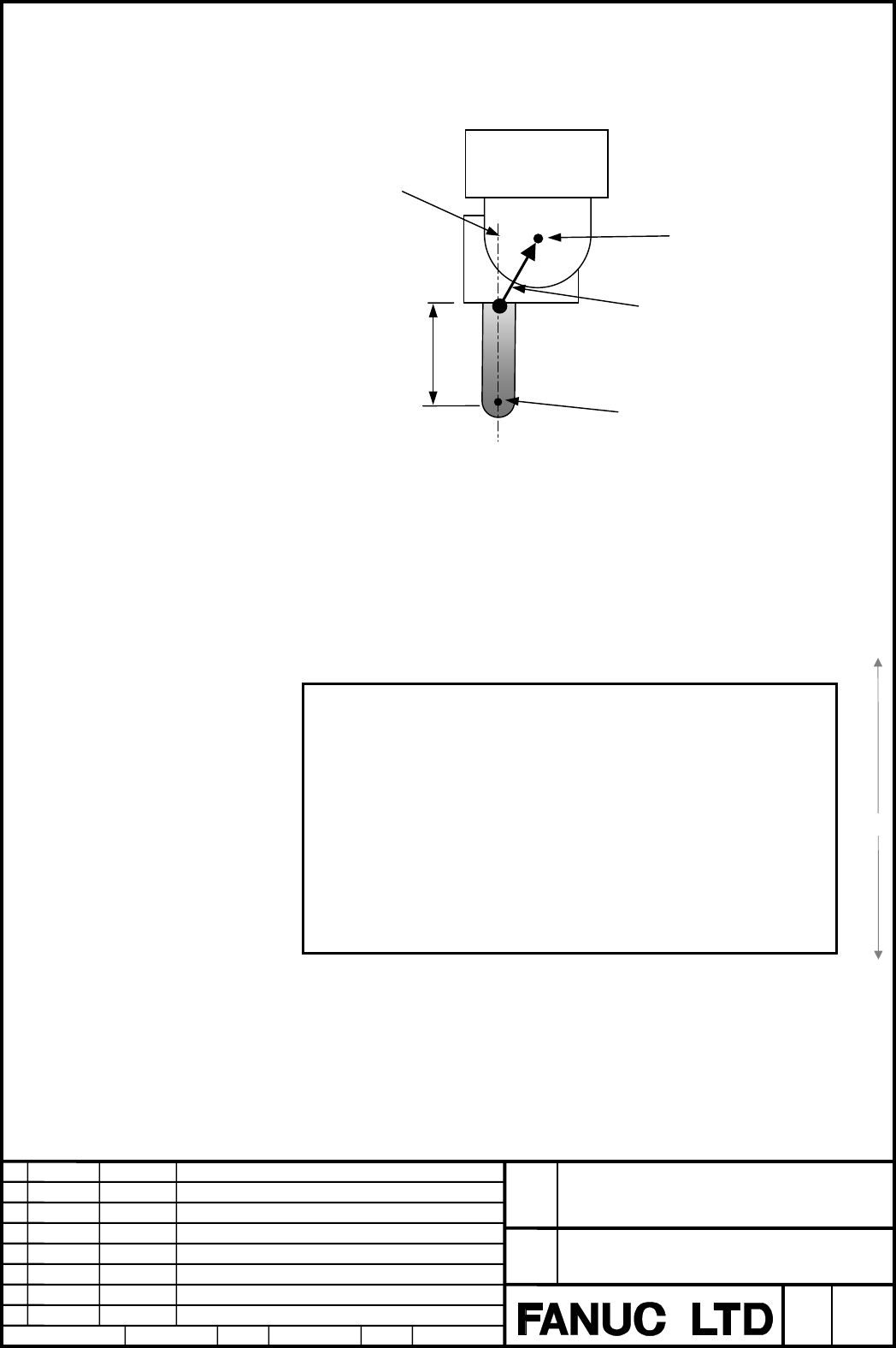

• Spindle center compensation
The gap of the spindle rotation centerline and the tool pivot can be corrected by
setting the spindle center compensation vector in the parameter (No.19709—
No.19711) when there is no pivot in the spindle rotation on center.
• The command permitted in the tool center point control mode
< G code >
G01
G02
G03
G00 Please set the parameter to become linear interpolation type
positioning and acceleration/deceleration before interpolation are
effective.
G49 End of the tool center point control
For positioning (G00), observe the following cautions.
Note
1 Be sure to set the following parameters.
1) Parameter LRP(No.1401#1)=1 : Linear rapid traverse
2) Parameter FRP(No.19501#5)=1 : Acceleration/deceleration
before interpolation is used for rapid traverse.
3) Parameter No.1773 : Acceleration before interpolation for rapid
traverse. (When parameter No.1773 is set to 0, parameter
No.1620 is effective.)
4) Parameter No.1774 : Change time for bell-shaped acceleration
before interpolation for rapid traverse.
(When parameter No.1774 is set to 0, parameter No.1621 is
effective.)
2 If the above settings are not made, or look-ahead
acceleration/deceleration before interpolation is not in effect, an axis
may move faster than the rapid traverse rate.
Tool pivot
(Control point)
Tool center point
Tool length
(= Tool holder offset
+ tool length offset amount)
Spindle rotation
centerline
Spindle center compensation
vector
(4)
(4)
(4)
