FANUC Series 16i /18i Additional Manual Page 43

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
43/190
• Operation of N3 when WKP of parameter No.19696#5 is ‘1’
It is controlled so that relative tool path of the tool center point and workpiece
may become straight line when WKP of parameter No.19696#5 is ‘1’ in N3 block.
• Move command and feedrate in the tool center point control mode
Please write the move command on the programming coordinate system in G43.4
mode. Please instruct in the position in each block end point about rotary axes.
Moreover, please instruct the feedrate in the tangential velocity (relative velocity
of work and the tool) on the programming coordinate system by F code.
The axes move by the tool offset amount when G43.4 modes are begun. At this
time, we will recommend making the tool point turned in a negative direction of Z
axis and going at B axis position of the instruction in G43.4 because it will be
comprehensible that axes (C axis) do not operate.

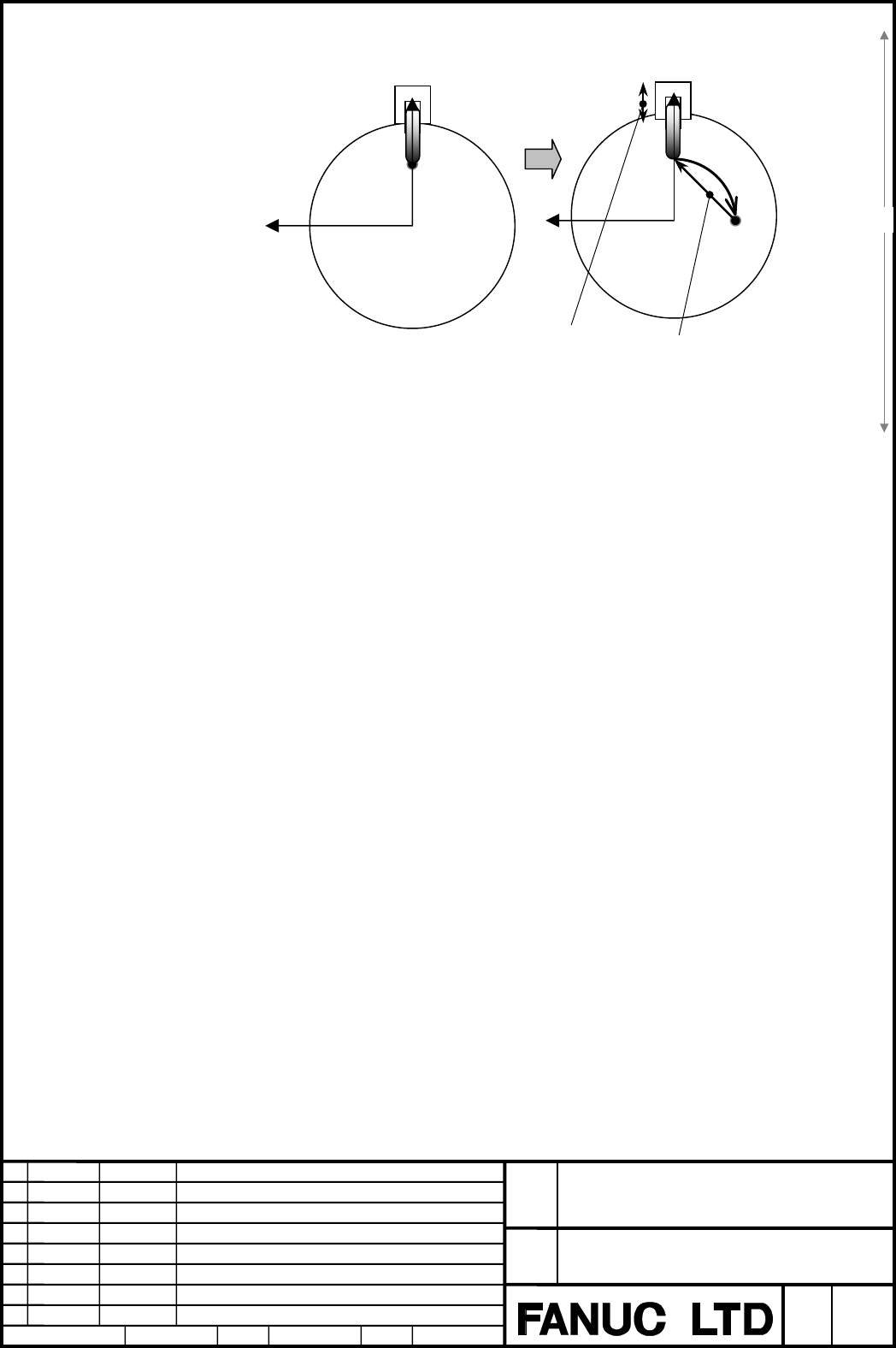

Y axis
X axis
X200.
Y axis
C axis
X axis
X200.
Relative tool path of tool center
point and workpiece
Path of tool head
(3)
