2.16.4 Example
The each side of the equilateral triangle of 100mm in the length of about one is
cut with B axis angle : -60 degree, -45 ∼ -30 degree, and –30 degree. The X axis is
assumed to be a radius programming.
< Program >
The program example when the coordinate system fixed to the table is a
programming coordinate system is shown. The same tool path is obtained when
instructing as shown while it is () when the workpiece coordinate system is a
programming coordinate system (Parameter No.19696#5 (WKP) =1).
N001 T0000 ; Cancel the tool position offset.
N002 G54 ; Selecting a workpiece coordinate
system.
N003 G90 X50.0 Y-70.0 Z300.0 B-90.0 C0.0 ; Goto start point.
Tool direction becomes -Z at B-90
degree.
N010 G05 P10000 ; AI HPCC / AI NANO HPCC start.
N020 G01 G43.4 H01 ; Tool center point control start.
N021 Z20.0 ; Goto approach position.
N021 X28.868 Y-50.0 Z10.0 B-60.0 ; Height of cutting surface in Z axis
direction is 10.000 mm.
N031 Y50.0 ;
N032 B-45.0 C120.0 ;
(N032 Y-50.0 B-45.0 C120.0 ;)
N033 X-57.735 Y0.0 B-30.0 C180.0 ; X and Y axis moves with B and C axis
(N033 X57.735 Y0.0 B-30.0 C180.0 ;) movement.
N034 B-30.0 C240.0 ;
(N034 X28.868 Y-50.0 B-30.0 C240.0 ;)
N035 X28.868 Y-50.0 ;
(N035 Y-50.0 ;)
N041 X50.0 Y-70.0 Z20.0 B-90.0 C360.0 ; X,Y,and Z axes move to approach
position.
B and C axes move to start position.
N050 G49 ; Tool center point control cancel.
N51 Z300.0 ; Z axis moves to start point.
N060 G05 P0 ; AI HPCC / AI NANO HPCC cancel.

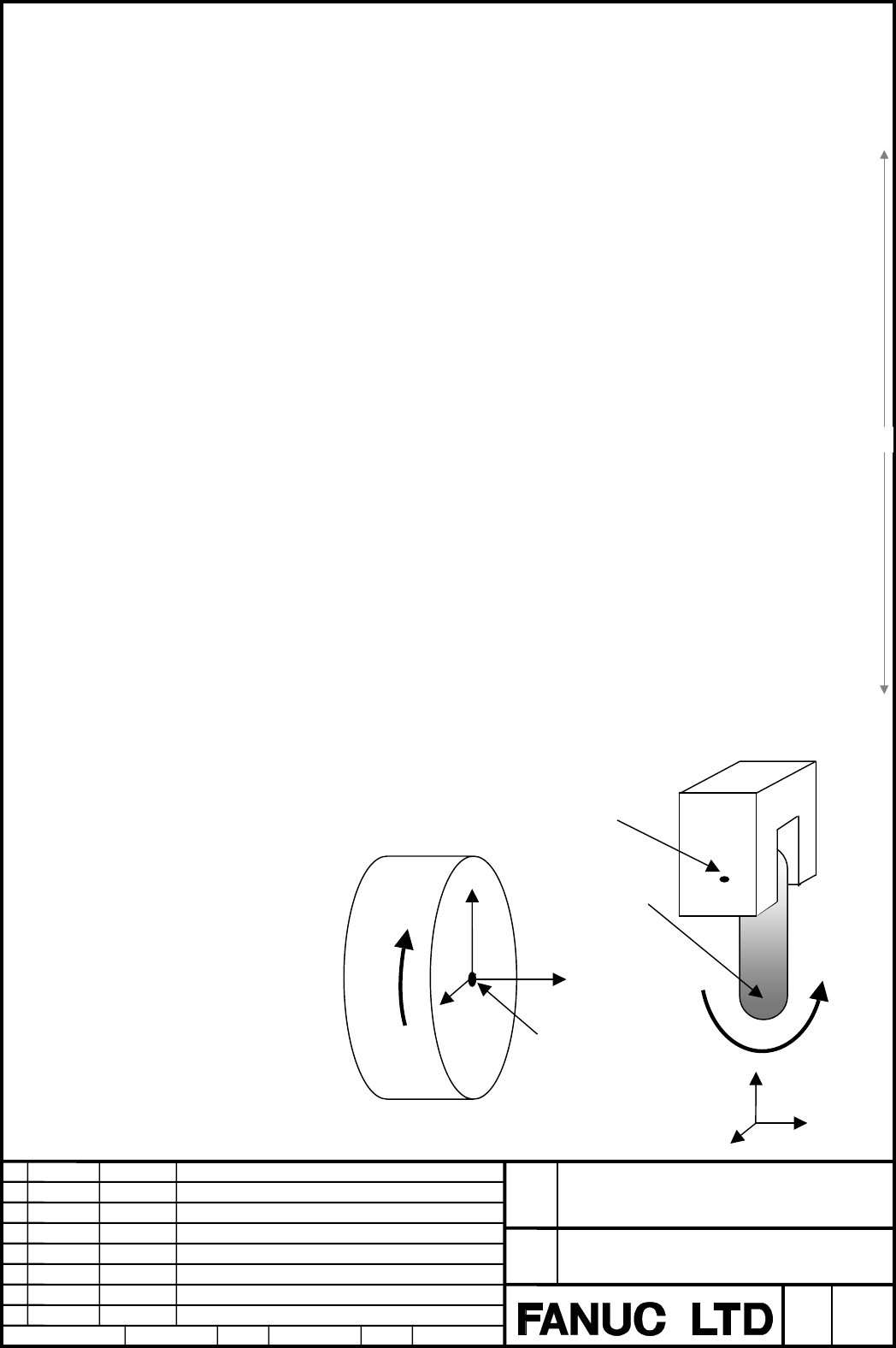

< Example of machine configuration >
C axis
C axis rotation center
G54 Workpiece coordinate system
X
Y
Z
Z axis
Y axis
X axis
B axis
B axis pivot
Tool center point
