Series 15i/150i - Model A Connection manual (Hardware) Page 117

Connection manual (Hardware)
6. CONNECTION OF I/O UNITS TO
MACHINE INTERFACE
B–63323EN/03
106

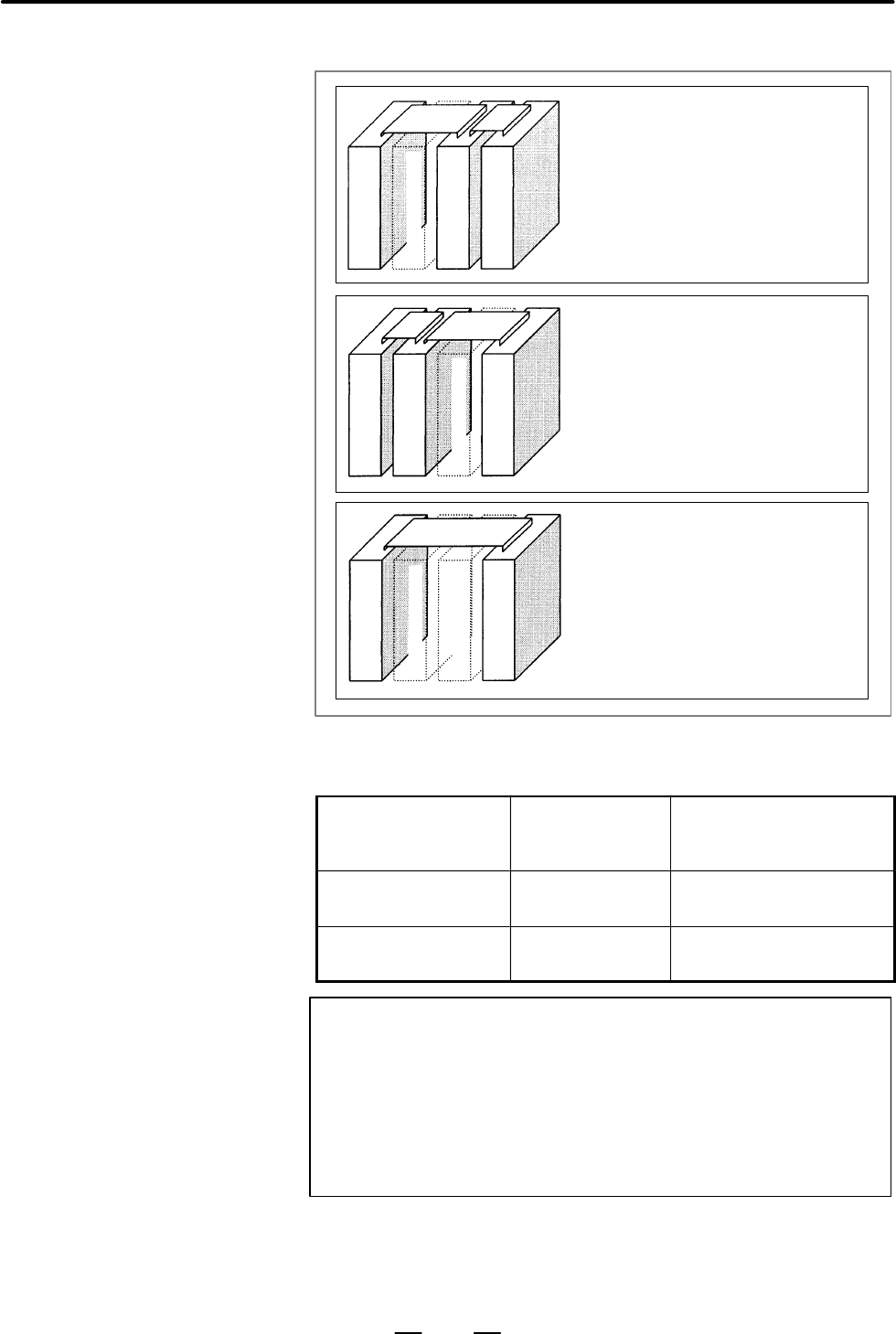

Examples of setting
Basic module
Expansion module 1
Expansion module 2
Expansion module 3
Basic module
Expansion module 1
Expansion module 2
Expansion module 3
Basic module
Expansion module 1
Expansion module 2
Expansion module 3
(When expansion module 1 is omitted)
On expansion module 2, set the rotary
switch to setting position 1. On expan-
sion module 3, keep the rotary switch
set to setting position 0.
(When expansion module 2 is omitted)
On expansion module 3, set the rotary
switch to setting position 1. On expan-
sion module 1, keep the rotary switch
set to setting position 0.
(When expansion modules 1 and 2
are omitted)
On expansion module 3, set the rotary
switch to setting position 2.
This setting capability is a newly added function. Depending on the type
of the module, this function is available as indicated below.
Expansion module B
(DO/DO = 24/16, without
manual pulse interface)
A03B–0815–C003 Starting from June, 1998
Expansion module C
(DO = 16, 2A output)
A03B–0815–C004 Starting from August, 1998
Expansion module D
(analog input)
A03B–0815–C005 Starting from August, 1998
NOTE
Expansion module A (DI/DO = 24/16, with manual pulse
interface) (A03B–0815–C002) is fitted with an additional
rotary switch as other types of modules are modified.
However, expansion module A is always mounted at the
location of expansion module 1, so that its factory setting
need not be changed.
