Series 15i/150i - Model A Connection manual (Hardware) Page 69

Connection manual (Hardware)
5. POWER SUPPLY UNIT CONNECTION
B–63323EN/03
58

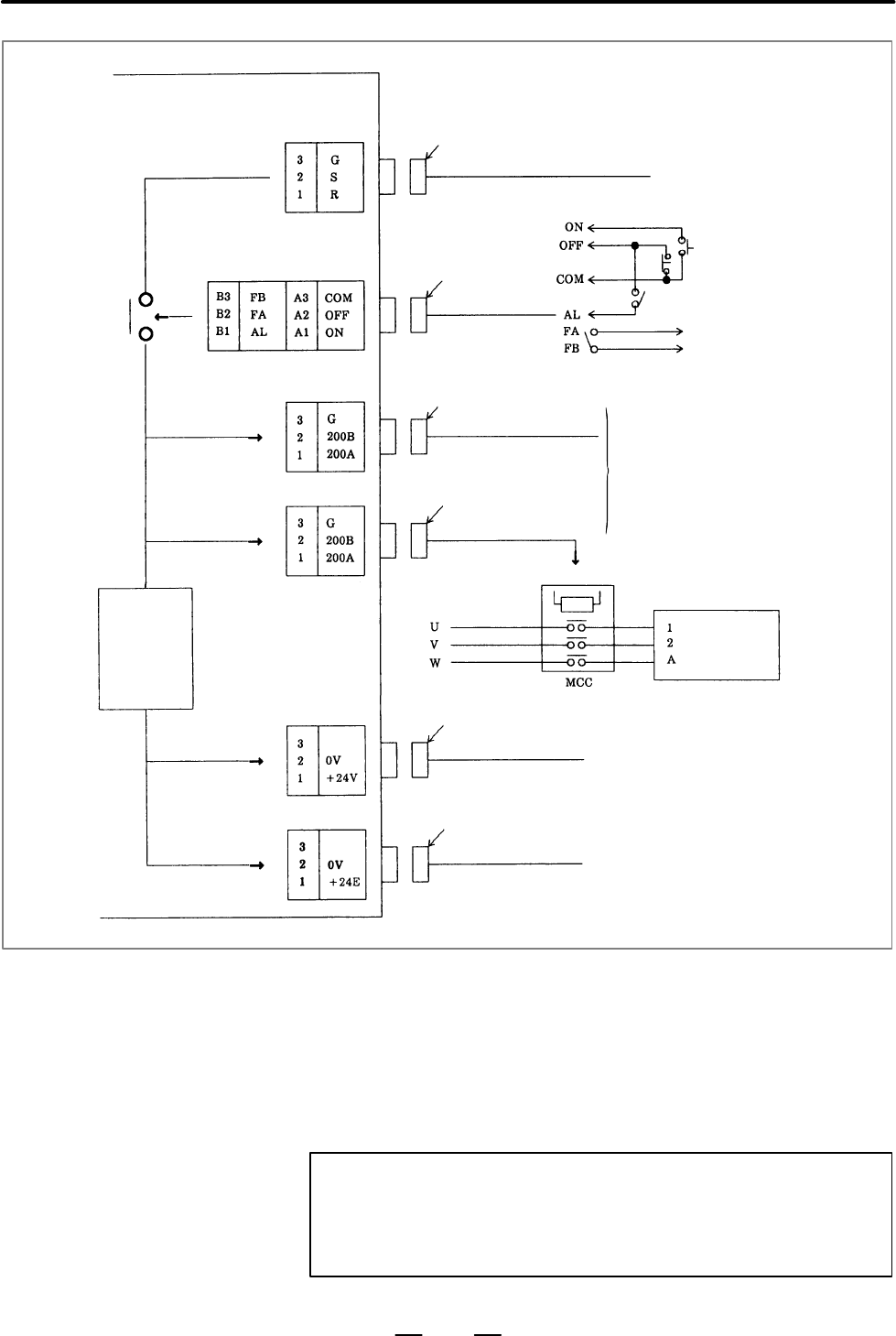

Power source unit
CP1 (200 to 240VAC input) Nihon AMP
1–178128–3 (housing)
1–175218–5 (contact)
Line contactor
CP4 (power source control)
Nihon AMP
2–178129–6 (housing)
1–175218–2 (contact)
Power ON button
Power OFF button
Alarm input
Alarm output
CP2 (AC output)
CP3 (AC output)
Nihon AMP
1–178128–3 (housing)
1–175218–5 (contact)
Nihon AMP
1–178128–3 (housing)
1–175218–5 (contact)
ON/OFF–controlled
200VAC output (max.
2.5A for CP2 and
CP3 combined)
Regulator
Servo amplifier
CP5 (+24V output)
CP6 (+24 E output)
Nihon AMP
2–178288–3 (housing)
1–175218–5 (contact)
Nihon AMP
1–178288–3 (housing)
1–175218–5 (contact)
LCD unit or hard disk unit
Connection unit,
operator’s panel connection unit, etc.
200 to 240VAC
1φ, 50Hz/60Hz
Example) Servo main power supply
(1) CP1
This is the AC input connector for the control unit. The AC
specifications are as follows:
R, S 200 to 240VAC+10% –15%, 1–phase, 50Hz/60Hz±3Hz
G Ground (class 3 grounding)
NOTE
The above AC input specifications may partially be limited
depending on the equipment that is powered from CP2 and
CP3.
