Series 15i/150i - Model A Connection manual (Hardware) Page 253

Connection manual (Hardware)
6. CONNECTION OF I/O UNITS TO
MACHINE INTERFACE
B–63323EN/03
242

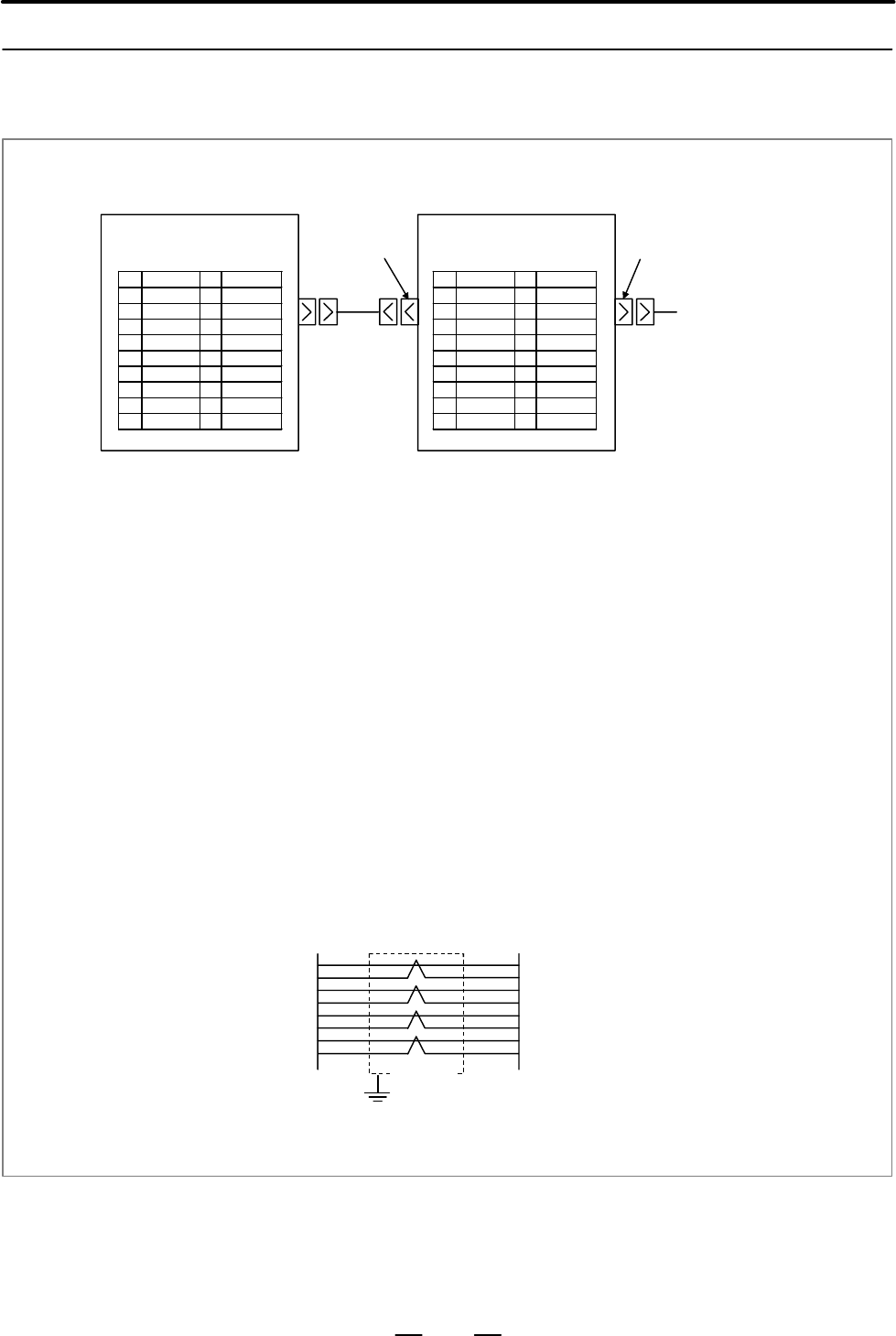

Control unit preceding slave unit Main panel A/B/A1/B1
Next slave
unit
1 SIN 11 0V
2 *SIN 12 0V
3 SOUT 13 0V
4 *SOUT 14 0V
515
616
717
8 18 (+5V)
9 (+5V) 19
10 20 (+5V)
1 SIN 11 0V
2 *SIN 12 0V
3 SOUT 13 0V
4 *SOUT 14 0V
515
616
717
8 18 (+5V)
9 (+5V) 19
10 20 (+5V)
JD1A
(PCR–E20MDK–SL–A)
JD1B
(PCR–E20MDK–SL–A)
JD1B JD1A
JD1A JD1B
SHIELD
SIN
*SIN
SOUT
*SOUT
0V
0V
0V
0V
1
2
3
4
11
12
13
14
SOUT
*SOUT
SIN
*SIN
0V
0V
0V
0V
3
4
1
2
11
12
13
14
Recommended connector for cable of JD1A and JD1B on Main panel A/B/A1/B1
When the depth of the operator's panel is 60mm min.
Recommended connector for cable:
Hirose electric : FI30-20S (Connector)
FI-20-CV7 (Case)
When the depth of the operator's panel is 80mm min.
Recommended connector for cable:
Honda : PCR-E20FA (Connector)
PCR-V20LA (Case)
Hirose electric : FI30-20S (Connector)
FI-20-CV2 (Case)
Fujitsu : FCN-247J020-G/E (Connector)
FCN-240C020-Y/S (Case)
Molex : 52622-2011 (Connector)
52624-2015 (Case)
+5V terminals are for an optical I/O Link adapter. They are not necessary when connecting with
a metal cable.
A line for the +5V terminal is not required when the Optical I/O Link Adapter is not used.
GROUNDING PLATE
Recommended wire material:
A66L-0001-0284#10P(AWG28 10 pairs)
6.12.3.4
I/O Link connection
