Series 15i/150i - Model A Connection manual (Hardware) Page 352

Connection manual (Hardware)
B–63323EN/03
9. FANUC INTELLIGENT TERMINAL
341

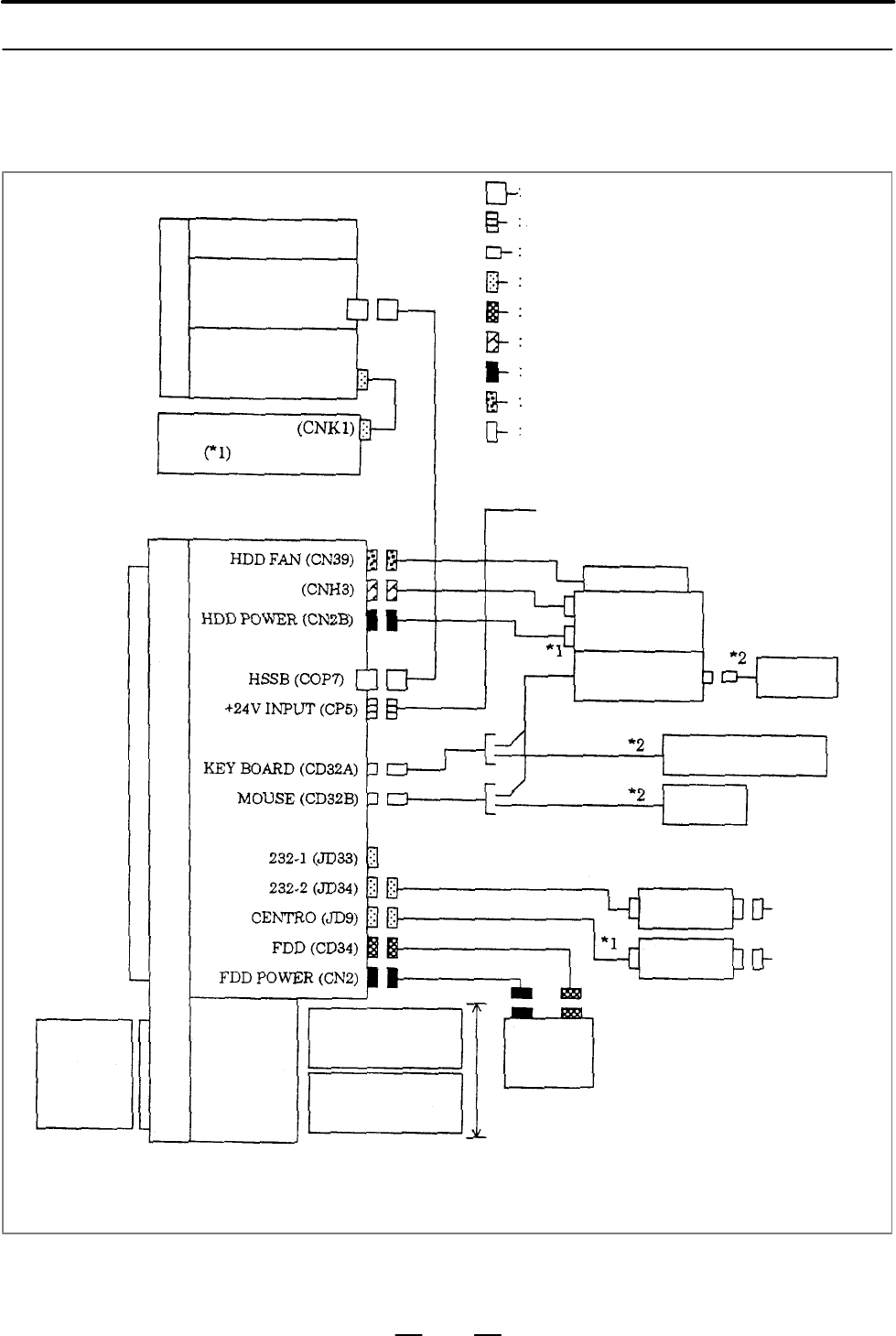

*1 Either the separate MDI or FA full keyboard can be used. Install the FAN–unit–attached HDD unit at the rear of the MDI or FA full key
*1 board.
*2 Can be used only during application development. Cannot be incorporated into the system.
*3 RS232–C channel 1 is used by the touch panel and, therefore, cannot be used by users.
Optical link module cable
AMP (dynamic)
AMP (mini DIN 6–pin cable)
Honda (PCR 20–pin cable)
Hirose Denki (34–pin flat cable)
Hirose Denki (40–pin flat cable)
AMP (EI series 4–pin cable)
Molex (5046–NA 3–pin cable)
Other
CNC control unit
Power unit
HSSB interface board
HSSB(COP7)
Another printed circuit
board
MDI(JA2)
MMX–Pentium
intelligent terminal
Power (+24VDC)
Separate MDI
FAN unit
3.5” HDD unit
Full keyboard
Mouse
Mouse
I/O device
Printer
Power
Power
PCMCIA
card
ISA
expansion
backplane
ISA expansion
board
ISA expansion
board
Floppy
disk drive
ISA expansion
RS232–C channel 1 (*3)
RS232–C channel 2
Touch panel
PCMCIA card slot
10.4” or 12.1” color LCD panel
FA full keyboard
For an explanation of the connection of the devices other than those
shown above, see the connection manual supplied with the CNC.
9.4.3
If the Touch Panel is
Attached But the Soft
Keys are Not Attached
