Series 15i/150i - Model A Connection manual (Hardware) Page 23

Connection manual (Hardware)
3. INSTALLATION
B–63323EN/03
12

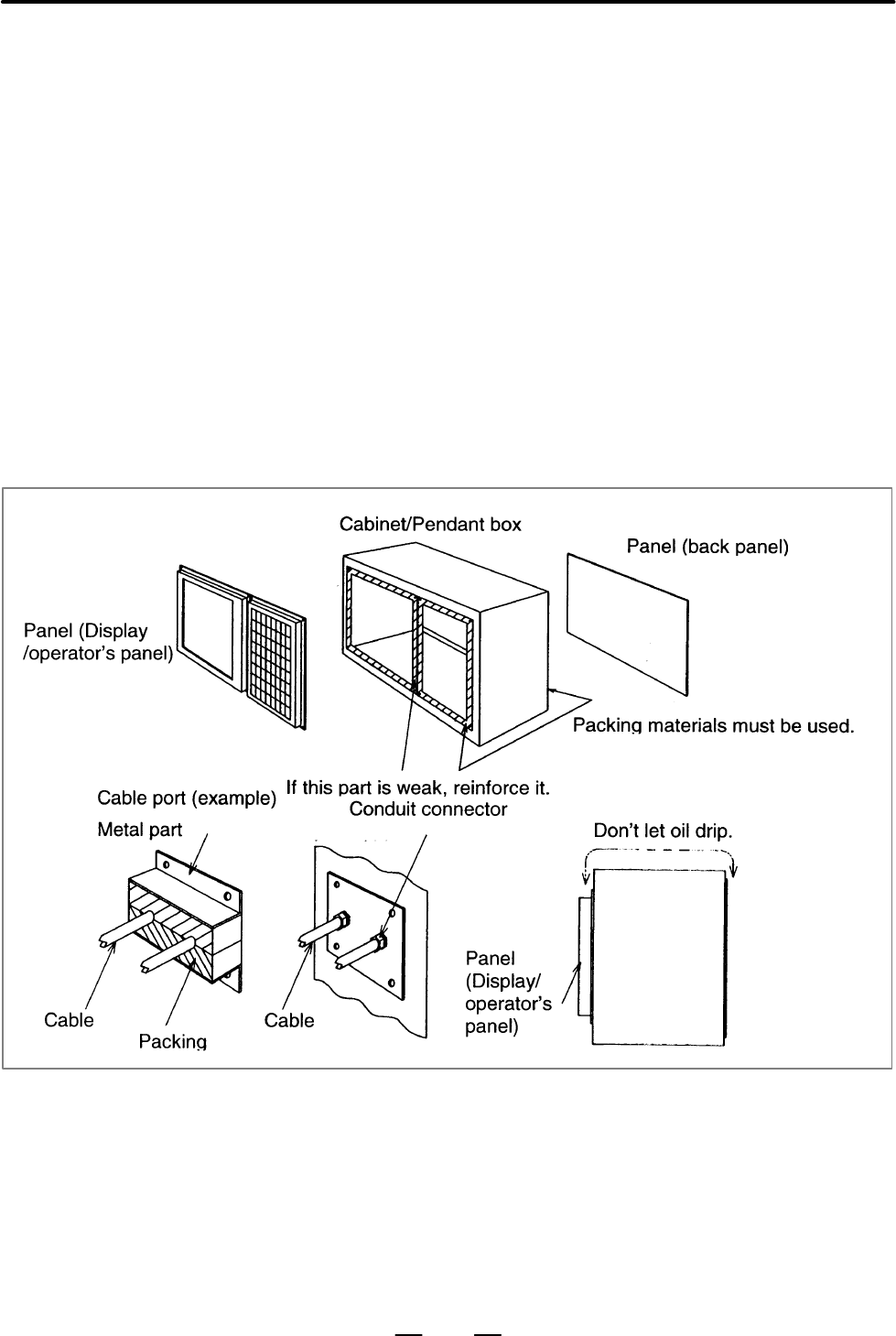

When a cabinet or a pendant box, which houses a display and an operator’s
panel, is designed, it must satisfy following conditions to prevent from
the entry of airborne dust, coolant, and organic solvent.
(1) A cabinet or a pendant box must be fully closed.
(2) Packing materials must be used for the fixed side of a display and an
operator’s panel in order to seal a cabinet or a pendant box.
(3) Packing materials must be used for the door of a cabinet or a pendant
box in order to seal a cabinet or a pendant box.
(4) Packing materials must be used for a back panel in order to seal a
cabinet or a pendant box.
(5) Packing materials and conduit connector and so on must be used for
the cable port in order to seal a cabinet or a pendant box.
(6) ALL holes must be filled.
(7) A display and an operator’s panel must not be placed in a location
where coolant and cutting chips would directly fall onto them.
(8) Don’t let oil drip from the top of a cabinet or a pendant to panel sides.
3.4
PROTECTION OF
PARTS INSIDE A
CABINET OR A
PENDANT BOX
FROM DUST
