Series 16i/160i/160is/18i/180i/180is/ Maintenance manual Page 377

Maintenance manual
B–63525EN/02
4. STAND–ALONE TYPE i SERIES HARDWARE
347
WARNING
If the cabinet is opened to replace a fan unit, take extreme
care not to touch any high–voltage area (marked with
and covered by a shock prevention cover). If the area is
uncovered, direct contact with this area will result in an
electric shock.
Ordering information Quantity
For 1–slot cabinet A02B–0265–C101 1
For 2–slot cabinet A02B–0260–C021 1

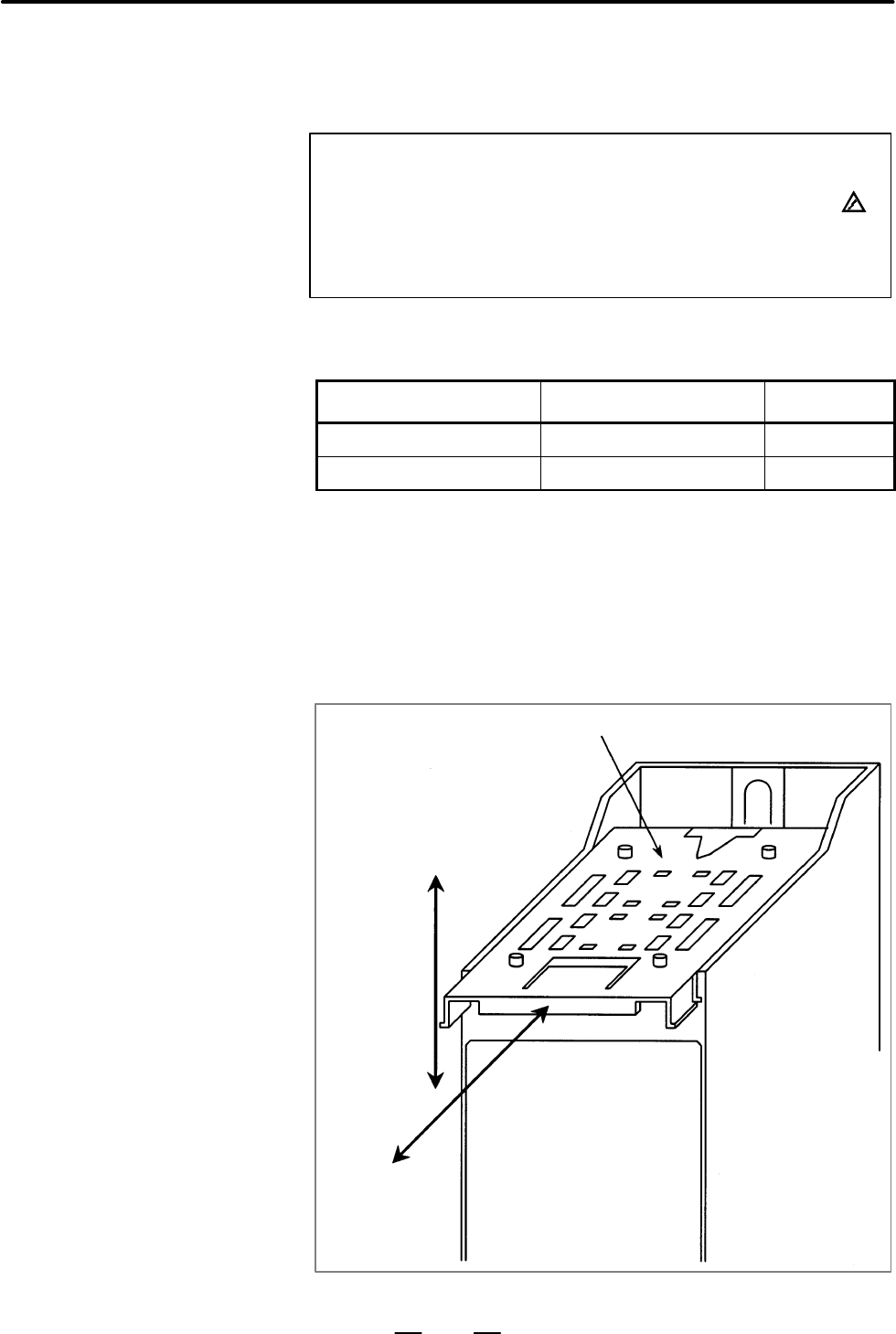

(1)Before starting the replacement of a fan unit, turn the CNC off.
(2)Pull the fan unit to be replaced.
(3)Lift the pulled fan unit until the fan unit is detached from the cabinet.
(4)Place a new fan unit on the cabinet.
(5)Push the new unit as far as it goes. When a click is heard, the unit is
connected to the fan connector.
Fan unit
Cabinet
(3), (4)
(2), (5)
4.10
REPLACING A FAN
UNIT
D Ordering information of
fan units
D Replacing a fan unit
