Series 16i/160i/160is/18i/180i/180is/ Maintenance manual Page 663

Maintenance manual
B–63525EN/02
8. EMBEDDED ETHERNET FUNCTION
633
Method of entering special characters
The method of entering special characters such as ”\” unavailable with the
MDI keys is described below.
As an example, the procedure for setting the character string ”PROG$”
is described.
1 Place the CNC in the MDI mode.

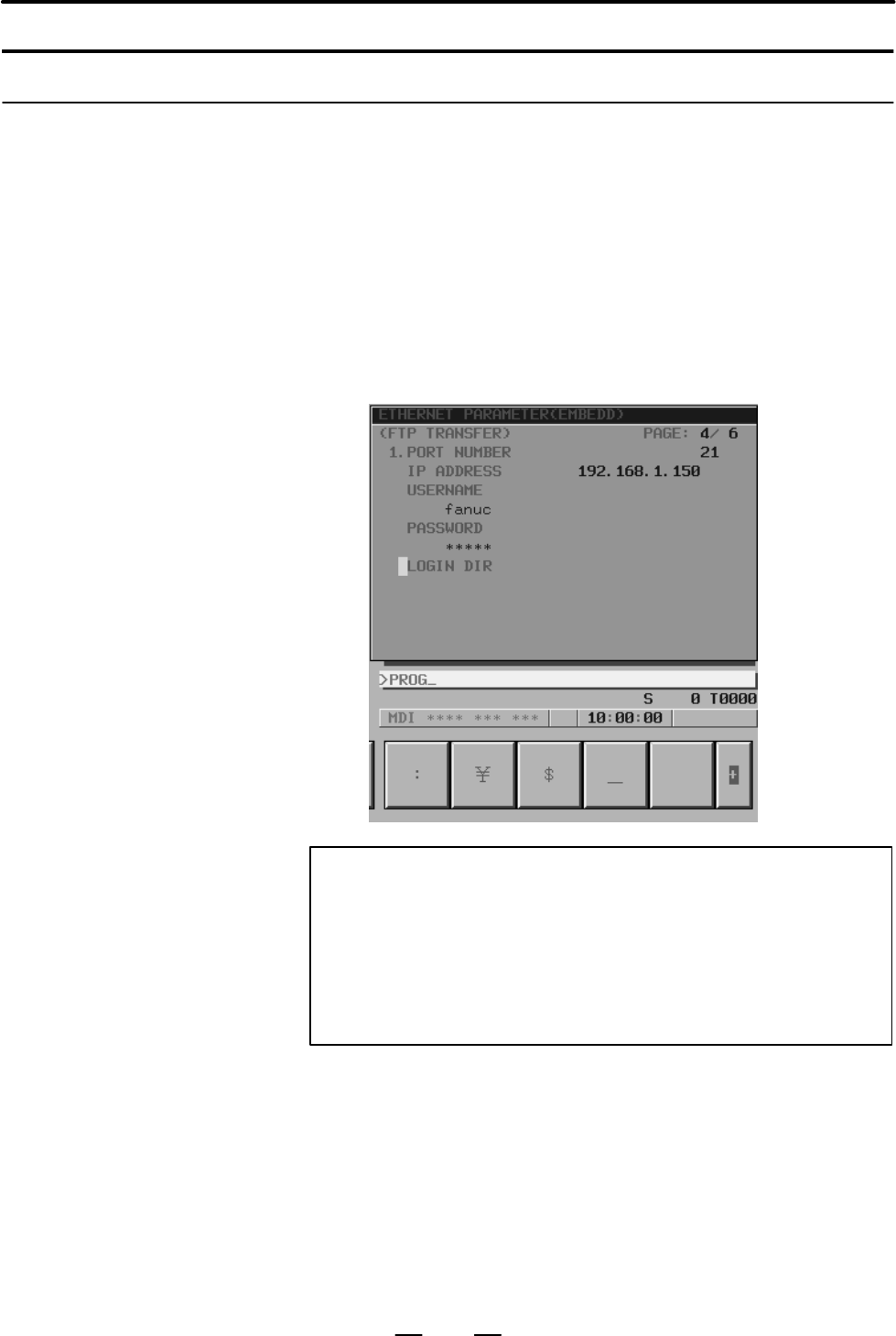

2 Display the Ethernet parameter screen.
3 Move the cursor to LOGIN DIR with cursor keys.
4 Type ”PROG” with the MDI keys, then press the continuous menu key
at the right end of the soft key display.
NOTE
Those characters unavailable with the MDI keys that are
used frequently such as :, ¥, $, and _ can be entered using
soft keys. To enter a character other than these characters,
set the ASCII code of the character in a parameter from
parameters No. 931 through No. 935.
For details, see Subsection 17.3.3.3, ”Parameters”.
Procedure
