11. TROUBLESHOOTING

B–63525EN/02

736

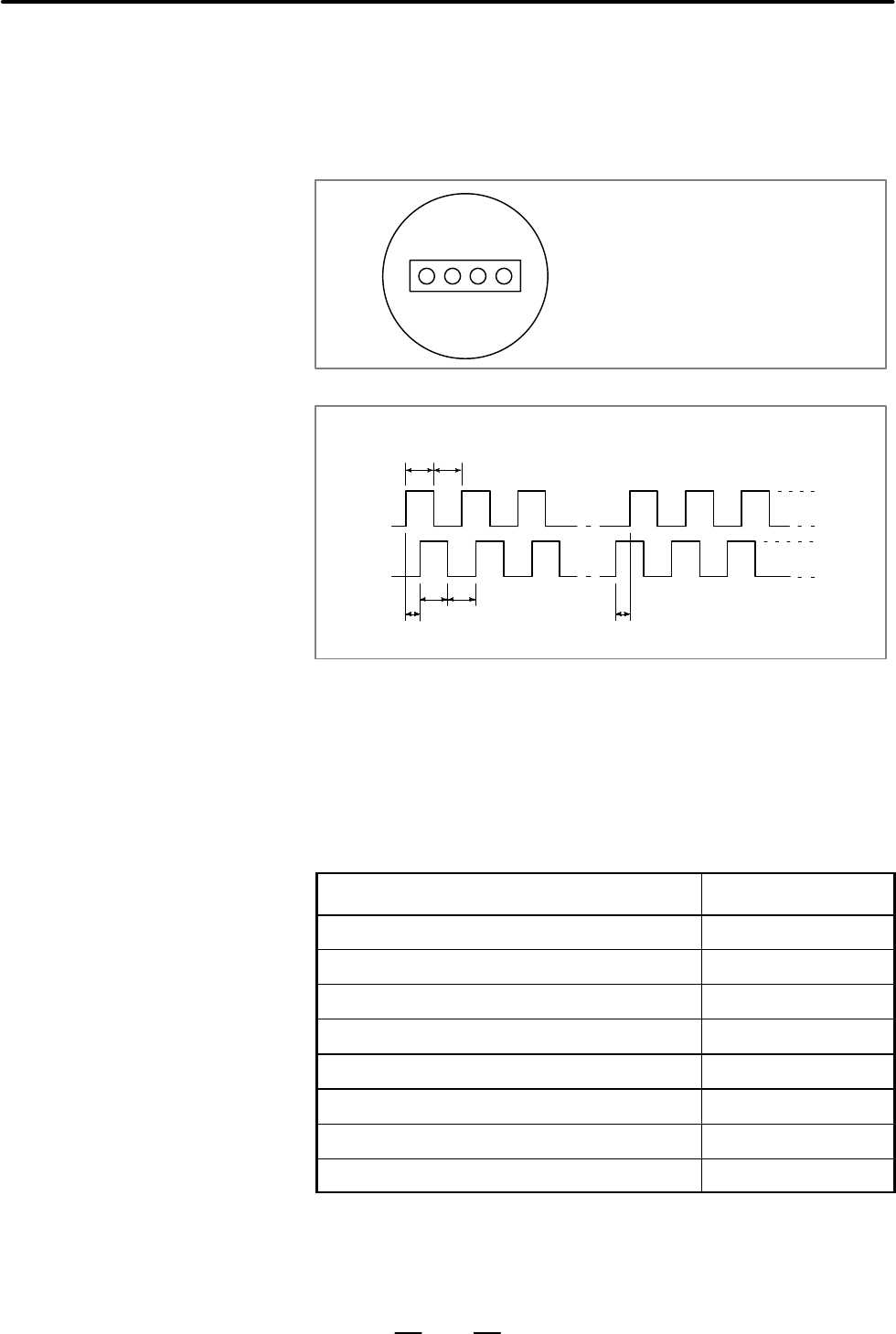

(2)Manual pulse generator failures

When rotated, a manual pulse generator generates the signals shown

below. Using an oscilloscope, measure the signals from the screw

terminal block located at the rear of a manual pulse generator. If no

signals are output, measure the +5 V voltage.

+5V 0V HA HB

Screw terminal

block

Rear of a manual pulse generator

HA: Manual pulse generator phase A signal

HB: Manual pulse generator phase B signal

+5V

1/4

1 : 1

When rotated in the plus direction When rotated in the minus direction

On Off

1/4 (phase difference)

Check the on/off ratio and the phase difference between HA and HB.

If the I/O module is not allocated properly in I/O link allocation, the pulses

of the manual pulse generators are not transmitted to the CNC, making

it impossible to perform manual handle operation.

The I/O modules to which manual pulse generators can be connected are

listed below.

Name Specifications

I/O module for connector panel (extended module A) A03B–0815–C002

I/O module for operator’s panel (supporting matrix input) A20B–2002–0470

I/O module for operator’s panel A20B–2002–0520

Interface unit for machine operator’s panel A20B–2201–0110

Main panel A of machine operator’s panel A02B–0236–0230

Main panel B of machine operator’s panel A02B–0236–0231

Main panel A1 of machine operator’s panel A02B–0236–0240

Main panel B1 of machine operator’s panel A02B–0236–0241

If a multiple number of these modules are used and are allocated so that

they use a manual pulse generator, the module nearest the CNC becomes

effective because of the I/O link connection.

3 Allocation of the I/O link

of the I/O module
