B-63790EN/01 4.DESCRIPTION OF PARAMETERS

- 305 -

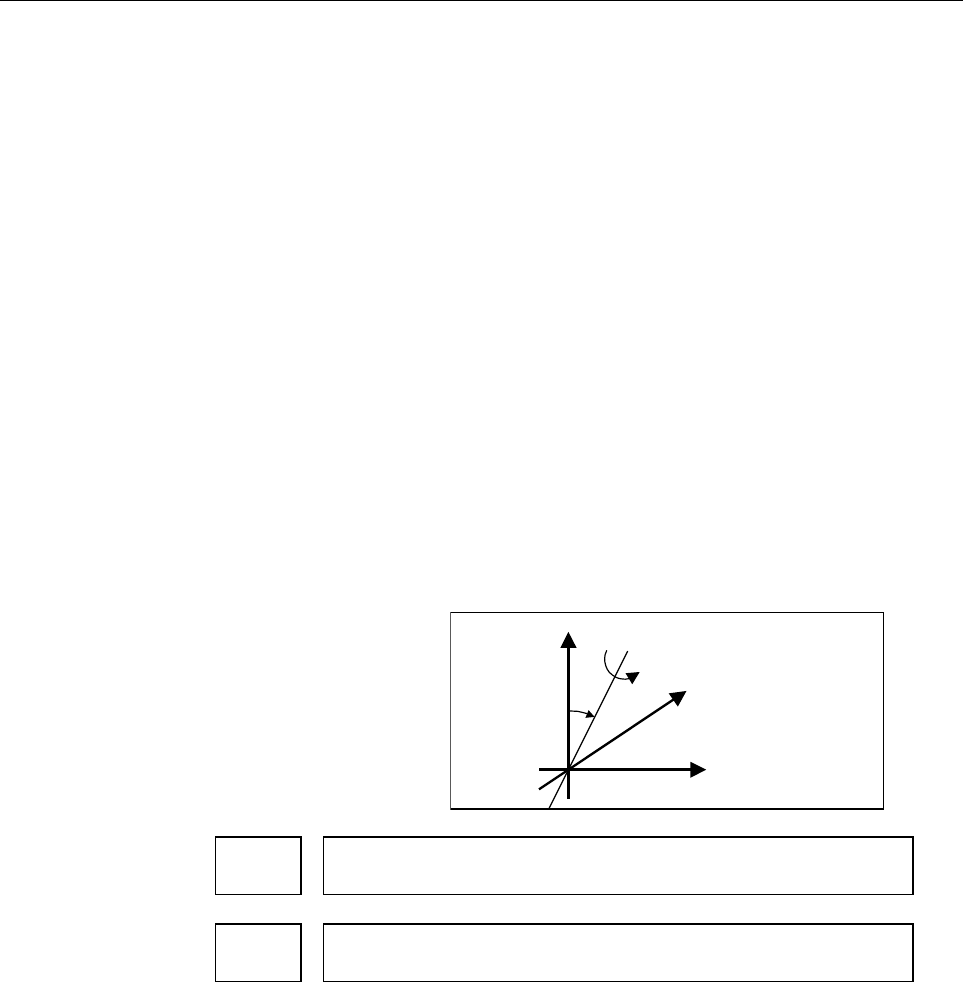

B) If the components of the direction vector of the rotation

axis are in two directions (type B)

This is a case in which the rotation axis rotates about an

axis on the plane formed by any two of the basic three axes.

1) Set the axis number for the rotation axis and linear

axes 1, 2, and 3.

2) Linear axes 1, 2, and 3 are supposed to form a right-

handed system in that order.

3) The angle must satisfy the following:

- Rotation is on the plane of linear axes 3 and 1.

- The rotation of the angle in the plus direction is its

rotation from the plus direction of linear axis 3 to

the plus direction of linear axis 1.

- The angle assumed at the time of a match with the

direction of linear axis 3 is 0 degrees.

4) The rotation axis must satisfy the following when the

angle is 0 degrees:

- The rotation axis rotates about an axis orthogonal

to the plane of linear axes 1 and 2.

- The rotation of the rotation axis in the plus

direction is its rotation from the plus direction of

linear axis 1 to the plus direction of linear axis 2.

α : Angle

6104 Reference angle of rotation axis used to execute three-dimensional cutter

compensation (first set)

6105 Reference angle of rotation axis used to execute three-dimensional cutter

compensation (second set)

[Input type] Parameter input

[Data type] Real

[Unit of data] degree

[Minimum unit of data] Depend on the increment system of the reference axis

[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting

table (A) )

(When the increment system is IS-B, -999999.999 - +999999.999)

Set the reference angles of the rotation axes used to execute three-

dimensional cutter compensation for rotary table, thermal growth

compensation along tool vector, and three-dimensional tool

compensation.

Set the angles of the rotation axes assumed when the tool direction

(parameters Nos. 6106 to 6107).

Usually, set a value of 0.0.
