Series 15i/150i - Model B Parameter manual Page 336

Parameter manual
4.DESCRIPTION OF PARAMETERS B-63790EN/01
- 326 -
6193 Intersection offset vector between the first and second rotary axes of the tool
(X-axis, one of the basic three axes)
6194 Intersection offset vector between the first and second rotary axes of the tool
(Y-axis, one of the basic three axes)
6195 Intersection offset vector between the first and second rotary axes of the tool
(Z-axis, one of the basic three axes)
[Input type] Parameter input
[Data type] Real
[Valid data range] mm, inch (machine unit)
[Minimum unit of data] Depend on the increment system of the applied axis
[Valid data range] 9 digit of minimum unit of data (Refer to the standard parameter
setting table (A))
(When the increment system is IS-B, -999999.999 to +999999.999)

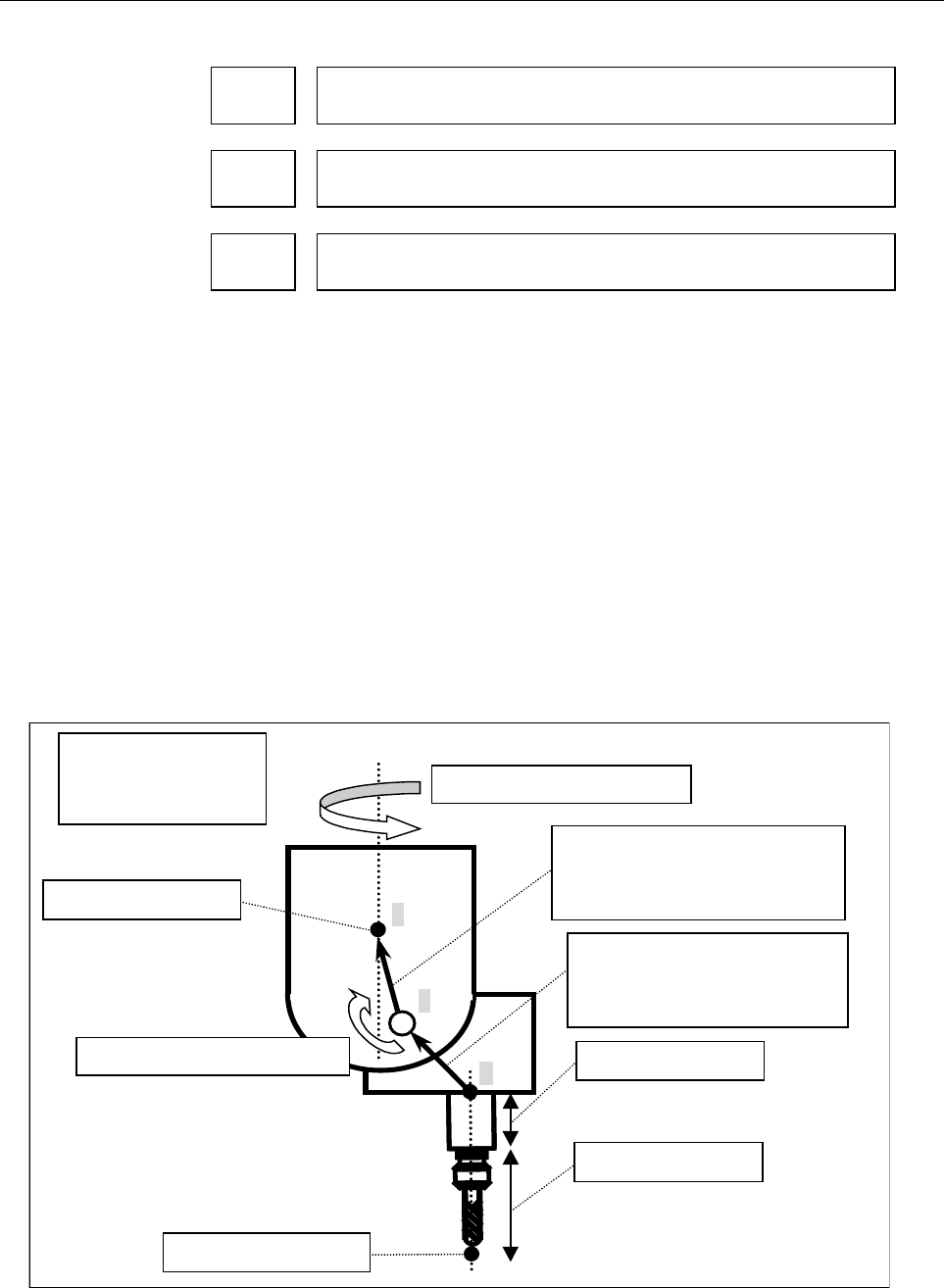

Set this parameter if the tool rotary axes do not cross each other. The
setting becomes effective if parameter No. 6161 = 2.
If all the rotary axes for controlling the tool are at 0 degrees, specify
the vector from point E on the second rotary axis of the tool to point F
on the first rotary axis of the tool as the intersection offset vector in
the machine coordinate system.
(Caution)
Select, as point F, a position where measurement is easy.
D
E
F
Intersection offset vector
between the tool axis and the
first rotary axis of the tool
First rotar
y
axis of the tool
If the toll rotary axes
do not cross each
other
Tool center point
Tool length offset
Intersection offset vector
between the second rotary axis
and the first rotary axis of the
tl
Tool holder offset
Second rotar
y
axis of the tool
Controlled point
