4.INTERPOLATION FUNCTIONS PROGRAMMING B-63784EN/01

- 140 -

- Rollover

If a control point is specified in the absolute mode (G90) for a rotation

axis subject to rollover, the relative position shift of the control point

based on a shortcut is calculated after rollover processing for the

control point.

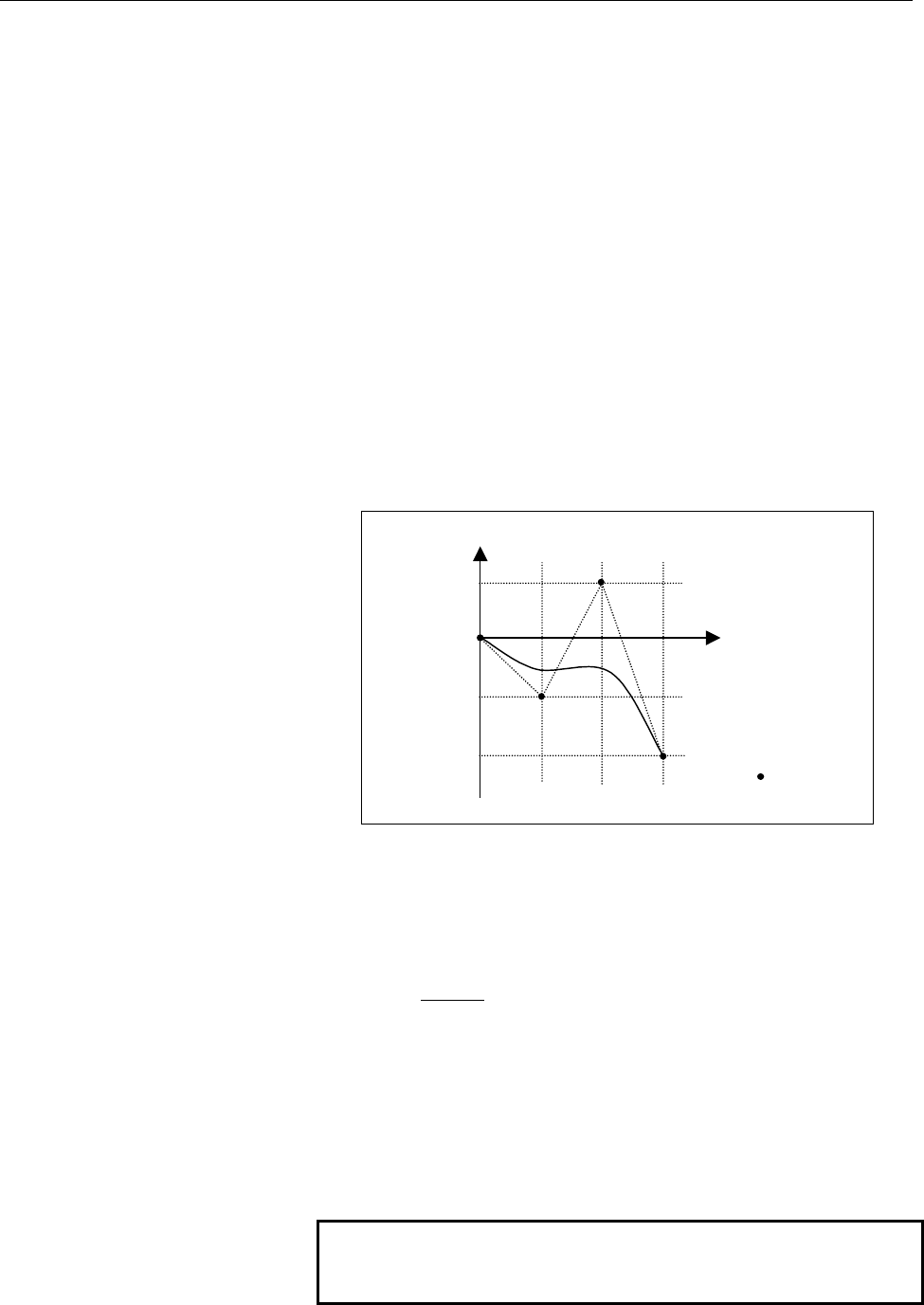

Example: When the C-axis is a rotation axis subject to rollover

Program

G90 G06.2 P4 K0.0 X0.0 C0.0 F1000

K0.0 X10.0 C350.0

K0.0 X20.0 C10.0

K0.0 X30.0 C-20.0

K1.0

G01

Actual operation

10.0

-10.0 (350.0)

-20.0 (340.0)

Control point

0.0 (360.0)

10.0

30.0

20.0

- Inverse time feed

If G93 is specified during NURBS interpolation, the inverse time

command (G93) mode is set. Specify an inverse time (FRN) with F

code. FRN for NURBS interpolation is represented by the following

expression:

Distance

Feedrate

FRN =

Feedrate: mm/min (metric input) or inch/min (inch input)

Distance: mm (metric input) or inch (inch input)

(Travel distance along a NURBS curve. This distance does not

always represent a travel distance if a rotation axis is

involved.)

The format of F code is F4.3 (0.001 to 9999.999) as with the ordinary

inverse time command. The valid data range of a feedrate command is

the same as for a feedrate command in the feed per minute mode.

NOTE

The actual operation time may slightly vary from a

specified time due to CNC internal processing.
