14.COMPENSATION FUNCTION PROGRAMMING B-63784EN/01

- 462 -

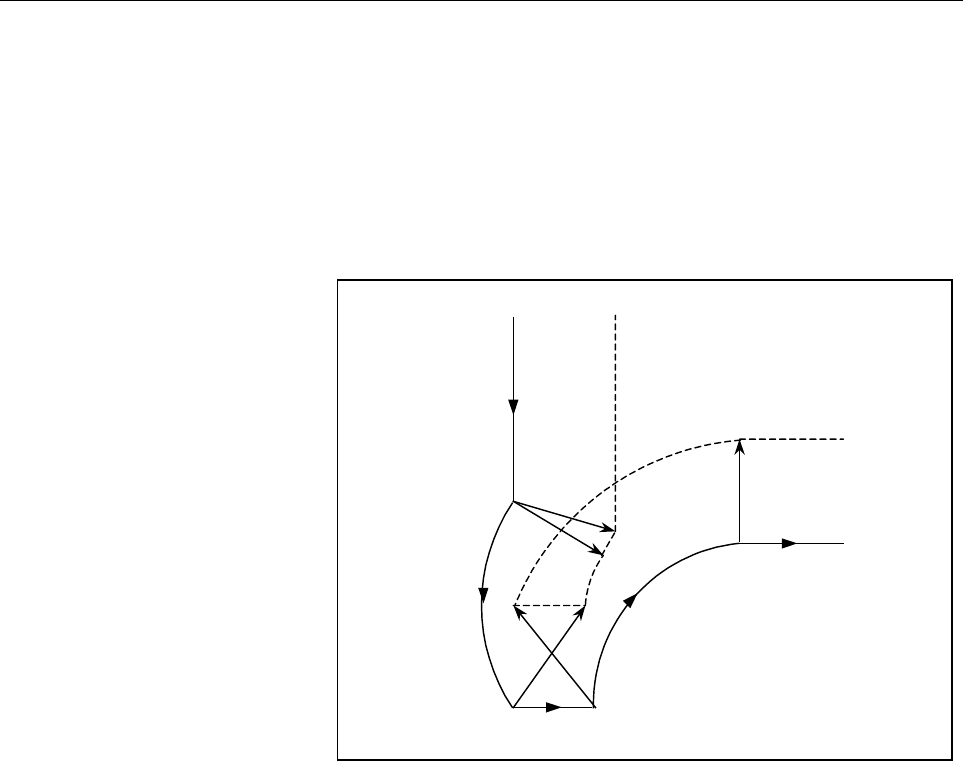

In the circular pocketing shown below, interference is detected

between the vector at the end point of block 1 and that of the end point

of block 2, and an attempt is made to calculate an intersection vector

between the post-compensation path for block 1 and the post-

compensation path for block 3 for interference avoidance. In this case,

there is no such post-compensation intersection because the paths

programmed in blocks 1 and 3 are circular. So, an alarm (PS0277) is

displayed and tool movement is stopped immediately before block 1, as

in the previous example.

Programmed path Tool center path

Block 1

Block 2

Block 3

Stopped
