7.COORDINATE SYSTEM PROGRAMMING B-63784EN/01

- 188 -

7 COORDINATE SYSTEM

By teaching the CNC a desired tool position, the tool can be moved to

the position. Such a tool position is represented by coordinates in a

coordinate system. Coordinates are specified using program axes.

When three program axes, the X-axis, Y-axis, and Z-axis, are used,

coordinates are specified as follows:

X_Y_Z_

This command is referred to as a dimension word.

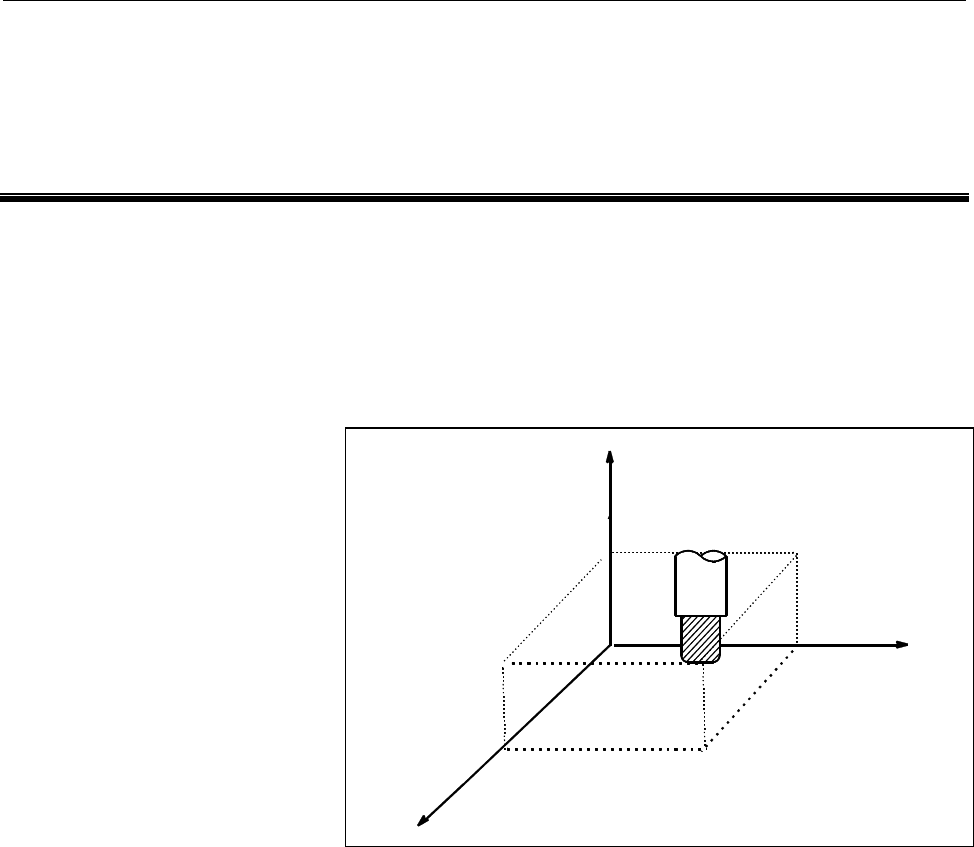

Fig.7 Tool Position Specified by X40.0Y50.0Z25.0

Coordinates are specified in one of following three coordinate systems:

(1) Machine coordinate system

(2) Workpiece coordinate system

(3) Local coordinate system

The number of the axes of a coordinate system varies from one machine

to another. So, in this manual, a dimension word is represented as IP_.

40.0

50.0

25.0
