B-63784EN/01 PROGRAMMING 14.COMPENSATION FUNCTION

- 511 -

- Machine coordinate system positioning (G53)

When machine coordinate system positioning (G53) is performed, the

compensation vector is temporarily cancelled in the block, but is

applied when movement is next performed.

Workpiece coordinate

system origin

Machine coordinate system origin

G00

G53

Specified

point

Specified

point

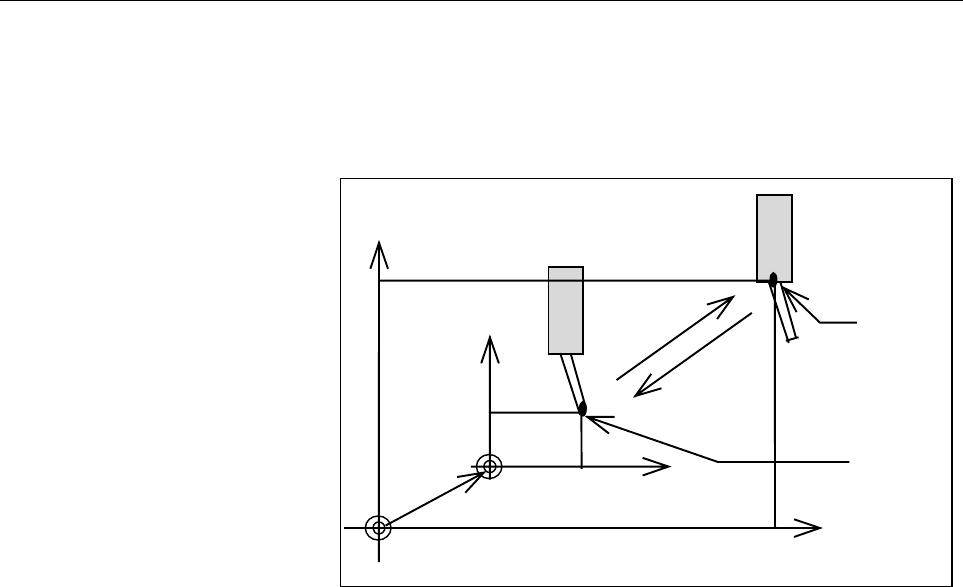

Fig.14.12 (c) Machine Coordinate System Positioning during Tool Axis

Direction Tool Length Compensation

- Tool offset by tool number

When the tool offset by tool number is used, the tool length

compensation amount corresponding to a tool number (T code) is used

for tool length compensation along the tool axis.

- Tool life management

When tool life management is used, the tool length compensation

amount for the tool being used is used for tool length compensation

along the tool axis.
