14.COMPENSATION FUNCTION PROGRAMMING B-63784EN/01

- 430 -

- Cutter compensation G code in the offset mode

The offset vector can be set to form a right angle to the moving

direction in the previous block, irrespective of machining inner or outer

side, by commanding the cutter compensation G code (G41, G42) in

the offset mode, independently.

If this code is specified in a circular command, correct circular motion

will not be obtained.

When the direction of offset is expected to be changed by the command

of cutter compensation G code (G41, G42), refer to the Item "Change in

the offset direction in the offset mode" in this Subsection.

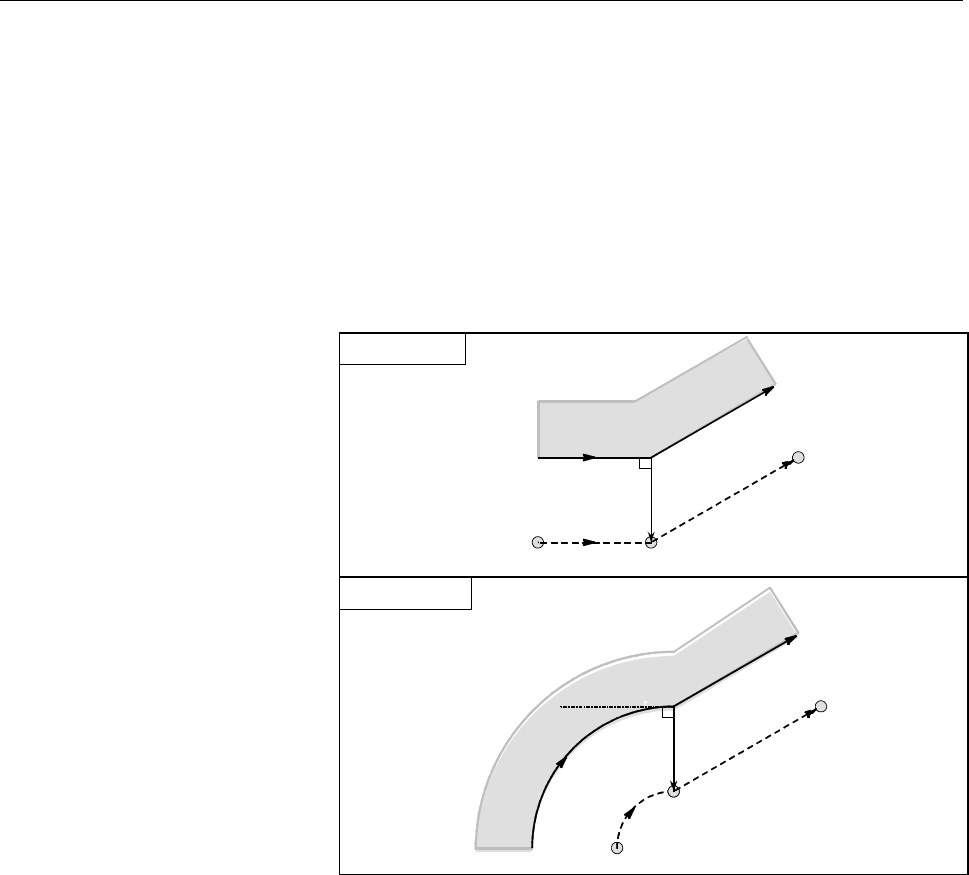

Linear to linear

Tool center path

Circular to linear

block specified

by G42

G42 mode

Programmed path

Intersection

block specified

by G42

Intersection

G42 mode
