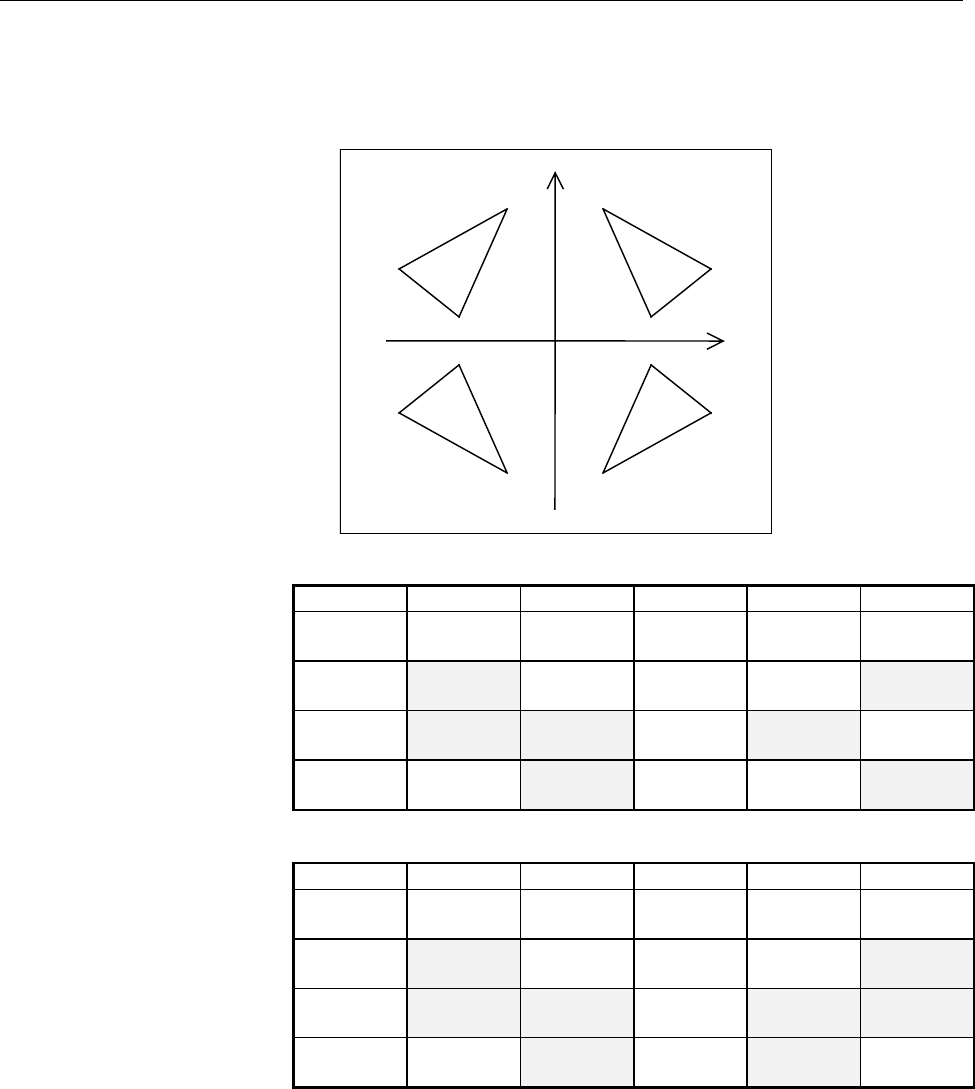

- Programmable mirror image

In mirror operation, there must be no conflict between the linear axes

and rotation axes.

First

quadrant

Second

quadrant

Third

uadrant

Fourth

uadrant

Example 1: XY Plane on a BC-Type Machine

XYZBC

First

quadrant

Normal Normal Normal Normal Normal

Second

quadrant

Mirror Normal Normal Normal Mirror 90°

about center

Third

quadrant

Mirror Mirror Normal Mirror 0°

about center

Normal

Fourth

quadrant

Normal Mirror Normal Normal Mirror 0°

about center

Example 2: XY Plane on an AB-Type Machine (with A being the Master)

XYZAB

First

quadrant

Normal Normal Normal Normal Normal

Second

quadrant

Mirror Normal Normal Normal Mirror 0°

about center

Third

quadrant

Mirror Mirror Normal Mirror 0°

about center

Mirror 0°

about center

Fourth

quadrant

Normal Mirror Normal Mirror 0°

about center

Normal
