13.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63784EN/01

- 388 -

Restrictions

- Basic restrictions

The restrictions for incline cutting commands are similar

to those for three-dimensional coordinate conversion.

Following are the restrictions that require special

attention.

- Increment system

The same increment system must be used for the basic three axes used

by this function.

- Rapid traverse command

The rapid traverse command must specify linear rapid traverse

(parameter LRP (bit 4 of parameter No. 1400) = 1).

- Feature coordinate system and three-dimensional coordinate conversion

An alarm is raised if an attempt is made to set a feature coordinate

system in another feature coordinate system.

An alarm is raised also if an attempt is made to set a new coordinate

system by performing three-dimensional coordinate conversion in a

coordinate system.

- Positioning in the machine coordinate system

Positioning commands in the machine coordinate system, such as G28,

G30, and G53, operate in the machine coordinate system rather than the

feature coordinate system.

- External mirror image

If an attempt is made to use this function and an external mirror image

function simultaneously, this function takes effect before the external

mirror image function.

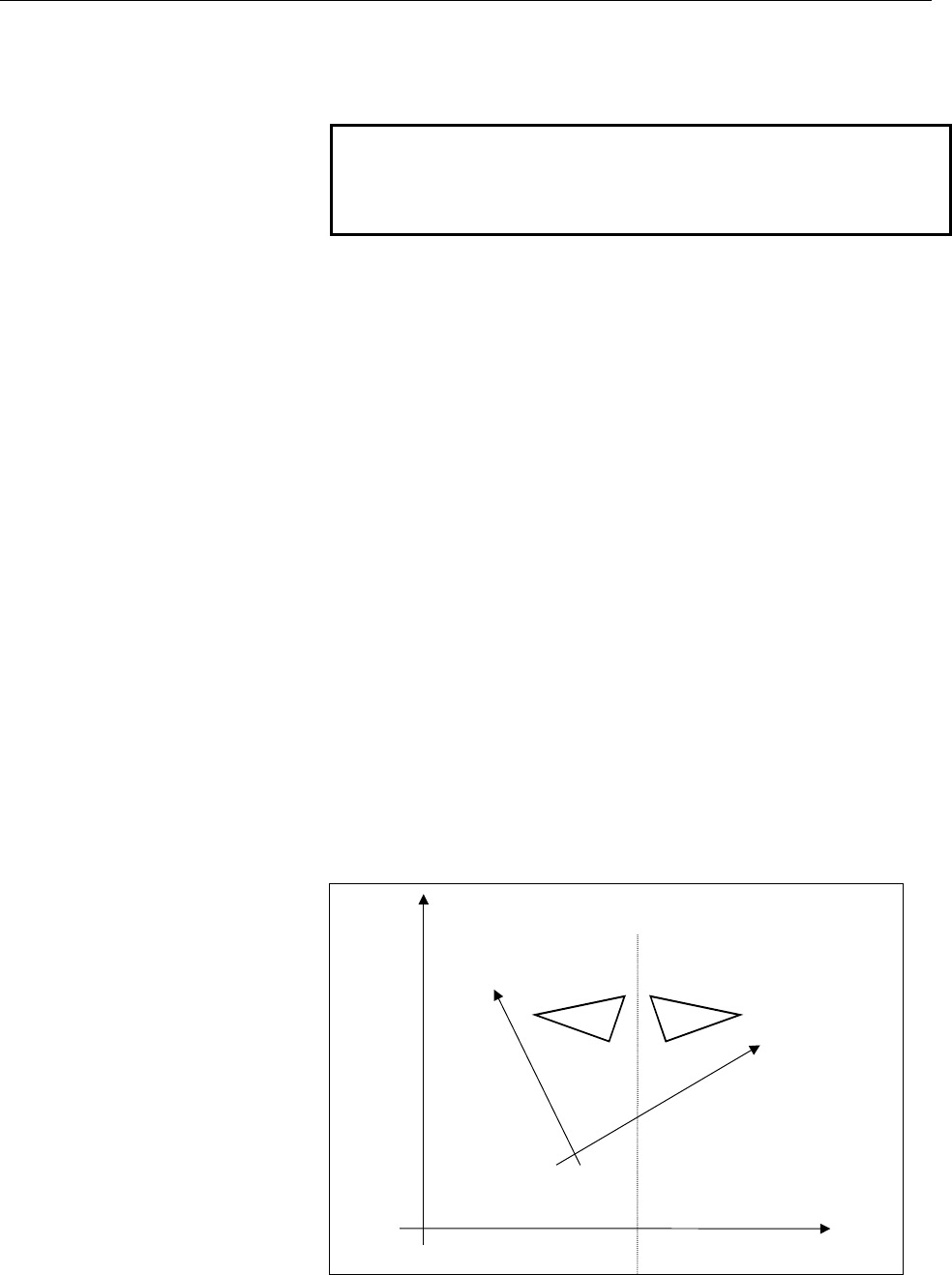

Actual path

Programmed path

Feature coordinate system

Workpiece coordinate system

Positioning where mirroring is applied
