Series 15i/150i-MB Operators manual Page 647

Operators manual

Page of 904

/ 904

B-63784EN/01 PROGRAMMING 16.MEASUREMENT FUNCTIOM

- 623 -

Explanation

- Skip operation condition

CommandCondition

G31P98 G31P99

When a torque limit is reached A A

When a skip signal is entered B A

A : Skip operation is performed.

B : Skip offset is not performed.

- Torque limit skip operation

In torque limit skip operation, a specified axis is pressed against a

workpiece when a torque limit has been specified with the servo motor.

Then, skip operation is performed when the servo motor reaches the

torque limit. Skip operation is performed when a torque limit detected

by the servo motor is reached, so that it is not necessary to enter a skip

signal by using a separate sensor as in the case of the normal skip

function.

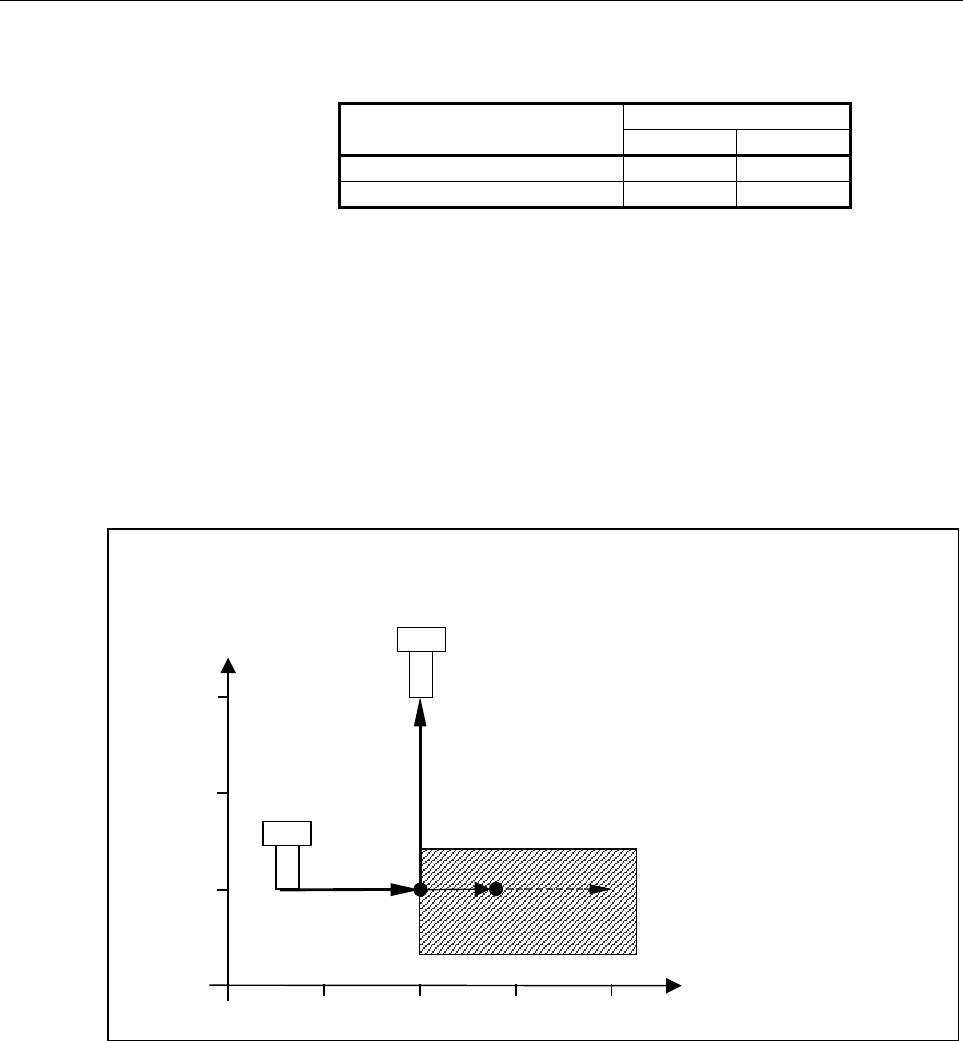

(Example)

N1 G31 P99 Q50 Z400.0 F100.0 ;

N2 G01 X300.0 F500.0 ;

100.0 200.0

300.0 400.0

100.0

200.0

300.0

Error

A : Machine stop position

B : CNC current position when a

torque limit is reached

End point position specified in

(1) At point A, the machine touches a measurement object, then stops.

At this point, the torque limit is not reached, so that skip operation

is not performed, but move command output continues, updating

the current CNC position.

(2) Move command output continues, but the machine is stopped, so a

displacement (error) occurs between the current CNC position

and the machine position, and a torque is applied to the servo

motor.

(3) When the torque limit is reached, skip operation is performed

starting at the machine stop position (point A), and the N2

command is executed. Suppose that the current CNC position

when the torque limit is reached is point B. Then, when torque

limit skip is performed, the error is (A - B).
