B-63784EN/01 PROGRAMMING 17.CUSTOM MACRO

- 723 -

- Custom macro interrupt and custom macro modal call

When the interrupt signal (UINT) is input and an interrupt program is

called, the custom macro modal call is canceled (G67). However, when

G66 is specified in the interrupt program, the custom macro modal call

becomes valid. When control is returned from the interrupt program by

M99, the modal call is restored to the state it was in before the interrupt

was generated. When control is returned by M99 Qxxxxxxxx;, the

modal call in the interrupt program remains valid.

NOTE

In the following modes, only those programs

consisting of macro programs only can generate

interrupts. If programs containing NC statements

attempt to generate an interrupt, alarm PS0101 is

issued.

1) Canned cycle

2) Programmable mirror image

3) Coordinate system rotation

4) Scaling

Additional functions for Interruption Type Custom Macro

• Function that makes an interruption type custom macro valid

when the power is turned on (if bit 2 of parameter No. 7004 is 1).

• Function that prevents an interruption type custom macro from

being made invalid (if bit 2 of parameter No. 7004 is 1).

• Function that ensures that the modal information in an

interruption type custom macro program is inherited even if

control returns from the last M99 in that interruption type custom

macro program to the original program (if bit 3 of parameter No.

7004 is 1).

• Function that, when a programmable mirror image is effective,

allows execution to continue without issuing an alarm if an

interruption type custom macro is called and the custom macro

program contains an NC statement (if bit 4 of parameter No. 7004

is 1).

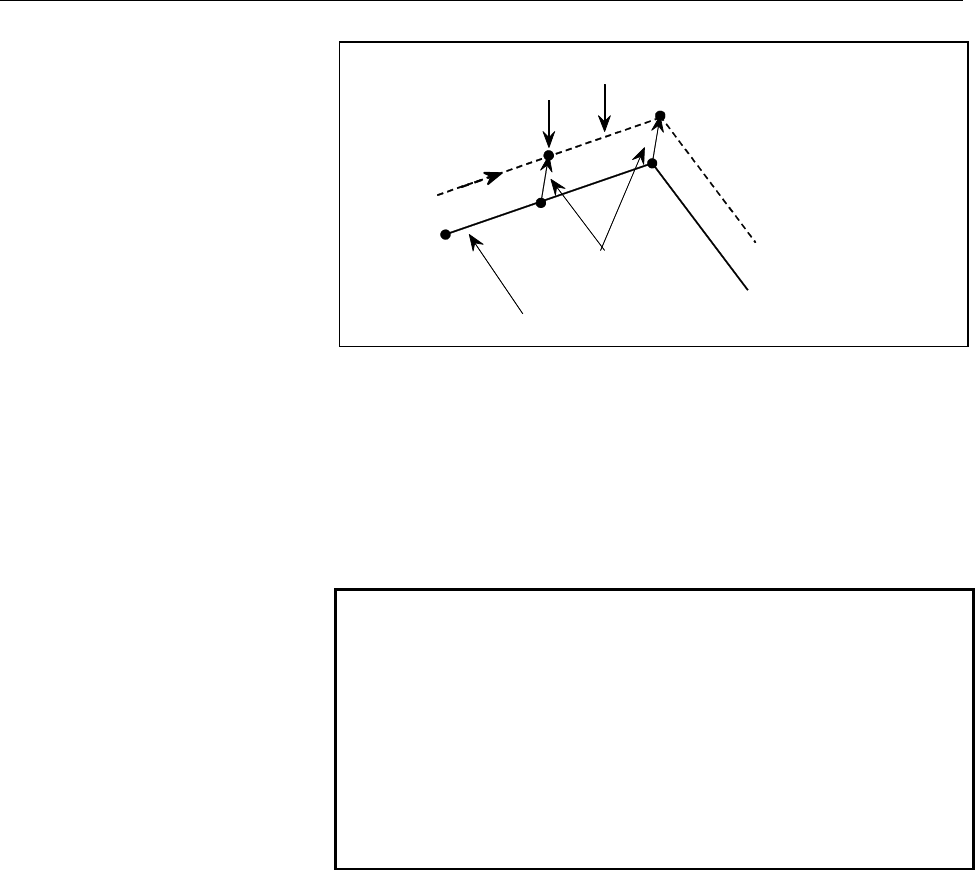

B’

’

Interrupt generated

Programmed tool path

Offset vector

Tool center path
