B-63784EN/01 PROGRAMMING 14.COMPENSATION FUNCTION

- 395 -

14.2 TOOL OFFSET(G45-G48)

The programmed travel distance of the tool can be increased or

decreased by a specified tool offset value or by twice the offset value.

The tool offset function can also be applied to an additional axis.

Format

G45 IP_ D_ ;Increase the travel distance by the tool

offset value

G46 IP_ D_ ;Decrease the travel distance by the tool

offset value

G47 IP_ D_ ;Increase the travel distance by twice the

tool offset value

G48 IP_ D_ ;Decrease the travel distance by twice

the tool offset value

G45 to 48 : One-shot G code for increasing or decreasing

the travel distance

IP : Command for moving the tool

D : Code for specifying the tool offset value

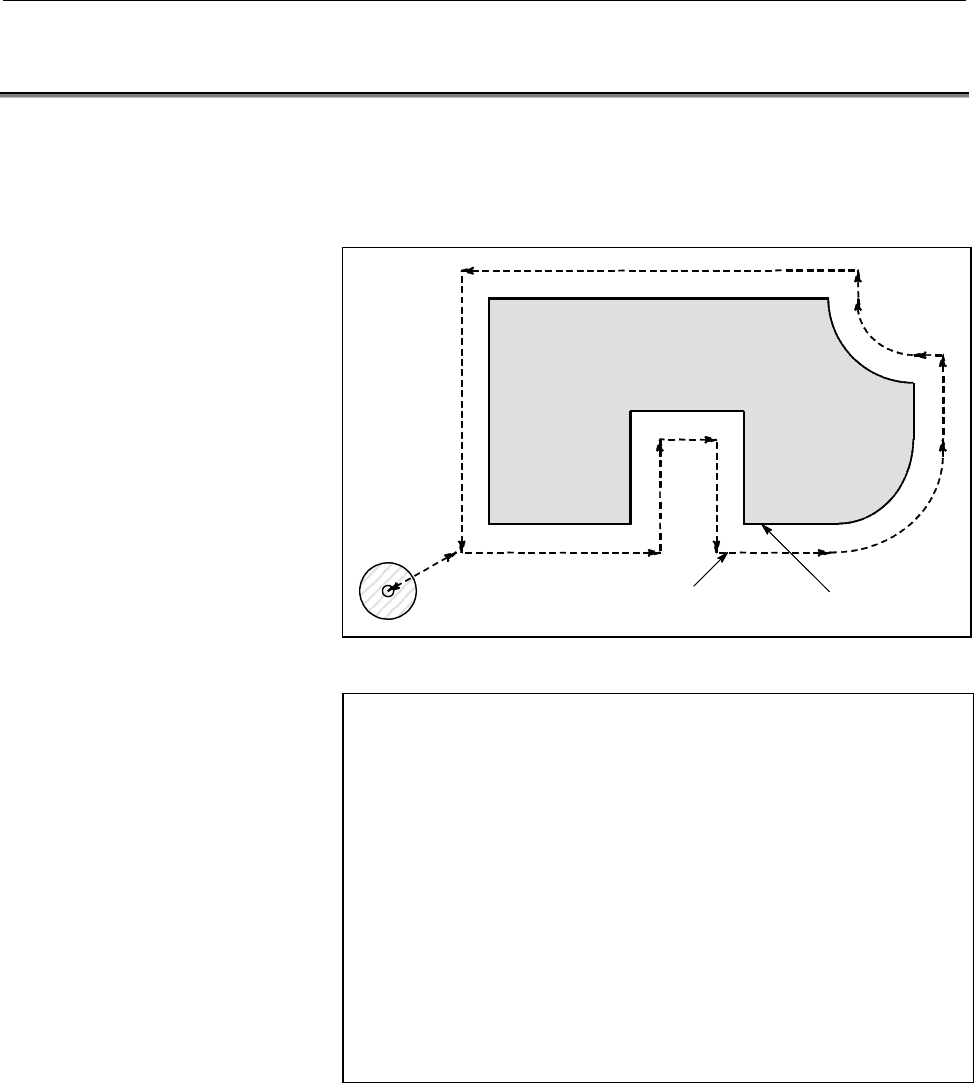

Programmed path

Tool center path

Tool

Workpiece
