B-63784EN/01 PROGRAMMING 14.COMPENSATION FUNCTION

- 447 -

14.4.5 Overcutting by Cutter Compensation

Explanations

- Machining an inside corner at a radius smaller than the cutter radius

When the radius of a corner is smaller than the cutter radius, because

the inner offsetting of the cutter will result in overcuttings. When the

interference check alarm function described later is enabled (parameter

CNI (No.6001#6)=0, parameter CAV (No.6008#5)=0), an alarm is

generated immediately after the previous block starts, and the operation

stops. When the previous block stops in single block operation,

however, overcutting may occur because the cutter moves up to the end

of the block.

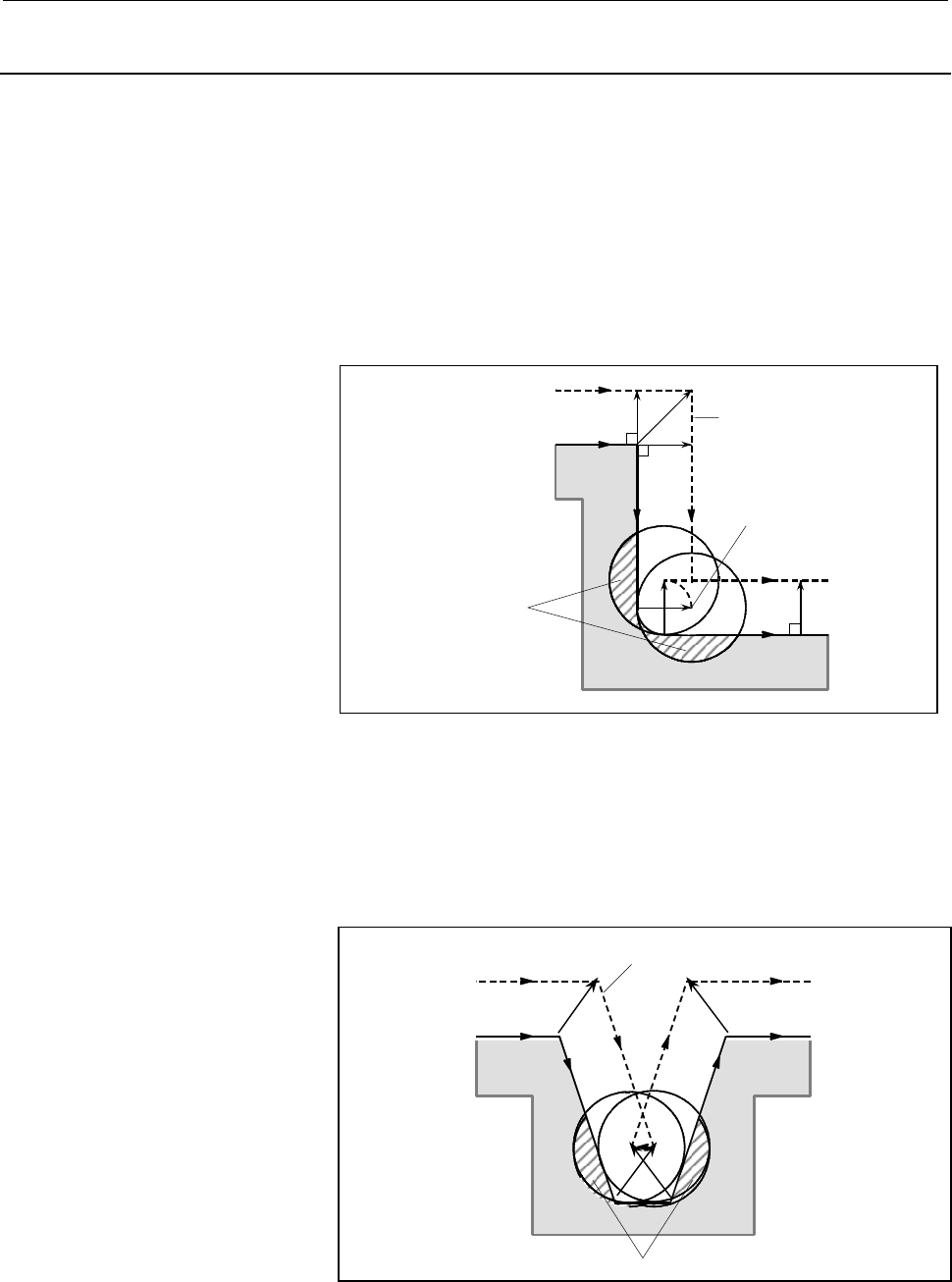

If the CNC does not

stop, overcutting

occurs

Programmed path

Tool center path

Workpiece

An alarm is generated and

the operation stops

An alarm is generated and the

operation stops here in single

block operation

- Machining a groove smaller than the tool radius

Since the cutter compensation forces the path of the center of the tool to

move in the reverse of the programmed direction, overcutting will

result. When the interference check alarm function described later is

enabled (parameter CNI (No.6001#6)=0, parameter CAV (No.6008#5)

=0), an alarm is generated immediately after the previous block starts,

and the operation stops.

Programmed path

Tool center path

Workpiece

n alarm is displayed and the

operation stops

Overcutting if the operation would not stop
