B-63784EN/01 PROGRAMMING 13.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 385 -

- Rotation direction of the table rotary axis

Let's take a mixed type machine shown Fig.13.10(j) as an example.

Setting parameter No. 6170 to 1 specifies that the rotation direction of

the rotary table corresponding to the positive-direction move command

be clockwise as viewed from the positive direction of the rotation

center axis on which the table rotary axis rotates. Resetting parameter

No. 6170 to 0 specifies that that rotation direction be counterclockwise.

Let's take the movement of the table when G53.1 is issued in O400

(sample program 4) as an example.

If parameter No. 6170 = 1, control is performed in such a way that A-

45.0 is attained.

If parameter No. 6170 = 0, control is performed in such a way that

A45.0 is attained.

O400 (Sample Program4) ;

N1 G68.2 X100.0 Y100.0 Z0 I180.0 J45.0 K0 ;

N2 G53.1 ;

N3 . . . ;

G53.1 command

CCW

Rotation to A-45.0

CCW

Rotation to A45.0

CCW

G53.1 command

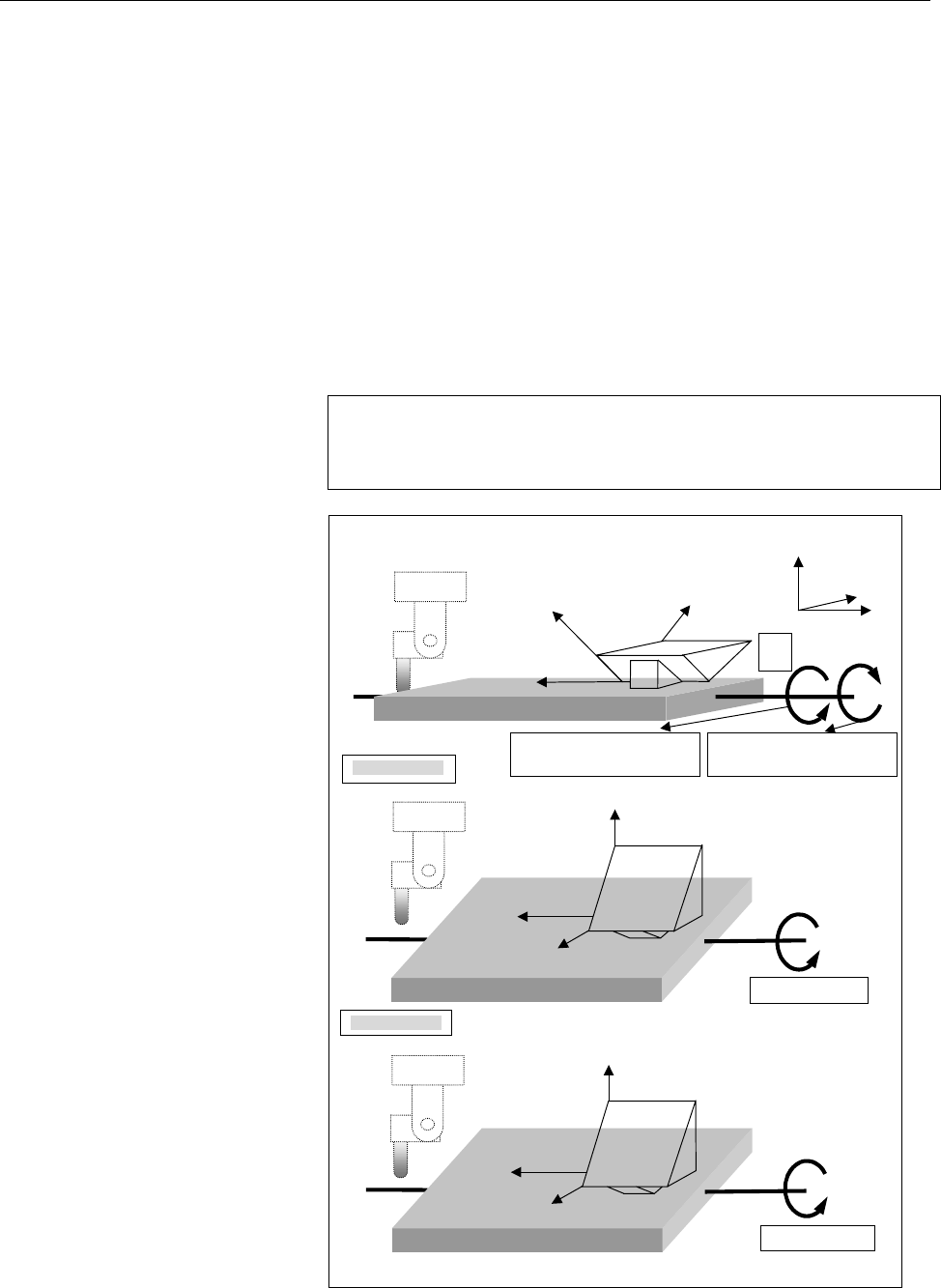

Positive rotation direction when

parameter No. 6170 = 0

Positive rotation direction when

parameter No. 6170 = 1

Fig.13.10 (l)
