13.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63784EN/01

- 342 -

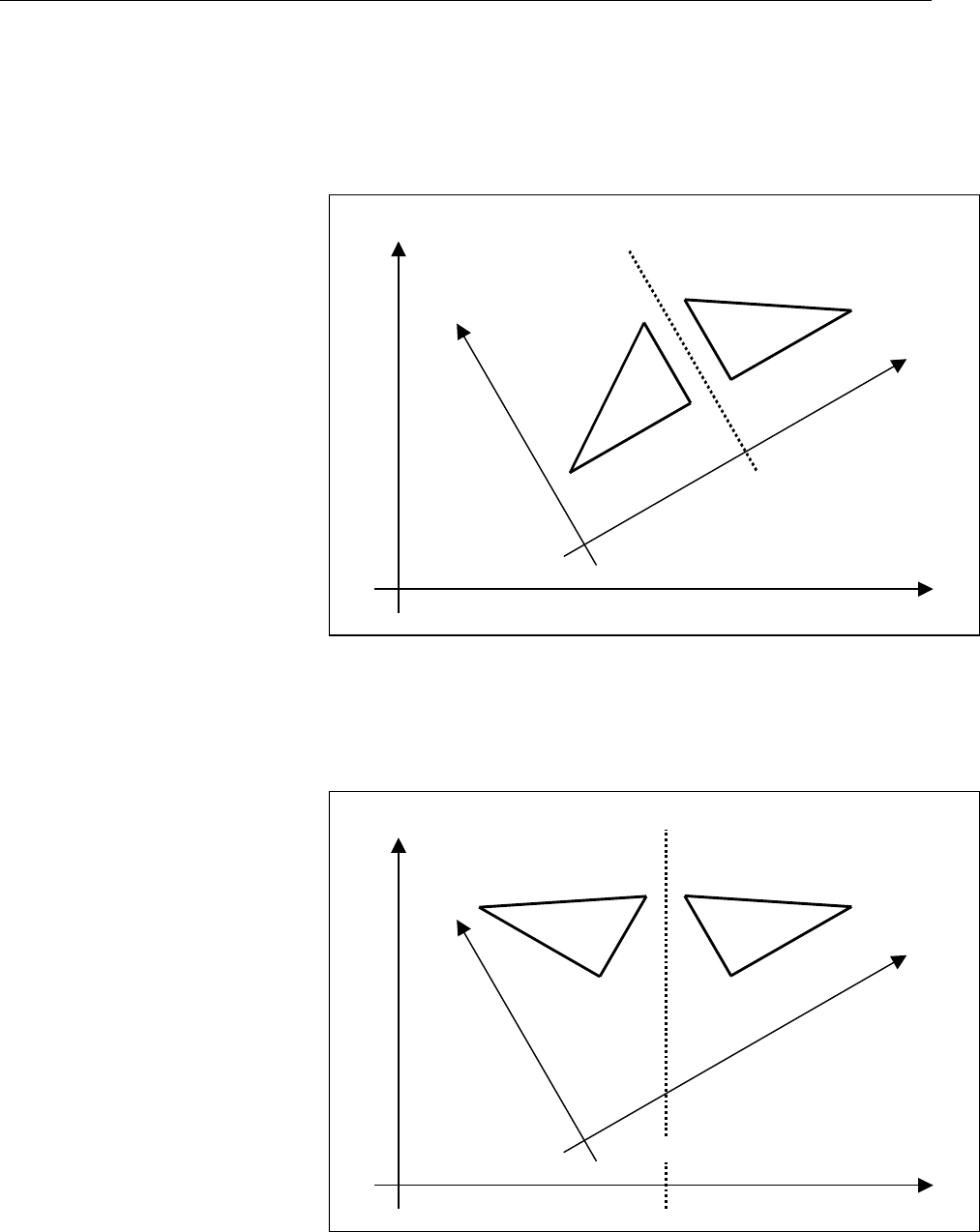

- Three-dimensional coordinate conversion

When three-dimensional coordinate conversion and programmable

mirror image are used at the same time, programmable mirror image is

applied to the coordinates in the program coordinate system, then

three-dimensional coordinate conversion is performed.

Workpiece coordinate system

Program coordinate system

Mirror center

Programmed path

Actual path

- Three-dimensional coordinate conversion and external mirror image

When three-dimensional coordinate conversion and external mirror

image are used at the same time, three-dimensional coordinate

conversion is performed first, then external mirror image is applied.

Workpiece coordinate system

Program coordinate system

Mirroring position

Programmed pathActual path
