14.COMPENSATION FUNCTION PROGRAMMING B-63784EN/01

- 606 -

Limitations

- Interference check

In G41.5 or G42.5 mode, an interference check is performed using a

specified position in the workpiece coordinate system and a

compensation vector. The interference check avoidance function

cannot be used.

- Corner arc (G39)

In G41.5 or G42.5 mode, G39 cannot be issued. Otherwise, an alarm

will be issued.

- Manual intervention

In G41.5 or G42.5 mode, manual intervention must not be performed

on the rotation axis.

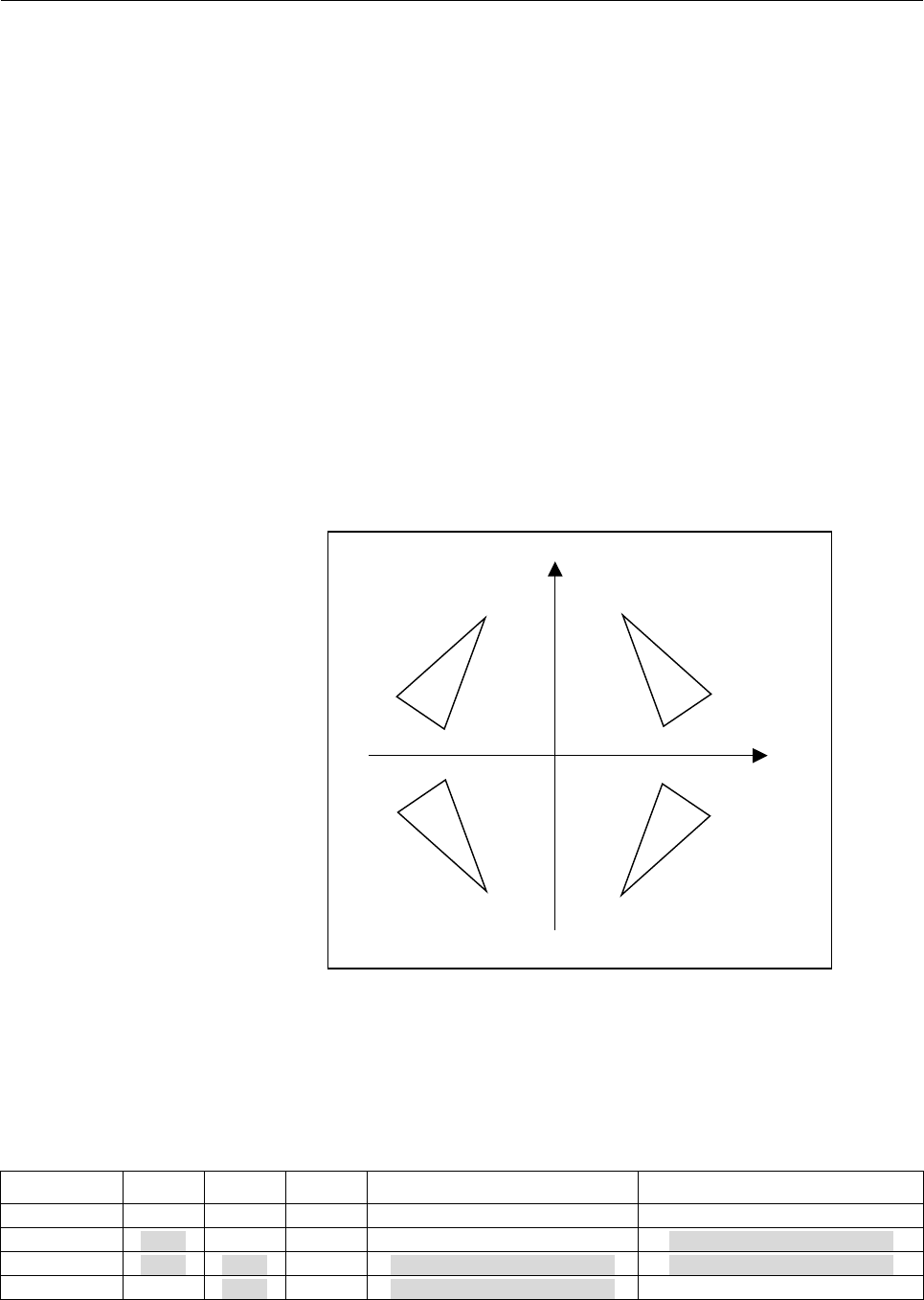

- Programmable mirror image (G50.1 or G51.1)

The same mirror must be applied to both the linear and rotation axes.

2nd quadrant

1st quadrant

3rd quadrant

4th quadrant

For example, suppose machining on the XY plane using a composite

machine with the tool rotation axis about the X-axis being assumed the

A-axis and the table rotation axis about the Z-axis being assumed the

C-axis.

If the basic figure in the first quadrant is to be converted into the figures

in the second, third, and fourth quadrants using a programmable mirror

image, the programmable mirror image must be used as follows:

XYZ A C

1st quadrant Normal Normal Normal Normal Normal

2nd quadrant Mirror Normal Normal Normal Mirror centered on 0 degrees

3rd quadrant Mirror Mirror Normal Mirror centered on 0 degrees Mirror centered on 0 degrees

4th quadrant Normal Mirror Normal Mirror centered on 0 degrees Normal
