14.18 GRINDING WHEEL WEAR COMPENSATION

On a specified compensation plane, a compensation vector is created on an

extension of a straight line starting from a specified point (compensation

center) toward a command end point.

Com

ensation vecto

Pro

rammed

ath

Tool center path

Compensation center

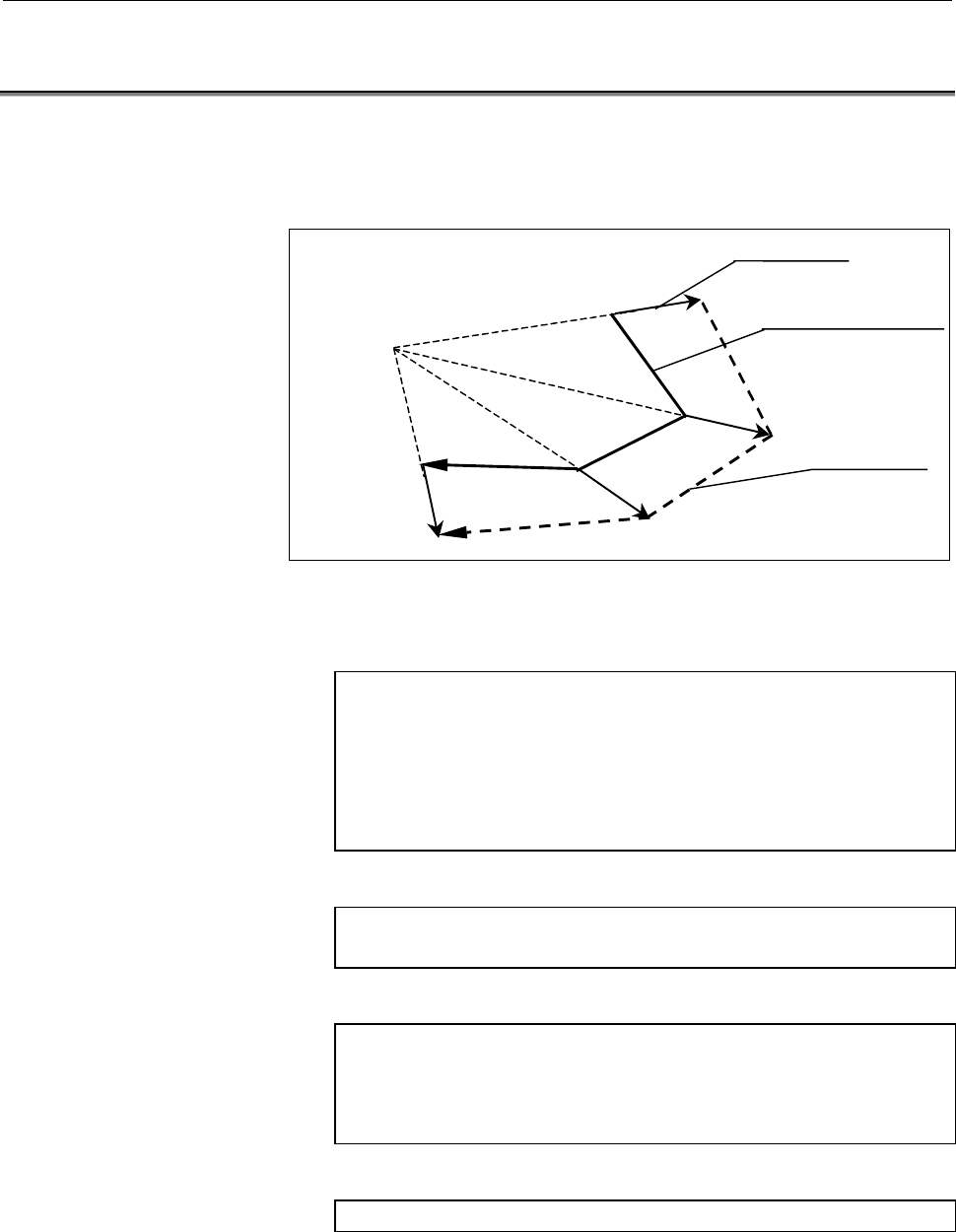

Fig. 14.18 (a) Grinding Wheel Wear Compensation

Format

- Grinding wheel wear compensation (start of grinding wheel wear compensation)

G41 P_ D_ ;

P_ : Number of compensation center position

P1 (Selection of first compensation center)

P2 (Selection of second compensation center)

P3 (Selection of third compensation center)

D_ : Non-zero offset number

- Canceling the compensation vector

D0;

Cancels only the compensation vector.

- Maintaining the compensation vector

G40 ;

When a D code with a non-zero value has been specified,

specifying G40 sets the mode in which the compensation

vector is maintained.

- Canceling grinding wheel wear compensation

G40 D0 ;
