14.COMPENSATION FUNCTION PROGRAMMING B-63784EN/01

- 506 -

- Examples of machine configuration and rotation axis calculation formats

Let Vx, Vy, Vz, Lc, a, b, and c be as follows :

Vx,Vy,Vz : Tool compensation vectors along the X-axis, Y-axis,

and Z-axis

Lc : Offset value

a,b,c : Absolute coordinates on the A-axis, B-axis and C-

axis

Then, the tool compensation vector on each axis in each machine

configuration is indicated below.

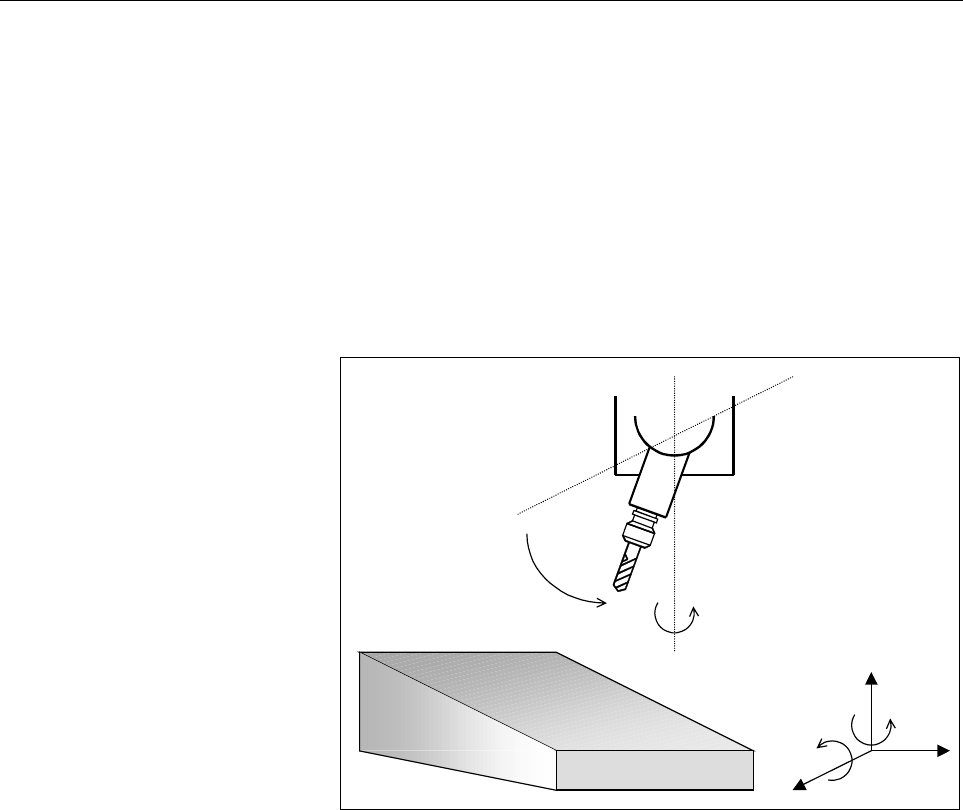

(1) A-axis and C-axis, with the tool axis on the Z-axis

Workpiece

Vx = Lc * sin(a) * sin(c)

Vy = -Lc * sin(a) * cos(c)

Vz = Lc * cos(a)

Contents Summary of Series 15i/150i-MB Operators manual
