5.POWER SUPPLY I/O Link B-65322EN/02

- 196 -

5.1 INPUT POWER SUPPLY

5.1.1 Three-phase Input Power Supply for Motor Power

See Subsection 5.1.1 “Three-phase Input Power Supply for Motor

Power” in Part I.

5.1.2 Single-phase Input Power Supply for Motor Power

See Subsection 5.1.2 “Single-phase Input Power Supply for Motor

Power" in Part I.

5.1.3 Control Power

Be sure to use a stabilized power supply as the 24-V power supply for

the βi SVM. The 24-V power supply for motor brakes cannot be

shared.

- Nominal rated voltage: 24VDC

- Allowable voltage fluctuation:

±10% (including momentary variations and ripples)

- Power supply rating: 0.9 A (per βi SVM unit)

5.1.3.1 Sequence for turning on control power supply

Turn on the control power supply of the βi SVM at the same time

when the power to the host controller connected via the I/O Link is

turned on or before the host controller is turned on. When turning

off the power to the host controller, be sure to also turn off the control

power supply of the βi SVM.

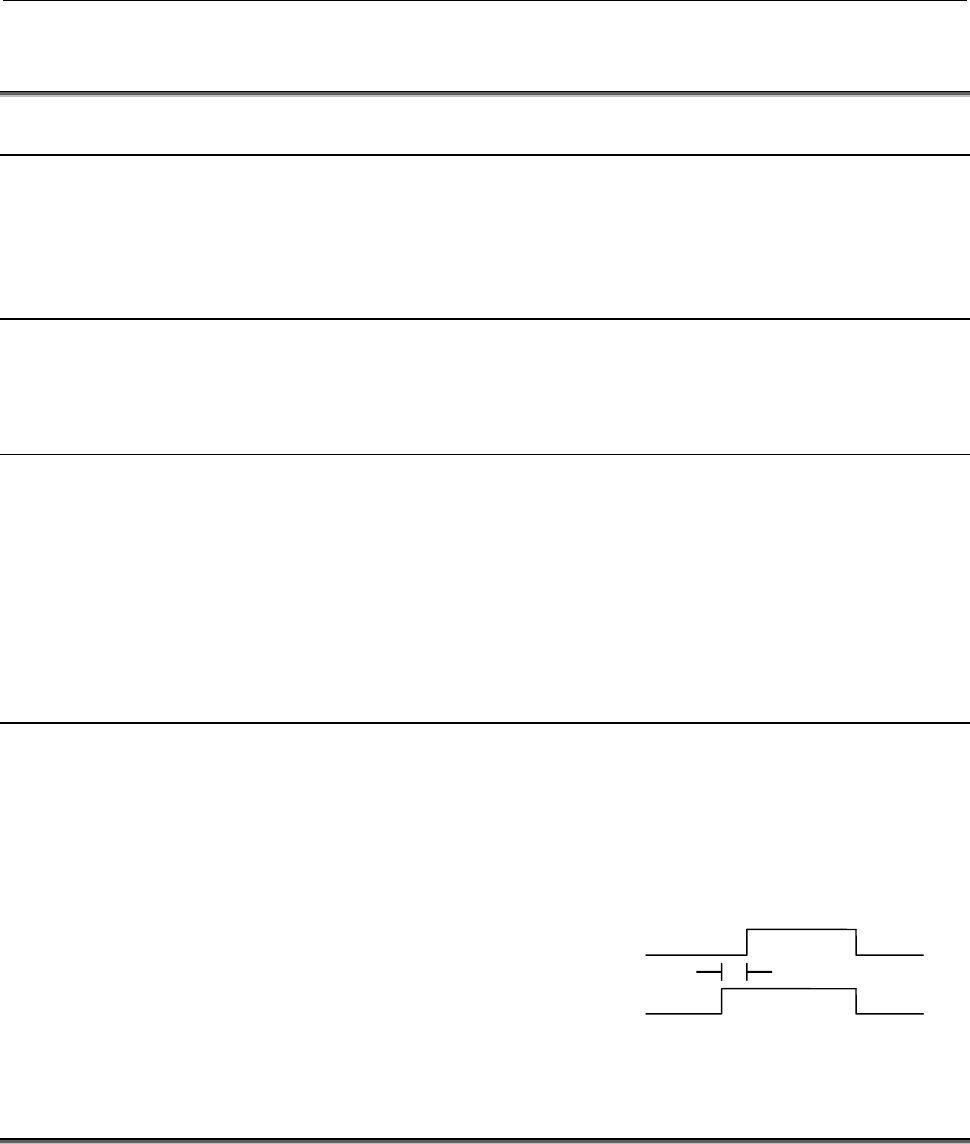

Host controller power supply On

Off

βi SVM control power supply On

Off

t: 0 or more

5.2 POWER TRANSFORMER FOR EXPORTS

See Section 5.2 “POWER TRANSFORMER FOR EXPORTS" in Part
