9.TOTAL CONNECTION DIAGRAM SVM B-65322EN/02
- 70 -
9.2 CONNECTOR LOCATION

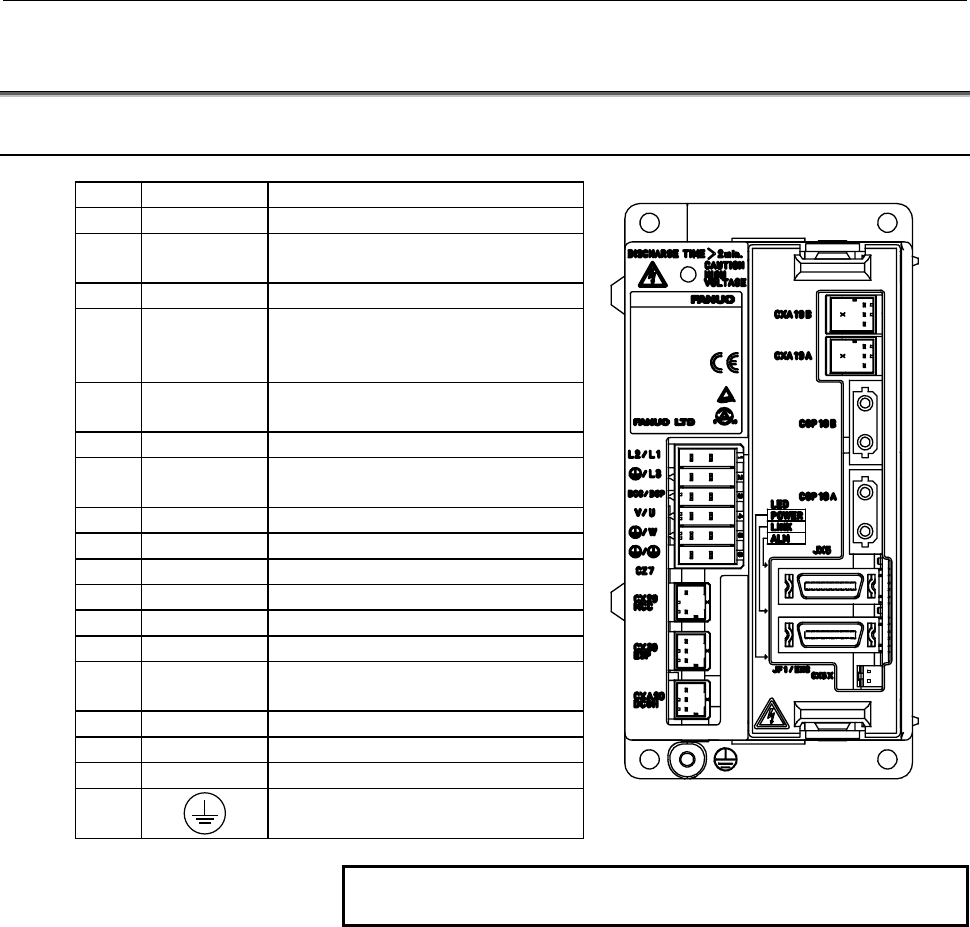

9.2.1 SVM1-4i and SVM1-20i
No. Name Remarks
1 DC link charge LED
2
CZ7-1
CZ7-2
Main power input connector
3 CZ7-3 Discharge register connector
4
CZ7-4
CZ7-5
CZ7-6
Motor power connector
5 CX29
Connector for main power MCC
control signal
6 CX30 ESP signal connection connector
7 CXA20
Regenerative resistor connector (for
alarms)
8 CXA19B 24VDC power input
9 CXA19A 24VDC power input
10 COP10B Servo FSSB I/F
11 COP10A Servo FSSB I/F
12 ALM Servo alarm status display LED
13 JX5 Connector for testing(*1)
14 LINK
FSSB communication status display
LED
15 JF1 Pulsecoder
16 POWER Control power status display LED
17 CX5X Absolute Pulsecoder battery
18
Tapped hole for grounding the flange
NOTE
*1 Connect nothing to JX5, and leave it open.
