B-65322EN/02 I/O Link 9.TOTAL CONNECTION DIAGRAM

- 217 -

9.2.3 Connection Tools

See Subsection 9.2.3 “Connection Tools" in Part I.

9.2.4 Details of Cable K1

9.2.4.1 Servo motor αi, αis series, Servo motor βis series (β0.4/5000is

β22/2000is)

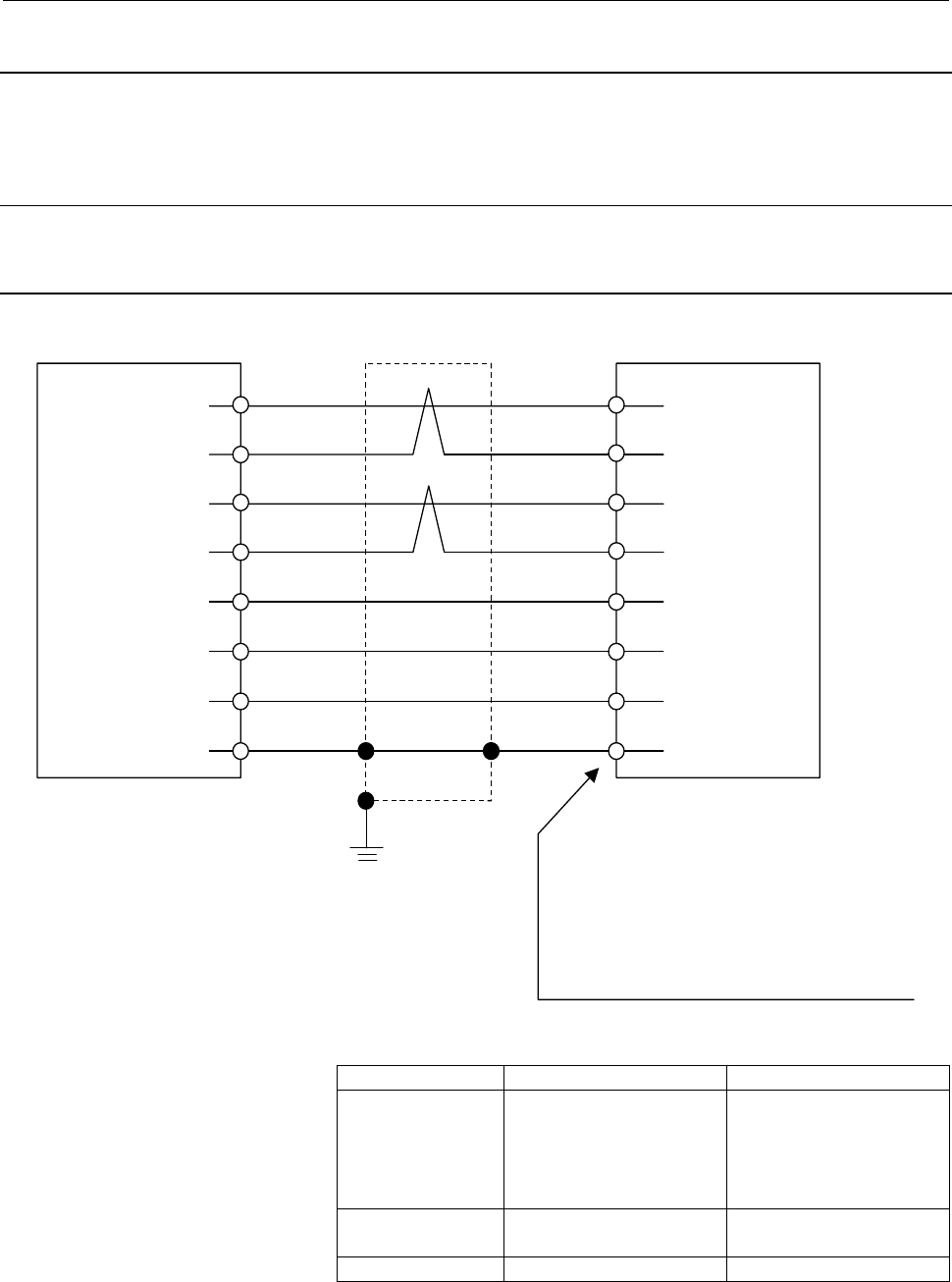

（9, 20）

（12, 14）

βi SVM

（7）

（8, 9）

（7, 10）

（4）

（16）

（3）

（5）

（6）

REQ

＊REQ

（6）

（5）

（1）

（2）

＊SD

（2）

（1）

Servo motor

20-pin half-pitch connector

Drain wire

Grounding

plate

Shield

Connector (Japan Aviation Electronics Industry)

JN2x S10SL1 : for φ5.7 to 7.3 sheath diameter

JN2x S10SL2 : for φ6.5 to 8.0 sheath diameter

D : Straight plug

F : Angle plug

Contact (Japan Aviation Electronics Industry)

JN1-22-22S

Using cable conductor

Cable length

28 m or less 50 m or less

5V, 0V,6V

0.3mm

× 5

Wire construction

12/0.18 or 60/0.08

Insulation outer diameter

φ1.5 or less

0.5mm

× 5

Wire construction

20/0.18 or 104/0.08

Insulation outer diameter

φ1.5 or less

SD, *SD, REQ,

*REQ

0.18mm

or more

Twisted-pair wire

0.18mm

or more

Twisted-pair wire

Drain wire

0.15mm

or more 0.15mm

or more

* This applies also to the αMi and αCi series servo motors.
