B-65322EN/02 SVM 6.INSTALLATION CONDITIONS AND NOTES

- 39 -

6.4 INSTALLING LIGHTNING SURGE ABSORBERS

At the power input of the power magnetics cabinet, install a surge

absorber between the power lines and between each power line and a

ground to protect the unit from a voltage surge caused by lightning.

How to install the surge absorber is shown below.

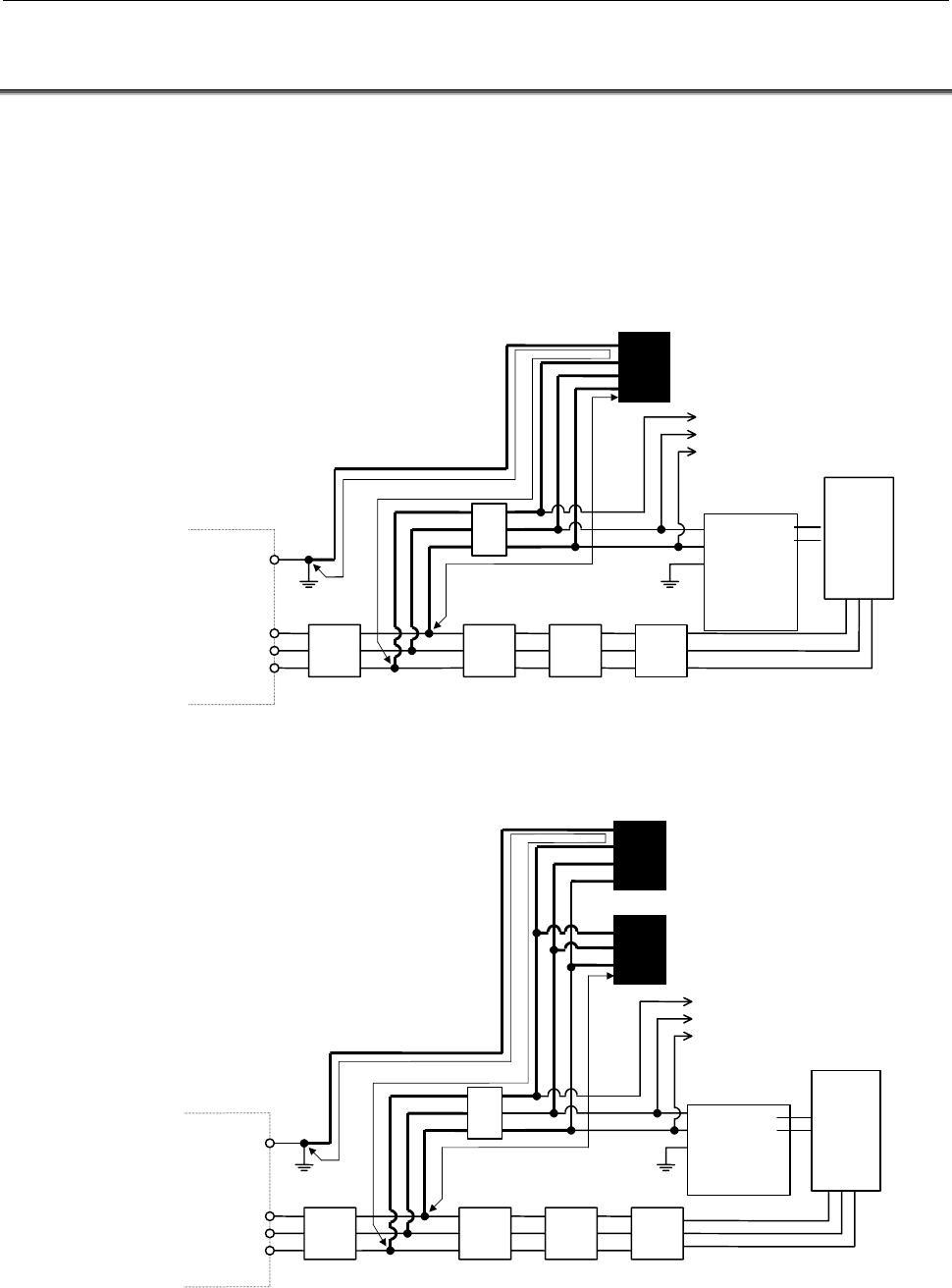

(1) Surge absorber for three-phase input

When using an integrated lightning surge absorber between the

power lines and between each power line and a ground

(a)

(b)

Main circuit

power

input

Control power

supply input

200VAC

i SVM

Stabilized

power

supply

(24 VDC)

To other units

Lightning surge absorber between powe

lines and between each power line and

ground (R.C.M-601BUZ-4)

Circuit

breaker 1

Magnetic

contactor

C line filter

Circuit breaker 2

(5A)

Ground-fault circuit interrupte

for power magnetics cabinet

Ground plate

When using separate lightning surge absorbers between the power

lines and between each power line and a ground

(a)

(b)

Main circuit

power

input

200VAC

Control power

input

iSVM

Stabilized

power supply

(24 VDC)

To other units

Lightning surge absorber between

power lines (R.A.V-781BYZ-2)

Circuit

breaker 1

Magnetic

contactor

C line filter

Circuit breaker 2

(5A)

Ground-fault circuit interrupter

for power magnetics cabinet

Ground plate

Lightning surge absorber between

each power line and ground

(R.A.V-781BXZ-2)

i SVM
