9.TOTAL CONNECTION DIAGRAM I/O Link B-65322EN/02

- 238 -

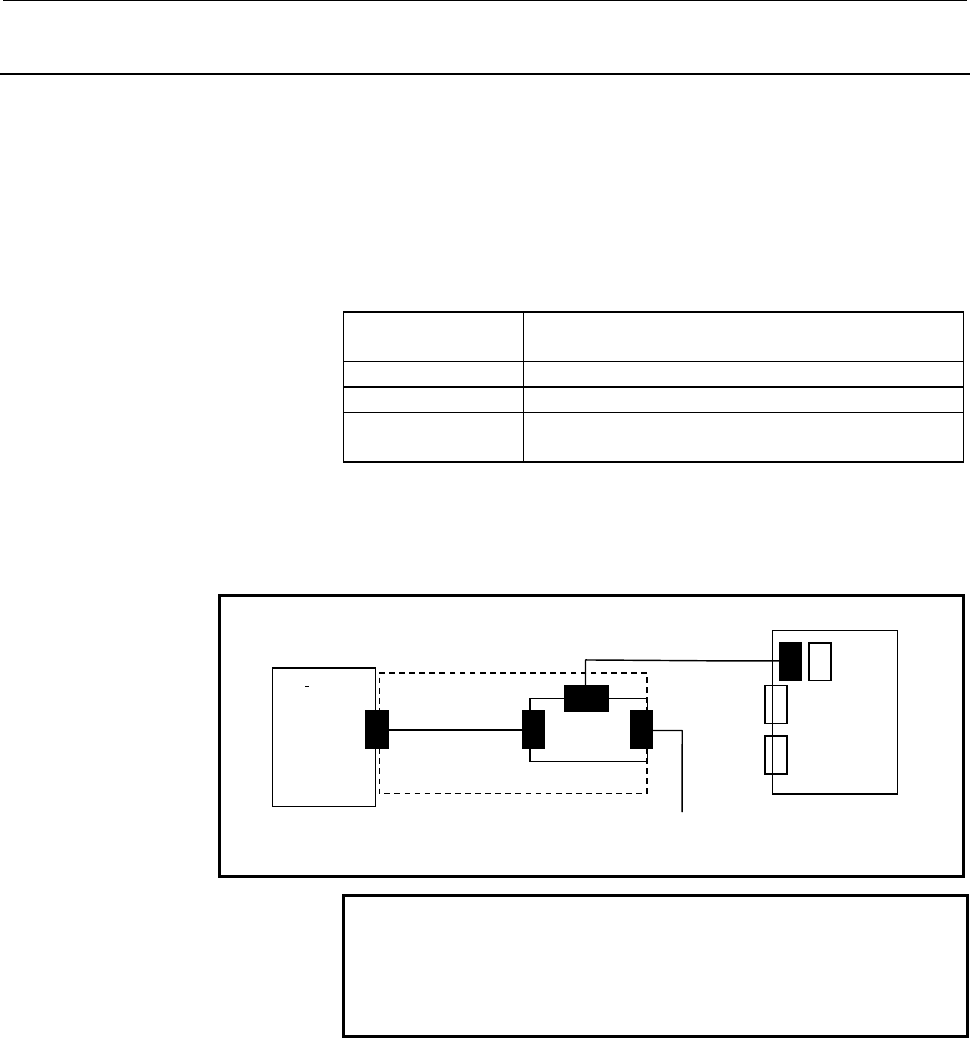

9.2.17 Connection to Servo Check Board

The servo check board converts digital values used for control in the

digital servo system into analog voltages to allow observation with

instruments such as an oscilloscope.

Ordering specification

A cable with a reverse connection prevention feature and a servo

check board adapter are required to connect the servo check board to

the βi SVM.

Ordering

specification

Name

A06B-6057-H630 Servo check board

A06B-6050-K871 Cable with reverse connection prevention feature

A06B-6093-K021

Servo check board adapter

(adapter board and cable, both dedicated to

βi SVM)

Connection

Before installing and removing the servo check board, turn off the

power to the βi SVM.

NOTE

The servo check board adapter and the servo

check board may be connected only when

adjustments are made. Never start operation

while they are left connected.

βi SVM

JD1A

JN1

TEST

To the stage that follows the I/O Link

JD1A

CNI1

dapter board + cable

06B-6093-K021

Servo check board

06B-6057-H630

Cable with reverse

insertion prevention

feature

06B-6050-K871

K20
