Servo Amplifier Beta i Descriptions Page 239

Descriptions
B-65322EN/02 I/O Link 9.TOTAL CONNECTION DIAGRAM
- 215 -

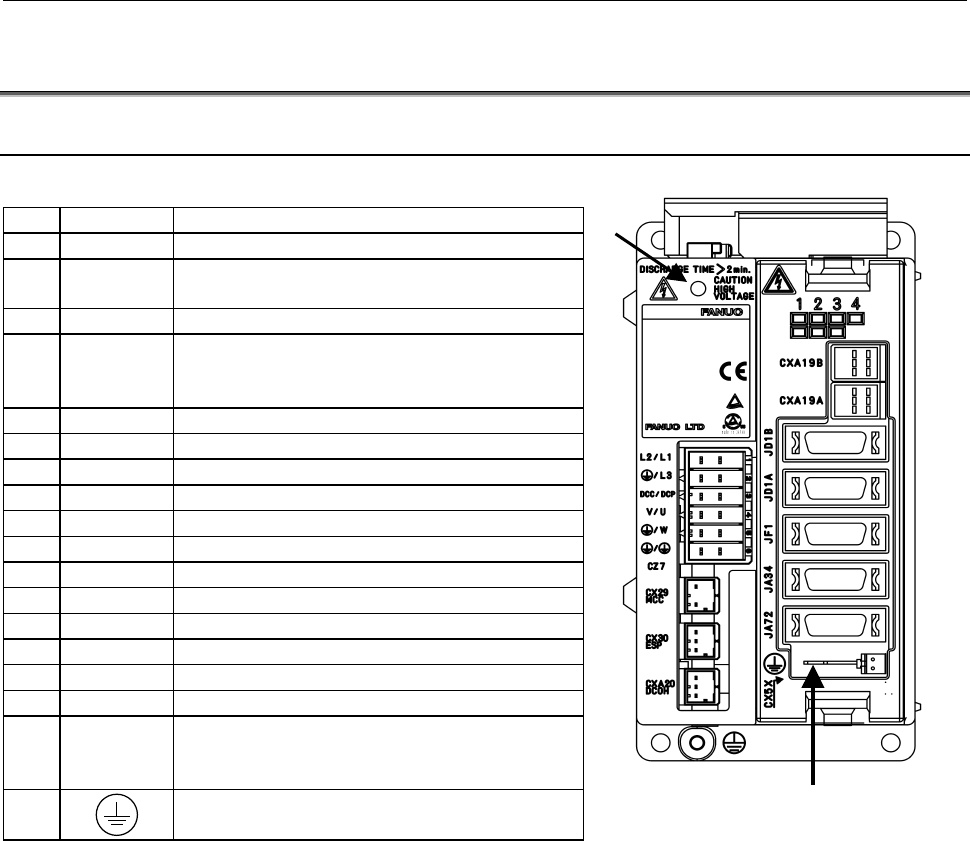

9.2 CONNECTOR LOCATION
9.2.1 SVM1-4i and SVM1-20i
No. Name Remarks
1 DC link charge LED
2
CZ7-1
CZ7-2
Main power input connector
3 CZ7-3 Discharge register connector
4
CZ7-4
CZ7-5
CZ7-6
Motor power connector
5 CX29 Connector for main power MCC control signal
6 CX30 ESP signal connection connector
7 CXA20 Regenerative resistor connector (for alarms)
8 LED LED for status display
9 CXA19B 24VDC power input
10 CXA19A 24VDC power output
11 JD1B Connector for I/O Link (to previous stage)
12 JD1A Connector for I/O Link (to following stage)
13 JF1 Connector for Pulsecoder
14 JA34 Connector for external pulse input
15 JA72 Connector for bult-in DI
16 CX5X Absolute Pulsecoder battery
17
Signal
grounding
terminal
Grounding terminal of control section
18
Tapped hole for grounding the flange
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(18)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
