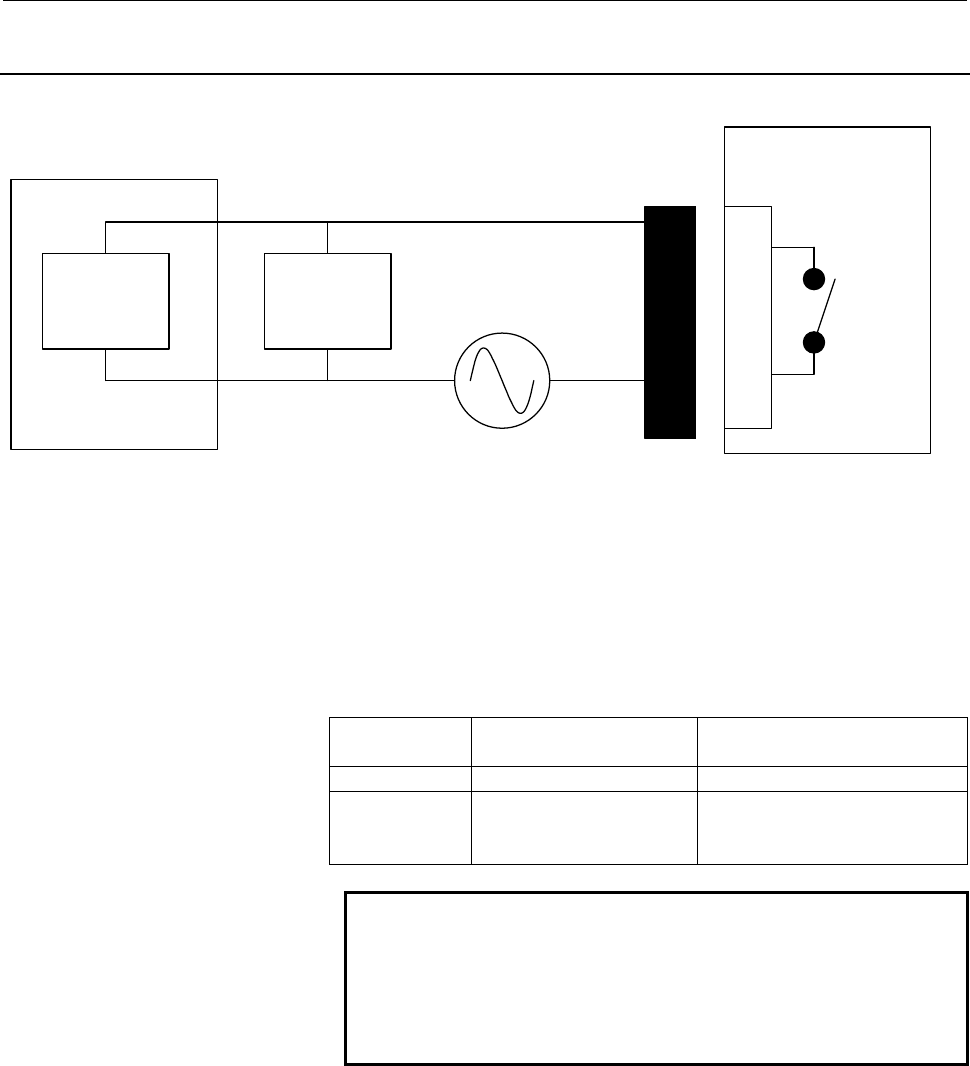

9.2.9 Details of Cable K7
β
i
SVM
CX29
Internal
contact
Coil
Spark killer
External power supply
(Use an appropriate power supply for the coil voltage
the customer uses.)
MCC
1
3
D-2000 series
Housing : 3-1318130-3
Contact : 1318107-1
A
pplicable wire: 0.3 to 0.85 mm
2
Manufacture : Tyco Electronics AMP
For connection tools, see Subsection 9.2.3 in Part I.
Internal contact capacity
Resistance load
(COSφ=1)
Inductive load
(COSφ=0.4, L/R=15msec)
Rated load AC250V, 3A/ DC24V, 5A AC250V, 2A/ DC24V, 1A
Maximum
contact
capacity
5A 5A
NOTE
1 To protect the internal contact, be sure to insert a
spark killer (CR) that matches the magnetic
contactor used.
2 It is recommended that one MCC be installed per
βi SVM unit.
