B-65322EN/02 I/O Link 9.TOTAL CONNECTION DIAGRAM

- 235 -

Manual pulse generator adapter

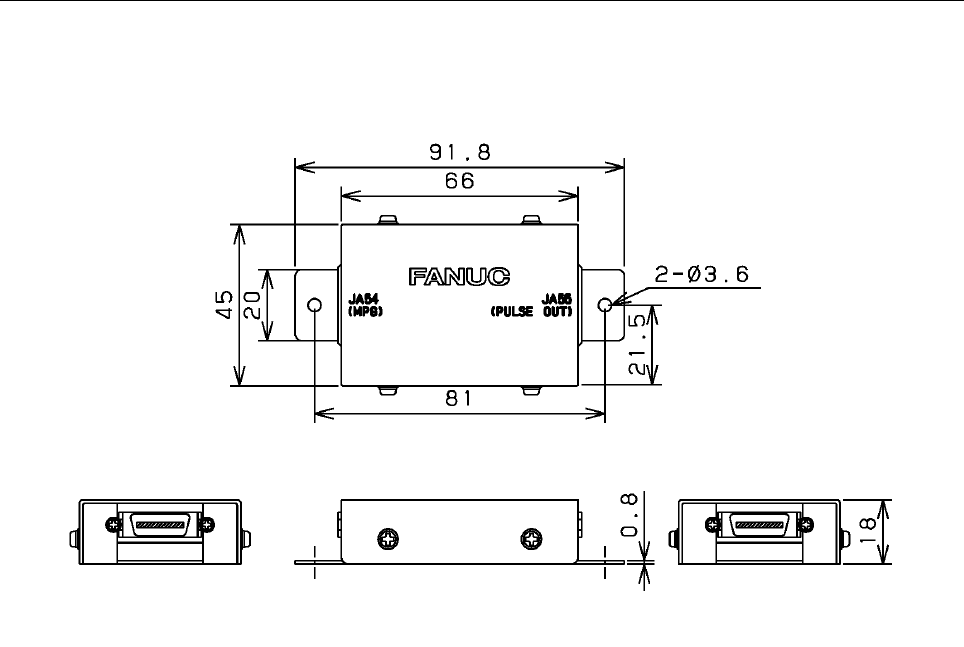

- Dimensions

Weight: Approximately 100 g

- Installation condition

Because the manual pulse generator adapter does not have a sealed

structure, it must be installed in a sealed cabinet similar to the cabinet

of the βi SVM.

The manual pulse generator adapter has two 3.6-diameter holes. Use

these holes to secure the adapter.

Because being lightweight, the manual pulse generator adapter need

not secured with screws. However, be careful not to allow the

adapter to touch other electrical circuits to cause short-circuit.

Ground the case by using the case mounting screw of the manual

pulse generator adapter.
