Servo Amplifier Beta i Descriptions Page 97

Descriptions

Page of 315

/ 315

B-65322EN/02 SVM 9.TOTAL CONNECTION DIAGRAM

- 73 -

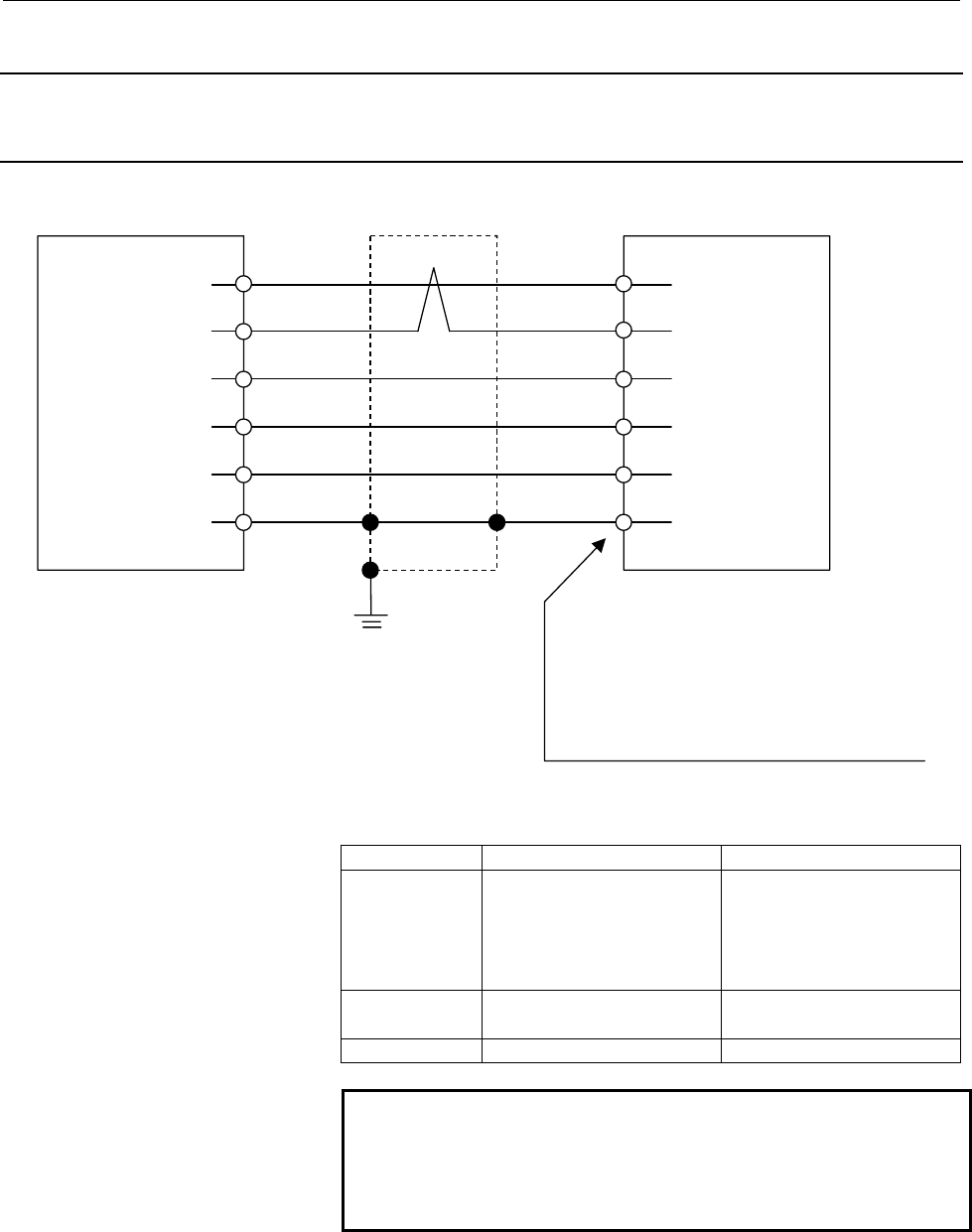

9.2.4 Details of Cable K1

9.2.4.1 Servo motor αi, αis series, Servo motor βis series (β0.4/5000is

β22/2000is)

(5)

Servo motor

20-pin half-pitch connector

(6)

(9, 20)

(12, 14)

SVM

(7)

*RD

(6)

(5)

(8, 9)

(7, 10)

(4)

(16)

(3)

Drain wire

Grounding

plate

Shield

Connector (Japan Aviation Electronics Industry)

JN2x S10SL1 : for

5.7 to 7.3 sheath diameter

JN2x S10SL2 : for

6.5 to 8.0 sheath diameter

D : Straight plug

F : Angle plug

Contact (Japan Aviation Electronics Industry)

JN1-22-22S

Using cable conductor

Cable length 28 m or less 50 m or less

5V, 0V,6V

0.3mm

× 5

Wire construction

12/0.18 or 60/0.08

Insulation outer diameter

φ1.5 or less

0.5mm

× 5

Wire construction

20/0.18 or 104/0.08

Insulation outer diameter

φ1.5 or less

RD, *RD

0.18mm

or more

Twisted-pair wire

0.18mm

or more

Twisted-pair wire

Drain wire 0.15mm

or more 0.15mm

or more

NOTE

The ground plate to which the shield is connected

must be placed as close as possible to the servo

amplifier so that distance between the ground plate

and the servo amplifier becomes shortest.

* This applies also to the αMi and αCi series servo motors.
