Servo Amplifier Beta i Descriptions Page 224

Descriptions

Page of 315

/ 315

7.GROUNDING I/O Link B-65322EN/02

- 200 -

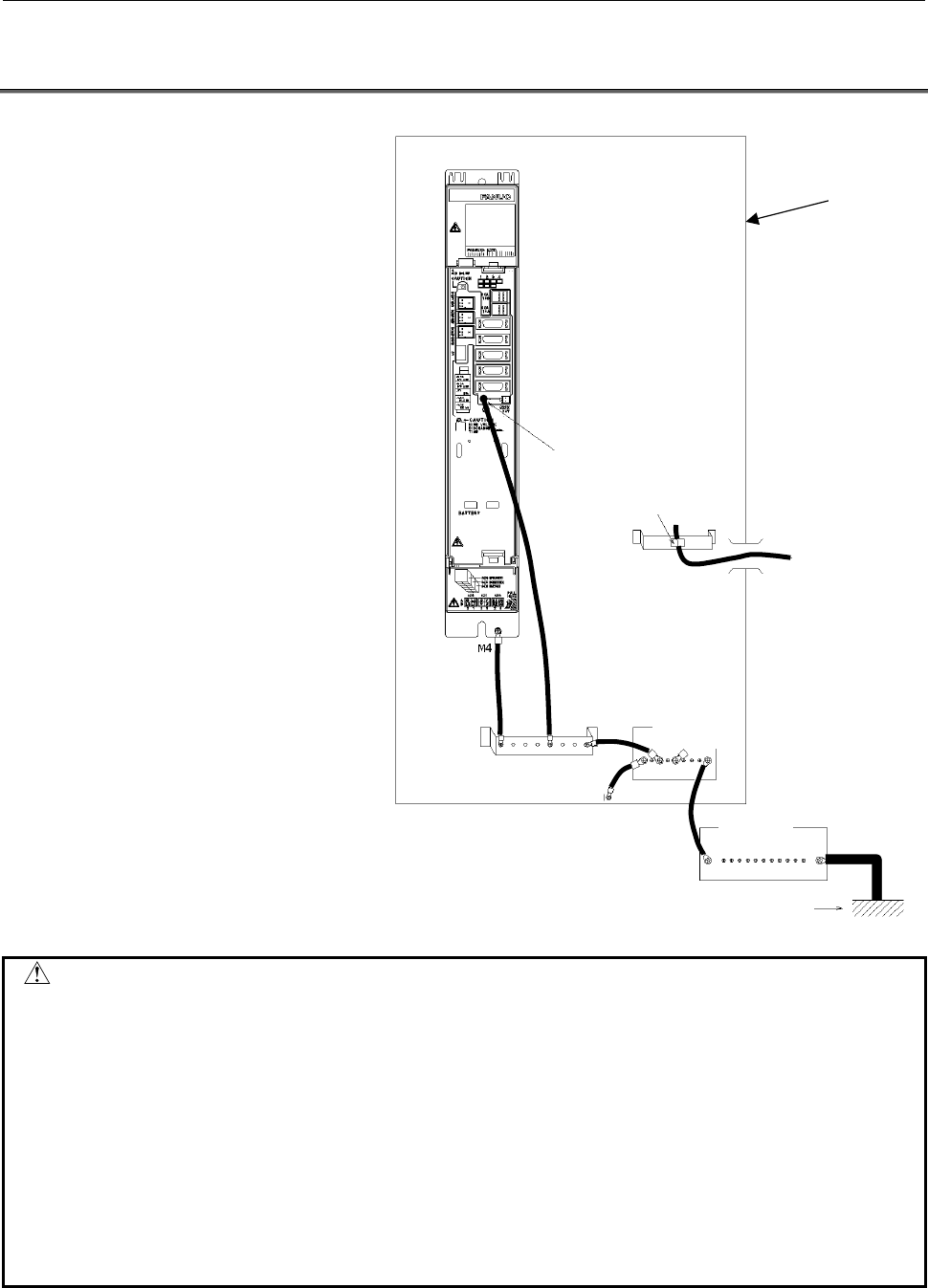

7.2 SVM1-40i and SVM1-80i

signal grounding

terminal

Clamp shield

External shielded

cable

Ground plate

Connected to cabinet

Distribution

panel

Distribution

panel

Class-3 ground or higher

Cabinet

CAUTION

1 Ground the shield of the cable drawn from the outside of the cabinet to the ground

plate provided near the cabinet inlet with a clamp. This is to prevent noise on the

cable shield outside the cabinet from getting into the cabinet and also to prevent

noise inside the cabinet from radiating outside.

2 Connect the signal grounding terminal of the βi SVM to a ground. Use a Faston

terminal (A65L-0001-0148/2) as the terminal on the βi SVM side. Use a 2-mm

thicker twisted cable with a length of around 100 to 300 mm for installation. If the

signal grounding terminal is not grounded as mentioned here, the unit becomes

more susceptible to noise.

3 The flange of the βi SVM has an M4 threaded hole for grounding. Use this hole

for grounding as shown in the above figure.
