Servo Amplifier Beta i Descriptions Page 285

Descriptions

Page of 315

/ 315

TITLE

DRAW

No.

10 / 17

Page

FANUC LTD

DESCRIPTION DESIGN DATE

EDIT

FANUC SERVO AMPLIFIER

βi series DESCRIPTIONS

B-65322EN/02-02

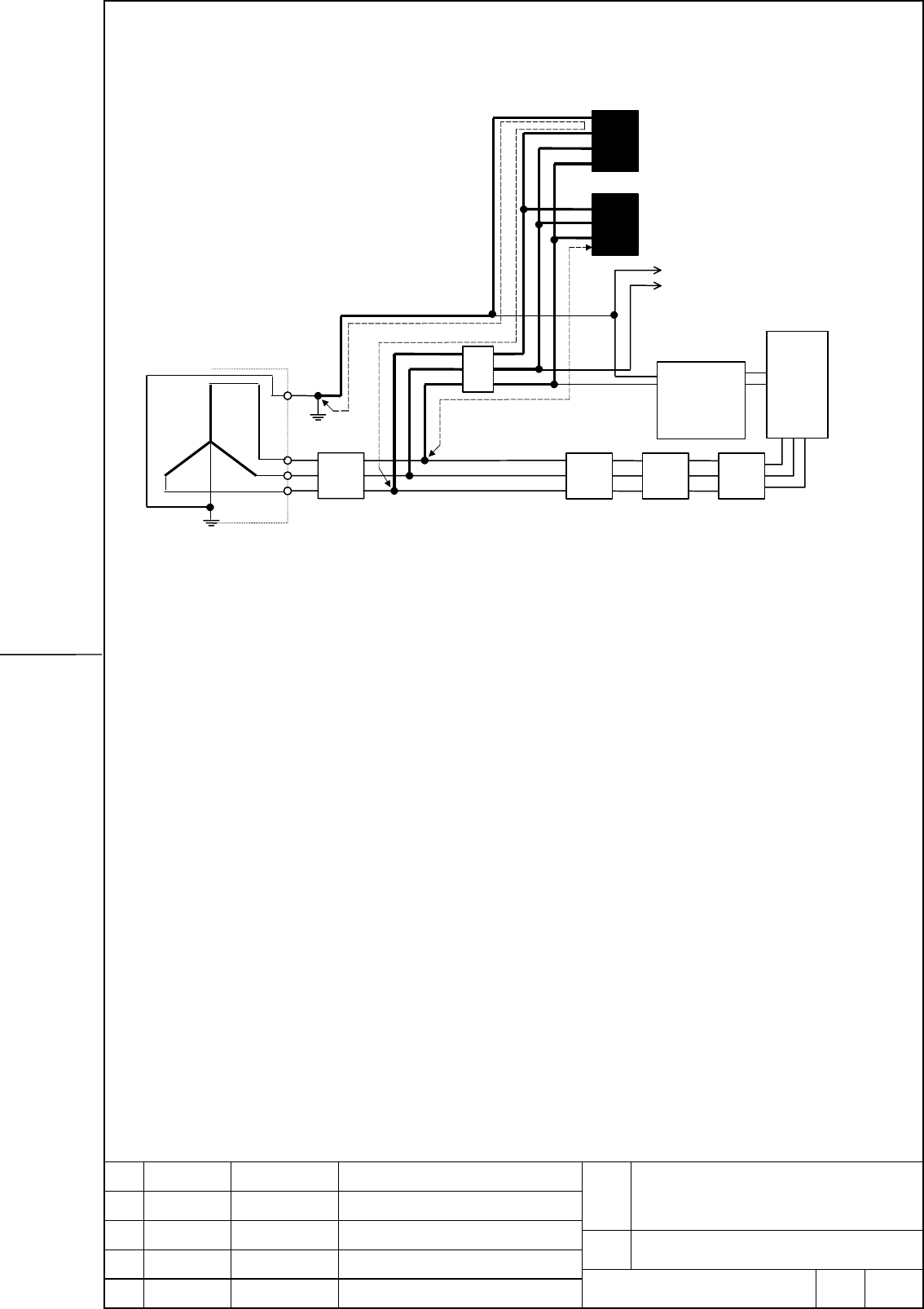

10. Installing of lighting surge absorber

Main circuit

power input

Power supply

(Grounded to a neutral point on

tthe Y wire)

C400V/480V

Control power

input

βiSVM

To other units

Lighting surge absorber between

power lines

(R.A.V-152BYZ-2A)

Circuit breaker 1

Magnetic

contactor

AC line filter

Ground-fault circuit

interrupter for power

magnetic cabinet

Ground plate

Lighting surge absorber between each

power line and ground

(R.A.V-801BXZ-4)

SVM

Circuit breaker 2 (5A)

(a)

(b)

Stabilized

power supply

(DC24V)

CAUTIONS

(1) To increase the efficiency of lightning surge absorption, the wires indicated by bold

lines should be as short as possible.

Wire cross-sectional area : 2 mm

or more

Wire length :

The total length of the cables used for line-to-line lightning surge protector (a) and

that used for line-to-ground lightning surge protector (b) must not exceed 2 m.

(2) When performing a dielectric strength test by applying an overvoltage to the power

line, line-to-ground lightning surge protector must be removed to enable the applied

voltage to be maintained.

(3) The circuit breaker 2 (5A) works for line protection when the lightning surge absorber

is short-circuited because of a surge higher than its rating being applied.

(4) Because current does not flow through lightning surge protector in a normal state, the

circuit breaker 2 (5A) can be used together with the surge absorbers as well as with

other equipment.
