Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 212

Descriptions

Page of 602

/ 602

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING B–63522EN/02

NC FUNCTION

184

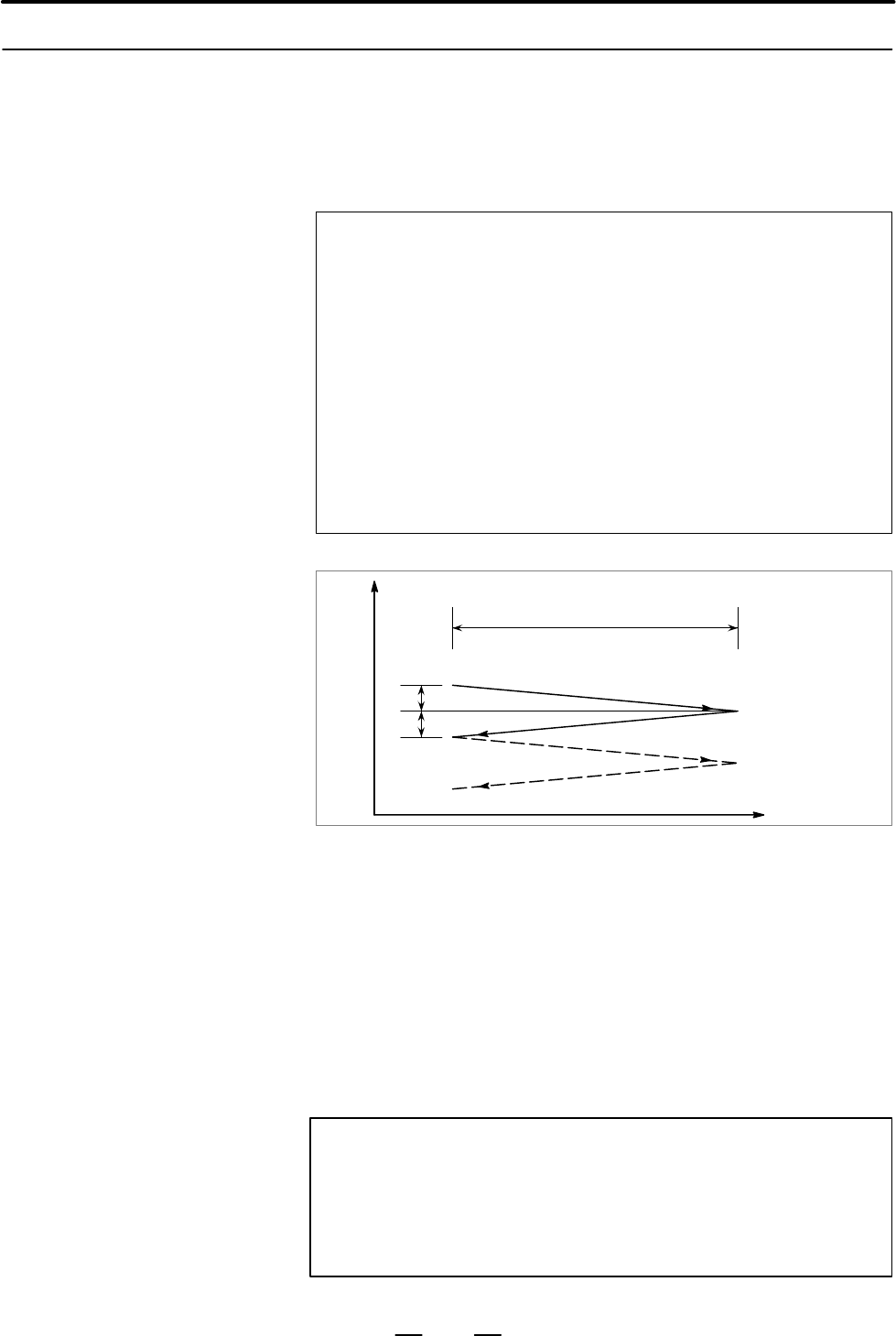

The continuous feed plane grinding cycle is possible by the following

command.

G78 I_ (J)_ K_ X_ R_ F_ P_ L_ ;

I : Cutting depth (Cutting direction is by command coding.)

J : Cutting depth (Cutting direction is by command coding.)

K : Total cutting depth

X : Grinding range (Grinding direction is by command coding.)

F : Feed rate

P : Dwell time

L : Grindstone wear compensation number (Note 1)

Note 1) L is specified when performing continuous dressing.

Note 2) X, I, J and K commands are all incremental commands.

I(J)

P(Dwell)

 (F)

 P(Dwell)

 (F)

The continuous feed plane grinding cycle is made up from the following

sequence of 4 operations.

The operations from  up to  are repeated until the grindstone cutting

depth reaches the total cutting depth specified by address K.

 Dwell

 Grinding

 Dwell

 Grinding (return direction)

In case of single block, the operation from  to  are performed by one

cycle start.

NOTE

When J is not commanded, it is regarded as J=1.

Further, the J command effective only at the specified block.

It does not remain as modal information. (Irrespective of ”J”

of G75, G77, and G79)

13.14.3

Continuous Feed Plane

Grinding Cycle (G78)

Format
