Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 415

Descriptions
B–63522EN/02
27. DISPLAYING AND SETTING DATA
NC FUNCTION
387
: If no spindle information is recorded, spindle information is
automatically stored in flash ROM. On the screen, if there is a
difference between the spindle information in flash ROM and the
actual spindle information, the corresponding items are preceded by
*, as shown below. This allows you to determine whether the
configuration of connected units is changed. At this time, the spindle
information is read from flash ROM.
The spindle information recorded or stored in flash ROM can also be
edited.
See Chapter 10 ”Spindle” in the Maintenance Manual (B–63525EN).

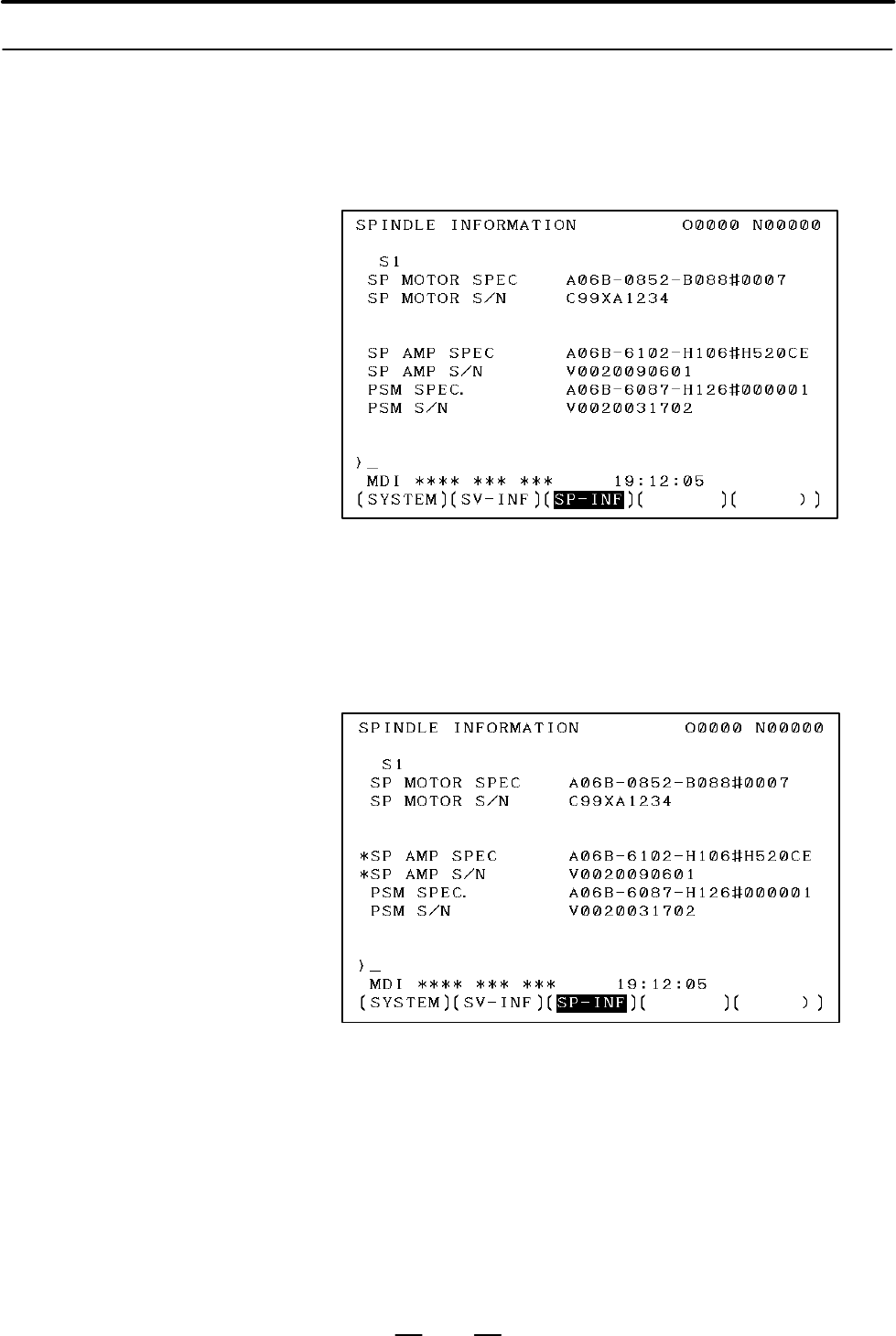

27.25.2
αi Spindle Information
Screen
Displaying the spindle ID
screen
Editing the spindle ID
screen
