B–63522EN/02

21. AXES CONTROL

NC FUNCTION

299

This function is a function for rotating a workpiece in sync with a rotating

tool, or to move a tool in sync with a rotating workpiece. With this

function, the high–precision machining of gears, threads, and the like can

be implemented. A desired synchronization ratio can be programmed. Up

to two sets of axes can be synchronized. A gear grinding machine can be

controlled, for instance, by using one axis for rotating the workpiece in

sync with the tool and another axis for performing dressing in sync with

the tool.

The specification method differs depending on the configuration of the

machine. For details, refer to the manual supplied by the machine tool

builder.

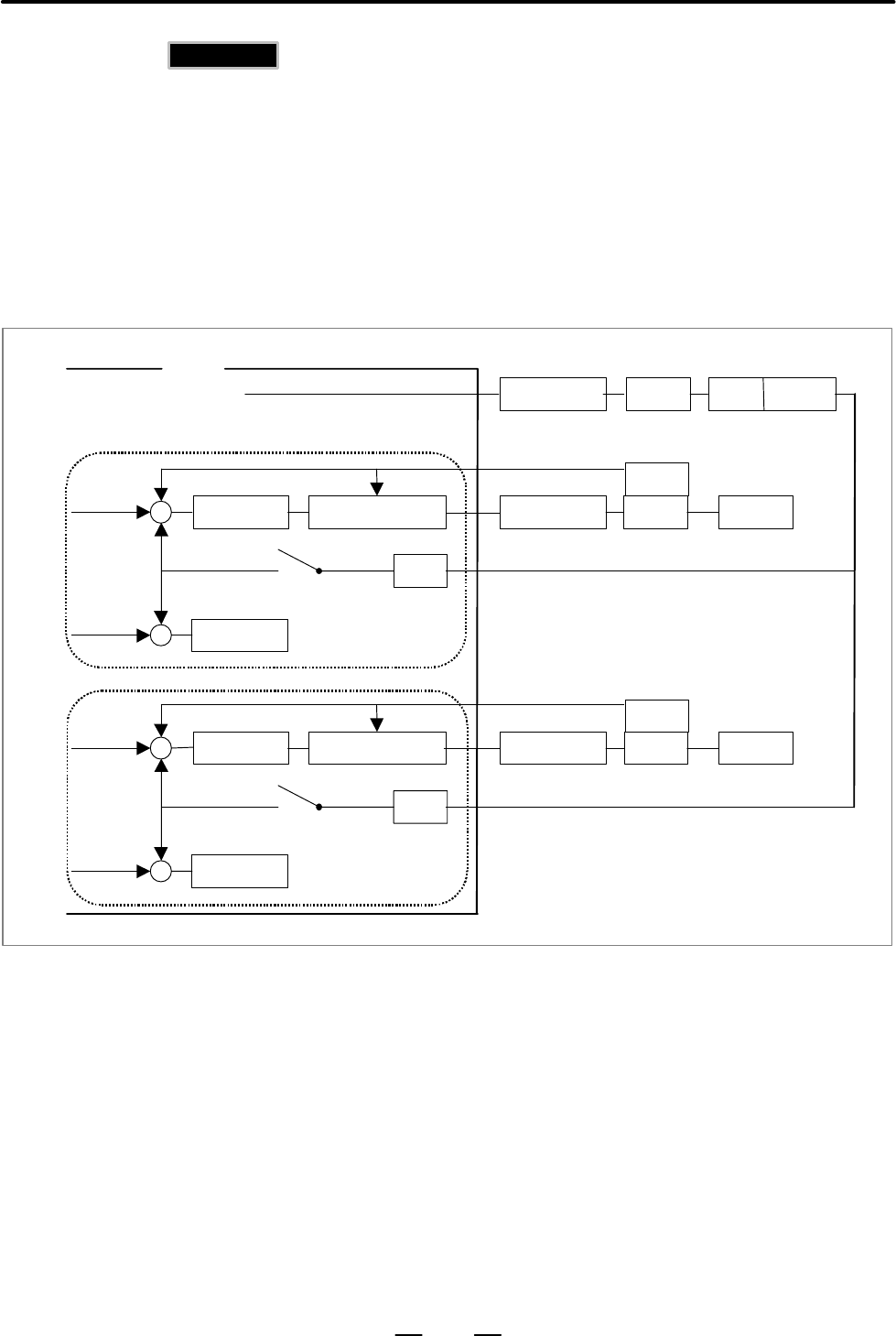

Fifth axis

Slave axis

Fourth axis

Dummy axis

Follow–up

Third axis

Slave axis

First axis X (omitted)

Second axis Y (omitted)

–

CNC

Spindle amplifier

Motor

Spindle

Spindle (master axis)

Fourth axis

Dummy axis

Follow–up

EGB

–

: Synchronization factor

EGB

Error counter

Synchronization switch

Motor

Detector

Speed/current control

Servo amplifier

Position control

Workpiece axis

C–axis

Dressing axis

–

Error counter

Synchronization switch

Speed/current control

Position control

Detector

: Synchronization factor

Motor

Detector

Servo amplifier

C–axis

Tool axis

21.21

TWO ELECTRONIC

GEAR BOX SETS (M

series)

M series
