Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 499

Descriptions

Page of 602

/ 602

B–63522EN/02

2. CONVERSATIONAL AUTOMATIC

PROGRAMMING FUNCTION FOR

LATHES

AUTOMATIC PROGRAMMING

FUNCTION

471

The major feature of the manual guide is that all operation types can be

specified on a single screen.

The single display screen of the manual guide consists of a status display

window for displaying data (such as current position and spindle rotation

speed) necessary for operations, graphic window for displaying entered

figures and drawings for animated simulation, and program window for

entering and displaying machining programs.

The soft key menu for selecting machining and manipulation types is

accompanied by icons representing the respective types, thus enabling the

operator to understand them easily.

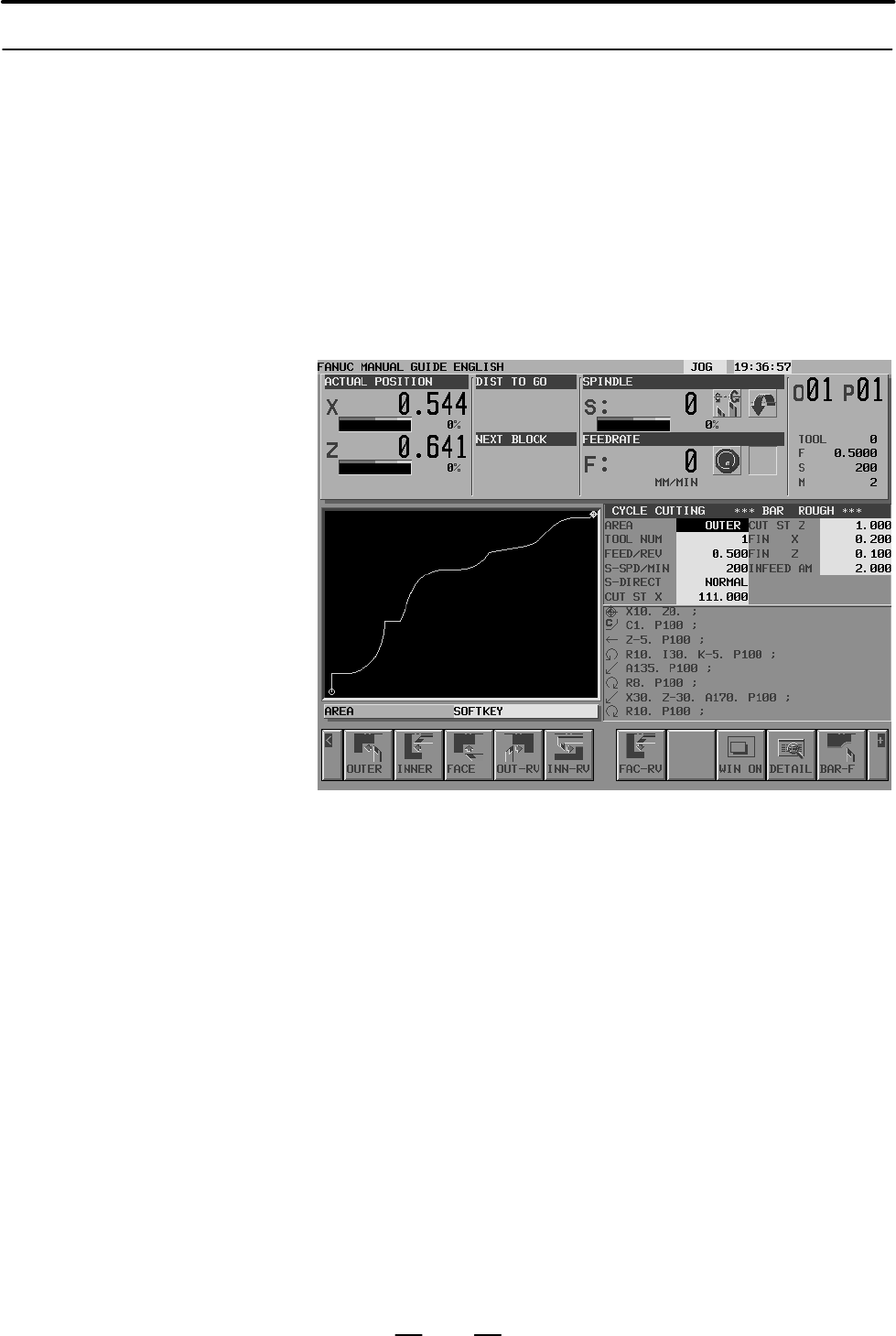

Screen example 1) Manual guide operation screen

2.3.4

Display Screen
