2. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
LATHES
AUTOMATIC PROGRAMMING
FUNCTION
462
D Y–axis milling (End face/Side face/Incline face *1)
D C–axis milling machining (End face/Side face)
D Balance cut (External diameter/Inside of external diameter (Residual
of external diameter)/Reverse of external diameter/Reverse of residual
of external diameter)
NOTE
1 These operations are enabled by the B–axis conversational
programming function that is an optional function.
Operations with Super CAPi T always begin with the basic menu screen
shown here. If the user cannot determine the next operation on a
conversational screen, the user can press the leftmost soft key
to
return the display to this basic menu screen.
EDIT
MODE
MEM
MODE
MEM
MODE
MEM
MODE
FANUC Super CAP T Ver. Z3.0
PREP A NEW PROCESS PROGRAM
12:05:57 MDI
END
1234 56
EDIT THE PROCESSING PROGRAM
PROCESSING SIMULATION
DIRECT OPERATION OF CAP PROGRAM
CONVERT TO NC PROGRAM
TOOL,CUTTING CONDITION DATA
TOOL OFFSET DATA
EDIT NC PROGRAM
POSITION
CAP. : HEAD–L
789
+
A program can be input easily by following the instructions displayed in
a window.
DELETE INSERT PROGRM WINDOW PROCES
END OFF EDIT
<
EDIT THE PROCESSING PROGRAM [CAP. : HEAD–L]
NO. =0194 NAME=BOZAI TEST–1
INTAL SET MATERIAL SHAPE OUT–DIA IN–DIA WORK–LNG MAX–S COOLANT
FC25 BAR 202.000 105.000 2500 ON
FINISHX FINISHZ E–REMOVL PROD–LNG
0.500 0.300 2.000 10.000
PROC(01) AREA HEAD TOOL–NO OUT–SPD FEED/REV CUT–DEPH T–CODE
BAR (R) OUTER END HEAD–L 101 80
PROC(01) AREA HEAD ROUGHNES TOOL–NO
BAR (F) OUTER END HEAD–L 5 101
START X= 0.000 Z= 0.000
↑ X= 48.000 Z= 0.000
CHAMFR X= 50.000 Z= 1.000
← X= 50.000 Z= 15.858
ROUND X= 55.858 Z= 22.929
X= 67.071 Z= 28.536
ROUND X= 70.000 Z= 32.072
← X= 70.000 Z= 35.567
ROUND X= 80.001 Z= 44.227
X= 96.536 Z= 49.000
OUTSIDE DIA.
MACHIN TOOL DETAIL PLOT
COND. DATA DATA

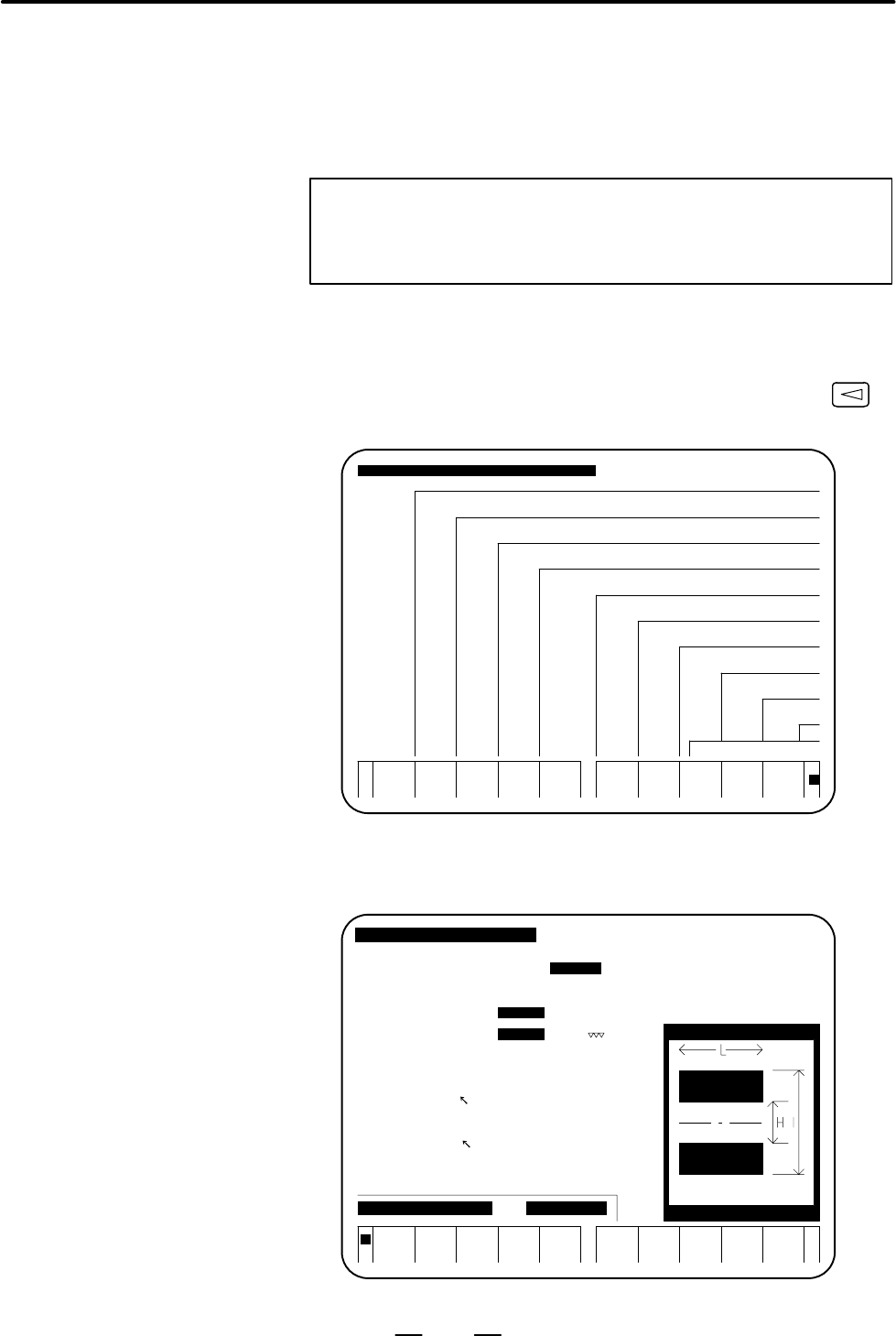

Basic menu screen
Conversational program
input screen
Previous page
Next page
