Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 487

Descriptions
B–63522EN/02
2. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
LATHES
AUTOMATIC PROGRAMMING
FUNCTION
459

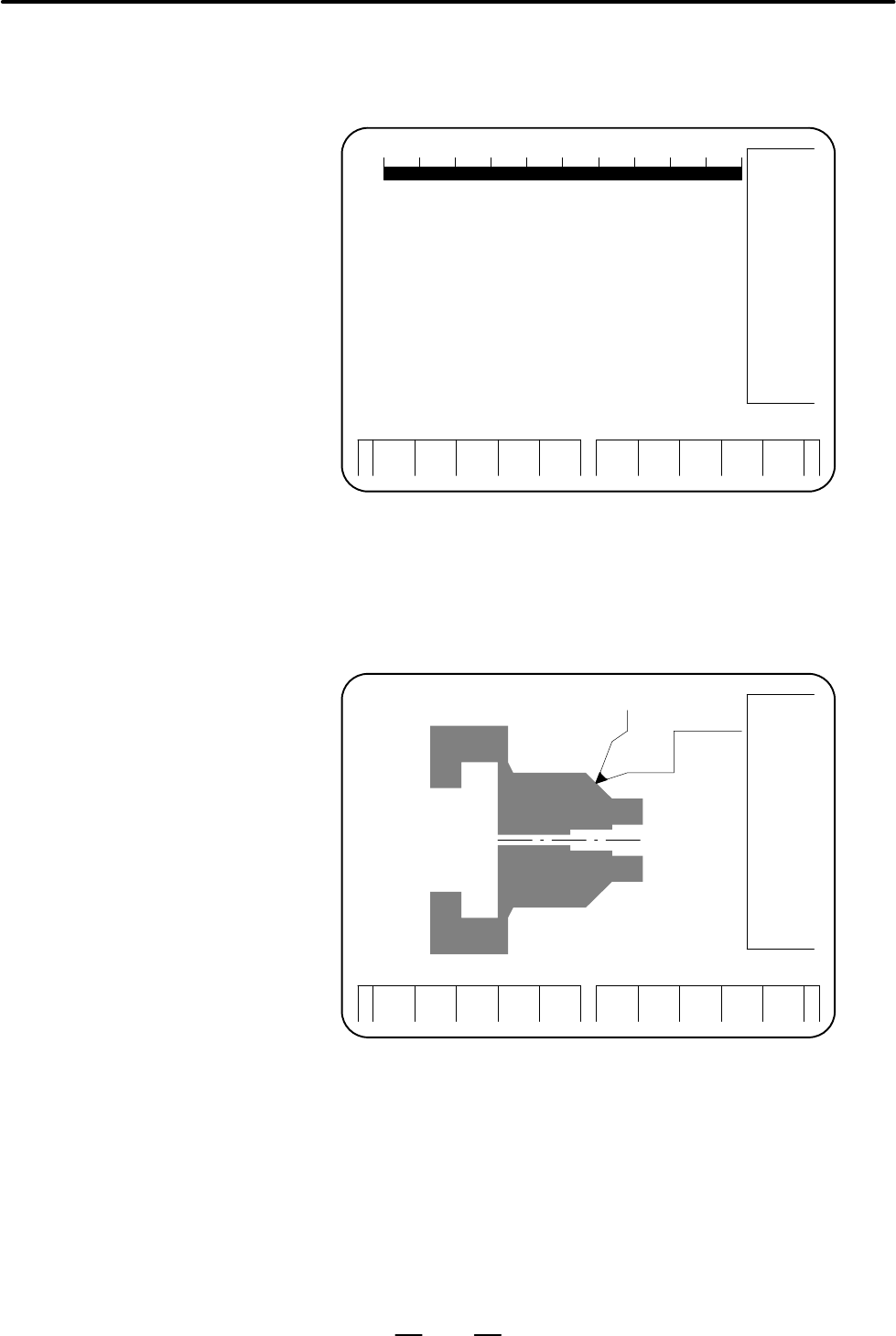

The cutting time and rapid traverse time are displayed for each machining
type. A bar chart is displayed so that the user can check the time allotment
at a glance.
ESCAPE
*** NC DATA PREPARATION *** PROCESS LIST 04–34
<–––> 0MIN 52SEC
NO. CUTTING RAPID
01 CENTER DRILLING 0.02 0.07
02 DRILLING 0.44 0.08
03 DRILLING 0.34 0.09
04 ROUGHING OF OUTER FIGURE 0.39 0.09
05 ROUGHING OF INNTER FIGURE 0.06 0.08
06 FINISHING OF OUTER FIGURE 0.18 0.07
07 FINISHING OF INNTER FIGURE 0.06 0.07
08 ROUGHING OF GROOVE 1.05 0.08
08 FINISHING OF GROOVE 0.41 0.07
10 GROOVING OR NECKING 0.16 0.08
11 THREADING 0.30 0.12
12 THREADING 0.06 0.12
13 CUT OFF 1.10 0.08
14 BAR FEED 0.11 0.09
*** PRESS SOFT KEY ***
METRIC
*NC SIDE*
O 0000
N 00000
X–AXIS
0.000
Z–AXIS
0.000
S 000000
T 000000
M 000000
PAGE
EJECT
The user can check the memory operation conditions on the screen. A
function for checking for interference between the chuck/tailstock and
tool is provided. An interference check can be made before actual
operation by performing memory operation with the machine lock set to
ON.
END
*** CHECKING OF NC DATA *** SCALE VALUE 0.922 10–01
START METRIC
*NC SIDE*
O 0010
N 00007
X–AXIS
70.000
Z–AXIS
-20.260
S 000000
T 001010
M 000003
CHECK ORIGI– TOOL PARAM–
START NAL PATH ETER
Machining time display
screen
Animated simulation
screen
