Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 449

Descriptions

Page of 602

/ 602

B–63522EN/02

31. SAFETY FUNCTIONS

NC FUNCTION

421

The designation of the forbidden area can be specified by parameters or

program.

The forbidden area can be changed for each workpiece. Selection

between inside or outside as the forbidden area is made by parameters.

The designation of the forbidden area can be specified by parameters or

program.

The forbidden area can be changed for each workpiece. Selection

between inside or outside as the forbidden area is made by parameters.

(X, Z)

(I, K)

(X, Z)

(I, K)

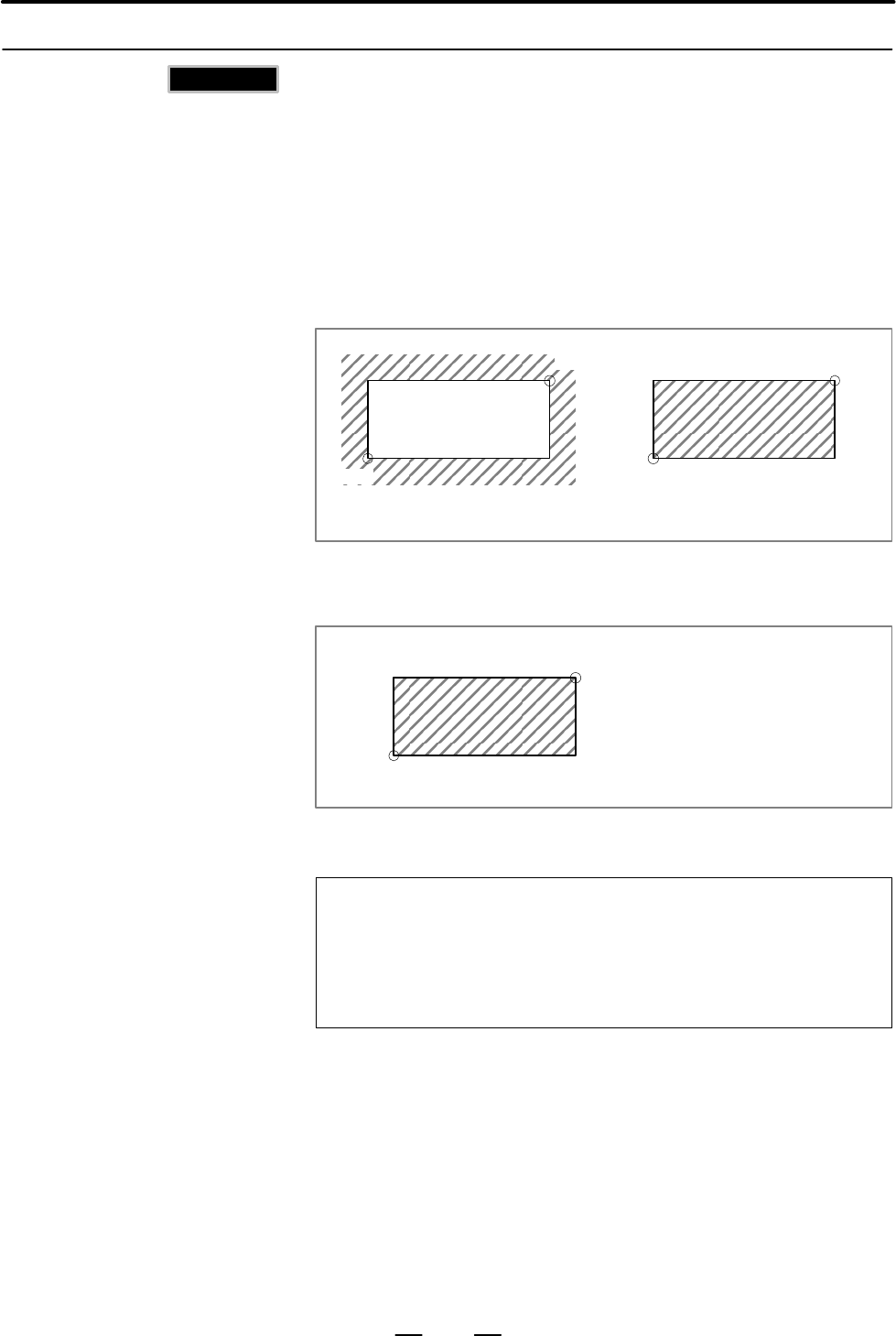

Inhibition area outside Inhibition area inside

Inside the area specified by parameters is the forbidden area.

, Z

,....)

, Z

,....)

This shaded area is the forbidden

area.

G22 X_ Z_ I_ K_ ;

On/off of stored stroke check 2 is commanded by program as follows:

G22 : Stored stroke check function on

G23 : Stored stroke check function off

31.2.5

Stored Stroke Checks

2 and 3 (G22, G23)

(T series)

T series

Stored stroke check 2

(G22, G23)

Stored stroke check 3

Format

Contents Summary of Series 16i/160i/160is/18i/180i/180is/ Descriptions

Page 1FANUC Series 16*/160*/160*s-MODEL B FANUC Series 18*/180*/180*s-MODEL B FANUC Series 21*/210*/210*s-MODEL B DESCRIPTIONS B-63522EN/02
Page 2• No part of this manual may be reproduced in any form. • All specifications and designs are subject to change without notice. The export of this product is subject to the authorization of the government of the country from where the product is exported. In this manual we have tried as much as possi
Page 3SAFETY PRECAUTIONS This section describes the safety precautions related to the use of CNC units. It is essential that these precautions be observed by users to ensure the safe operation of machines equipped with a CNC unit (all descriptions in this section assume this configuration). Note that some
Page 4SAFETY PRECAUTIONS B–63522EN/02 1 DEFINITION OF WARNING, CAUTION, AND NOTE This manual includes safety precautions for protecting the user and preventing damage to the machine. Precautions are classified into Warning and Caution according to their bearing on safety. Also, supplementary information i
Page 5B–63522EN/02 SAFETY PRECAUTIONS 2 GENERAL WARNINGS AND CAUTIONS WARNING 1. Never attempt to machine a workpiece without first checking the operation of the machine. Before starting a production run, ensure that the machine is operating correctly by performing a trial run using, for example, the sing
Page 6SAFETY PRECAUTIONS B–63522EN/02 WARNING 8. Some functions may have been implemented at the request of the machine–tool builder. When using such functions, refer to the manual supplied by the machine–tool builder for details of their use and any related cautions. CAUTION 1. Do not remove the internal
Page 7B–63522EN/02 SAFETY PRECAUTIONS 3 WARNINGS AND CAUTIONS RELATED TO PROGRAMMING This section covers the major safety precautions related to programming. Before attempting to perform programming, read the supplied operator’s manual and programming manual carefully such that you are fully familiar with
Page 8SAFETY PRECAUTIONS B–63522EN/02 WARNING 6. Stroke check After switching on the power, perform a manual reference position return as required. Stroke check is not possible before manual reference position return is performed. Note that when stroke check is disabled, an alarm is not issued even if a s
Page 9B–63522EN/02 SAFETY PRECAUTIONS 4 WARNINGS AND CAUTIONS RELATED TO HANDLING This section presents safety precautions related to the handling of machine tools. Before attempting to operate your machine, read the supplied operator’s manual and programming manual carefully, such that you are fully fami
Page 10SAFETY PRECAUTIONS B–63522EN/02 WARNING 7. Workpiece coordinate system shift Manual intervention, machine lock, or mirror imaging may shift the workpiece coordinate system. Before attempting to operate the machine under the control of a program, confirm the coordinate system carefully. If the machin
Page 11B–63522EN/02 SAFETY PRECAUTIONS 5 WARNINGS RELATED TO DAILY MAINTENANCE WARNING 1. Memory backup battery replacement When replacing the memory backup batteries, keep the power to the machine (CNC) turned on, and apply an emergency stop to the machine. Because this work is performed with the power on
Page 12SAFETY PRECAUTIONS B–63522EN/02 WARNING 2. Absolute pulse coder battery replacement When replacing the memory backup batteries, keep the power to the machine (CNC) turned on, and apply an emergency stop to the machine. Because this work is performed with the power on and the cabinet open, only those
Page 13B–63522EN/02 SAFETY PRECAUTIONS WARNING 3. Fuse replacement For some units, the chapter covering daily maintenance in the operator’s manual or programming manual describes the fuse replacement procedure. Before replacing a blown fuse, however, it is necessary to locate and remove the cause of the bl
Page 14
Page 15B–63522E/02 Table of Contents SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . s–1 I. GENERAL 1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2.
Page 16Table of Contents B–63522E/02 3.14 SPIRAL INTERPOLATION, CONICAL INTERPOLATION (M series) . . . . . . . . . . . . . . . . . . . . 65 3.15 NURBS INTERPOLATION (G06.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 3.16 3–DIMENSIONAL CIRCULAR INTER
Page 17B–63522E/02 Table of Contents 6.4 REFERENCE POSITION RETURN CHECK (G27) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 6.5 2ND, 3RD AND 4TH REFERENCE POSITION RETURN (G30) . . . . . . . . . . . . . . . . . . . . . . . . . . 91 6.6 FLOATING REFERENCE POSITION RETURN (G30.1
Page 18Table of Contents B–63522E/02 9.11 MULTI–SPINDLE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 9.12 SPINDLE SYNCHRONIZATION CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 9.13 SPIND
Page 19B–63522E/02 Table of Contents 13.2.3 Three–dimensional Rigid Tapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 13.2.4 Other Rigid Tapping Functions (M series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 20Table of Contents B–63522E/02 14.8 TOOL COMPENSATION MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203 14.8.1 Tool Compensation Memory (M series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Page 21B–63522E/02 Table of Contents 17.10 TOOL COMPENSATION VALUE MEASURED VALUE DIRECT INPUT B (T series) . . . . . . . . 243 17.11 COUNT INPUT OF TOOL OFFSET VALUES (T series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247 17.12 DIRECT INPUT OF WORKPIECE ZERO POINT OFFSET VALUE MEAS
Page 22Table of Contents B–63522E/02 21.2 MECHANICAL HANDLE FEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284 21.3 SERVO OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 23B–63522E/02 Table of Contents 23.8 TOOL AXIS DIRECTION HANDLE FEED AND TOOL AXIS DIRECTION HANDLE FEED B (M series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320 23.8.1 Tool Axis Direction Handle Feed . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 24Table of Contents B–63522E/02 26.SETTING AND DISPLAY UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337 26.1 SETTING AND DISPLAY UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338 26.1.1 7.2I/8.4I L
Page 25B–63522E/02 Table of Contents 27.25.1 αi Servo Information Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386 27.25.2 αi Spindle Information Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 26Table of Contents B–63522E/02 31.1 EMERGENCY STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417 31.2 OVERTRAVEL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 27B–63522E/02 Table of Contents 33.1 EXTERNAL TOOL COMPENSATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435 33.2 EXTERNAL PROGRAM NUMBER SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435 33.3 ONE–TOUCH MACRO C
Page 28Table of Contents B–63522E/02 3.1.4 Other Optional Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480 3.2 MANUAL GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
