1. Fanuc
  2. Series 16i/160i/160is/18i/180i/180is/

Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 507

Descriptions
B–63522EN/02
3. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
MACHINING CENTERS
AUTOMATIC PROGRAMMING
FUNCTION
479

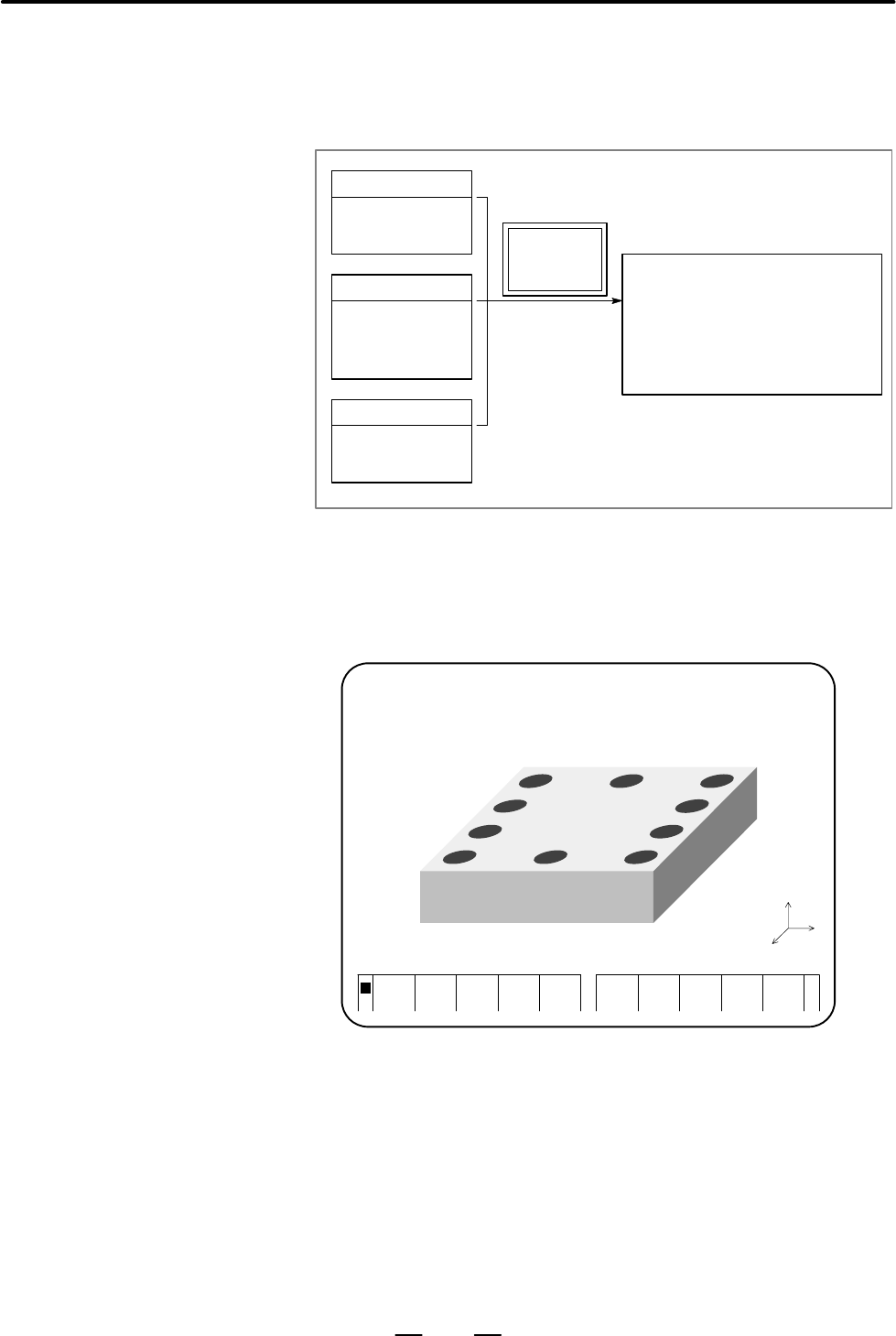

The machining order can be changed automatically to reduce the number
of times tools are changed. The machining order can also be specified
manually.
With these functions, the time required for machining can be reduced.
Process (1)
φ5 center drilling
φ10 drilling
φ5 center drilling
φ6.8 drilling
φM8 tapping
φ5 center drilling
φ7 drilling
Optimized program
φ5 center drilling of Process(1)
φ5 center drilling of Process(2)
φ5 center drilling of Process(3)
φ10 drilling of Process(1)
φ6.8 drilling of Process(2)
φM8 tapping of Process(2)
φ7 drilling of Process(3)
Automatic
process
alteration
Process (2)
Process (3)
Machining profiles, tool figures, and tool paths can be drawn in the
isometric mode, biplane drawing mode, and so forth.
In addition, an animated simulation function is provided to display a solid
drawing of the workpiece figure to be machined.
PATH GRAPHIC (EXECUTION)
X 0.000
Y 0.000
Z 0.000
MEM **** *** *** 16:16:05
PATH GRAPH ROTA–
GRAPH PARAM TION
<
01234 N01000
Z
Y
X
3-PLAN DRAW
START
Process optimization
edit function
Full graphic function
